Front: SRAM Guide RE, Rear: SRAM Guide RE

Fox Rhythm 34E Performance Elite 29 Boost 110 140mm

Aluminum Optimum G04 130mm, Handcrafted in Canada / Fabriqué à la main au Canada

Front: V2 Comp Wide db Tubeless ready | 36mm inner, Rear: V2 Comp Wide db Tubeless ready | 36mm inner

Front: Maxxis Minion DHF 29x2.6" 3C MaxxTerra Exo+ TR, Rear: Maxxis Minion DHRII 29x2.60" 3C MaxxTerra Exo+ TR

EP brings responsive handling and a wickedly fun feel to the rolling, rugged terrain it’s hardwired to explore. Rip quick, technical trails with a modern geometry that combines steep seat angles for climbing with slacker head angles for confidence inspiring cornering and control. And when it’s time to flip the switch into ebike assist, EP makes climbing fast and effortlessly fun thanks to its efficient, powerful Shimano e-engine that integrates seamlessly into the frame. EP features a Canadian made 6066-T6 Aluminum frame, 130mm trail-taming rear travel, and molded frame, motor, and battery protection. Whether it’s woodsy laps with friends or a week of trail time with the family, this lively bike lives for it.

Devinci EP NX 11S

SM High

SM Low

MD High

MD Low

LG High

LG Low

XL High

XL Low

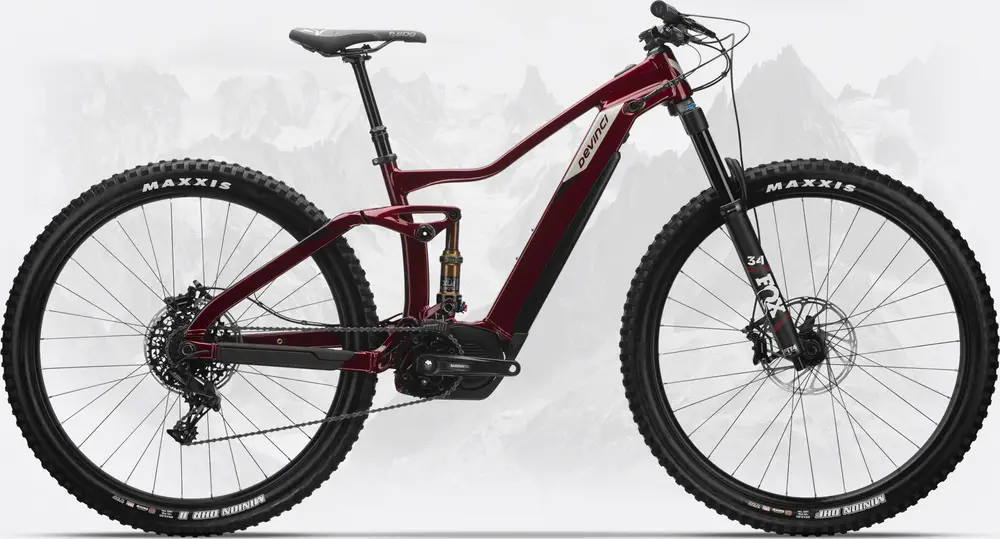

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.

Weight	54.1 lbs
Frame	Aluminum
Suspension	Full, 130 / 140mm
Fork	Fox
Shock	Fox Float DPS Performance
Wheels	29″ Aluminum
Drivetrain	1 × 11
Groupset	GX, NX
Motor	Shimano 250W 70Nm mid-drive
Battery	Shimano 504Wh
Brakes	SRAM Guide RE Hydraulic Disc
Seatpost	Dropper

Frame	Aluminum Optimum G04 130mm, Handcrafted in Canada / Fabriqué à la main au Canada
Fork	Fox Rhythm 34E Performance Elite 29 Boost 110 140mm Travel: 140mm Spring Type: Air
Shock	Fox Float DPS Performance 185x47.5 Travel: 130mm
Headset	FSA Orbit 1.5 Zero Stack
Stem	V2 Pro 35 \| 50mm
Handlebar	V2 Pro 35 Riserbar15mm \| 780mm
Saddle	SDG Radar
Seatpost	TranzX Dropper 31.6mm 1xLever Type: Dropper
Grips	Devinci Performance w/lock-on

Rear Derailleur	SRAM NX 11s
Crank	Shimano E8000
Shifters	SRAM GX 11s Single Click
Cassette	SRAM PG1130-11s 11-42T
Chain	Shimano HG601 11s
Chain Guide	E13 Chain Guide for Steps
Brakes	Front: SRAM Guide RE, Rear: SRAM Guide RE Type: SRAM Guide RE Hydraulic Disc

Rims	Front: V2 Comp Wide db Tubeless ready \| 36mm inner, Rear: V2 Comp Wide db Tubeless ready \| 36mm inner
Spokes	Stainless 14G w/Nylok
Front Hub	SRAM MTH716 TA 15x110
Rear Hub	SRAM MTH746 TA 12x148 BOOST
Tires	Front: Maxxis Minion DHF 29x2.6" 3C MaxxTerra Exo+ TR, Rear: Maxxis Minion DHRII 29x2.60" 3C MaxxTerra Exo+ TR
Disc Rotors	SRAM Centerline 200mm

Motor	Shimano STEPS E8000 250W
Battery	Shimano STEPS E8035 504Wh Lithium-ion
Display	Shimano STEPS SC-E8000

2020 DevinciEP NX 11S

2020 Devinci
EP NX 11S
