Front: Shimano MT-201, Rear: Shimano MT-201

Aluminum Optimum S03, Designed & Assembled in Canada / Conçu et assemblé au Canada

Front: V2 Comp db | 17mm inner, Rear: V2 Comp db | 17mm inner

The one-size-fits-all Griffin is Devinci’s family-friendly e-bike powered by Shimano’s intuitive STEPS system. Inspired by global bike share programs like those in New York, Montreal, and London, Griffins are hardwired to explore while using less energy in the process. A superior long-distance commuter or an everyday ally for weekend excursions with family and friends, these lightweight bikes are agile, manoeuvrable, and have disc brakes for determined stopping power. Additional features include internal cable routing for effortless transport and protection from elements; fenders and a rear rack to hold the rechargeable lithium-ion battery; and the appreciated ability to travel more than 100 kilometres in eco-mode. *Image may not show accurate specifications. Please refer to specifications below. *

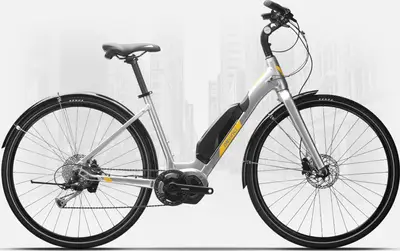

Devinci E-Griffin

One Size

A 700c aluminum frame comfort e-bike with mid-range components and shimano hydraulic disc brakes.

Weight	44.3 lbs
Frame	Aluminum
Wheels	700c Aluminum
Drivetrain	1 × 9
Groupset	Alivio
Motor	Shimano 250W 60Nm mid-drive
Battery	Shimano 418Wh
Brakes	Shimano Hydraulic Disc

Frame	Aluminum Optimum S03, Designed & Assembled in Canada / Conçu et assemblé au Canada BB Standard: STEPS, Press Fit
Bottom Bracket	STEPS, press-fit
Headset	FSA Orbit 1.5 Zero Stack
Stem	TranzX ajustable 25.4mm \| 110mm
Handlebar	Alloy City 30mm Riserbar \| 640mm
Saddle	Devinci ATC
Seatpost	V2 Comp 30.9mm Type: Rigid
Pedals	Wellgo M085
Grips	Velo Ergo Comfort

Rear Derailleur	Shimano Alivio T4000 9s
Crank	Shimano E6100 STEPS
Shifters	Shimano Alivio M4000
Cassette	Shimano HG400 9s 11-32T
Chain	Shimano E6070 9s
Brakes	Front: Shimano MT-201, Rear: Shimano MT-201 Type: Shimano Hydraulic Disc

Rims	Front: V2 Comp db \| 17mm inner, Rear: V2 Comp db \| 17mm inner
Spokes	Stainless 14G w/Nylok
Front Hub	Formula Disc sealed centerlock
Rear Hub	Formula Disc sealed Centerlock
Tires	Kenda Kwick Trax 700x38c
Disc Rotors	Shimano RT30 160mm Centerlock

Motor	Shimano STEPS E6100 250W
Battery	Shimano STEPS E8014 418Wh Lithium-ion
Display	Shimano STEPS SC-E6100

2020 DevinciE-Griffin

2020 Devinci
E-Griffin
