Black / Grey

Magura MT5, 4-piston brakes, rotors Magura Storm HC front 203mm/rear 180mm

Marzocchi Z1 29", Grip, Boost, travel 170mm, axle 15mm, tapered

matt Black/Grey, Carbon Fiber+AL 6061-T6, travel 160mm

X-Fusion H3C RCP, 205x65mm, Trunnion, coil 450 (M) / 500 (L)

Dartmoor Thunder 29", 32H, F/V, tubeless ready

X-Fusion Manic 170mm(L)/150mm(M), Ø30.9mm

Front: Vittoria Mazza 29x2.6, Foldable, Trail anthracite-black, G2.0, Rear: Vittoria Mazza 29x2.6, Foldable, Trail anthracite-black, G2.0

The Thunderbird carbon Evo version is a perfect combination of race nature and carefully chosen spec, which makes this bike both high-end and budget-friendly. Just go to the trails, choose the line, and release the brakes. The legendary Marzocchi Z1 fork and new X-Fusion H3C shock will give you more control on bumpy sections, and 4-piston brakes will give you more confidence when pushing your limits.
MAIN FEATURES
170/160mm front/rear suspension travel

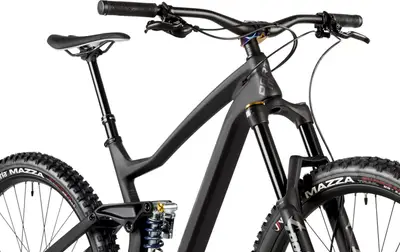

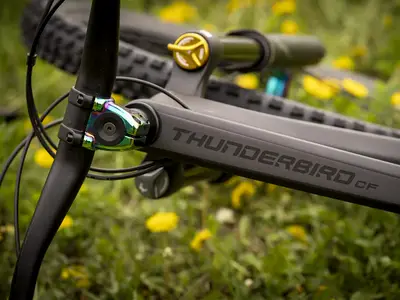

Dartmoor Thunderbird carbon fiber frame with 160mm travel, boost rear end, and SRAM UDH hanger

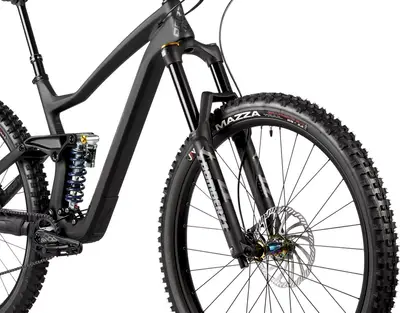

Legendary Marzocchi Z1 170mm travel fork, with 36mm upper legs and Grip damper

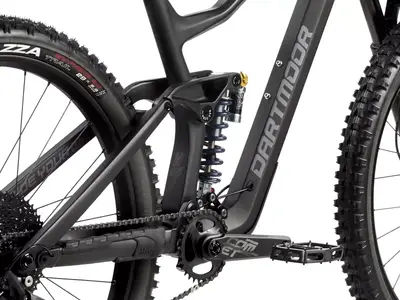

X-Fusion H3C RCP coil shock with 450 lbs coil for M-size and 500 lbs coil for L-size

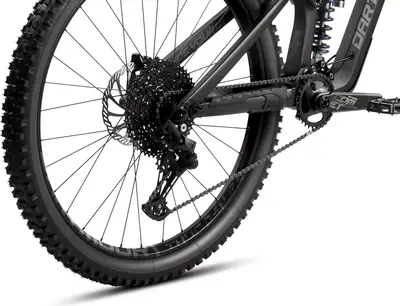

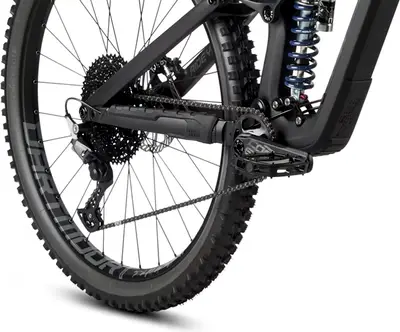

11-speed Shimano Deore 5100 drivetrain with a wide range 11-51T cassette

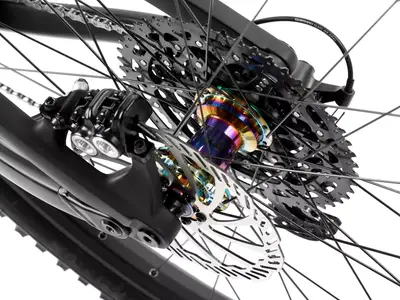

Iconic Magura MT5 brakes with a 4-piston caliper, 203mm rotor on the front, and 180mm at the rear
Oversized 35mm cockpit with all-new 810mm wide Viper handlebar and short Viper stem
Tubeless-ready Vittoria Mazza 29x2.6 tires with Graphene 2.0

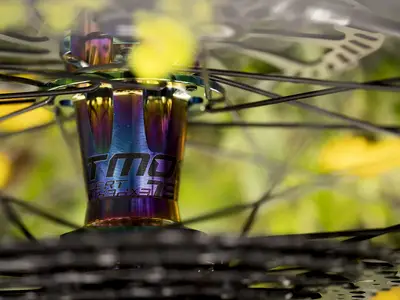

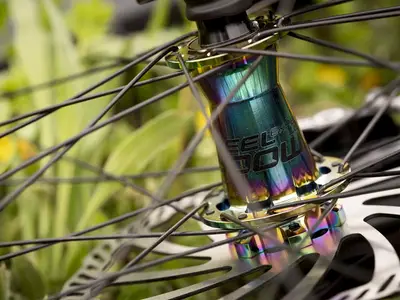

High-end enduro wheelsets with Dartmoor Thunder aluminum rims and extra sealed Reel Expert hubs

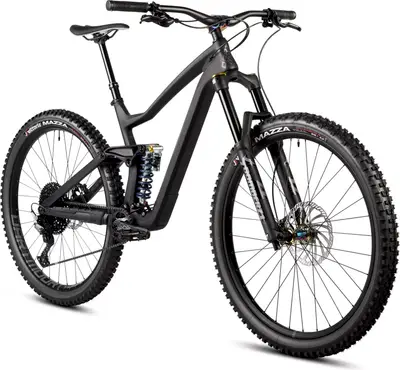

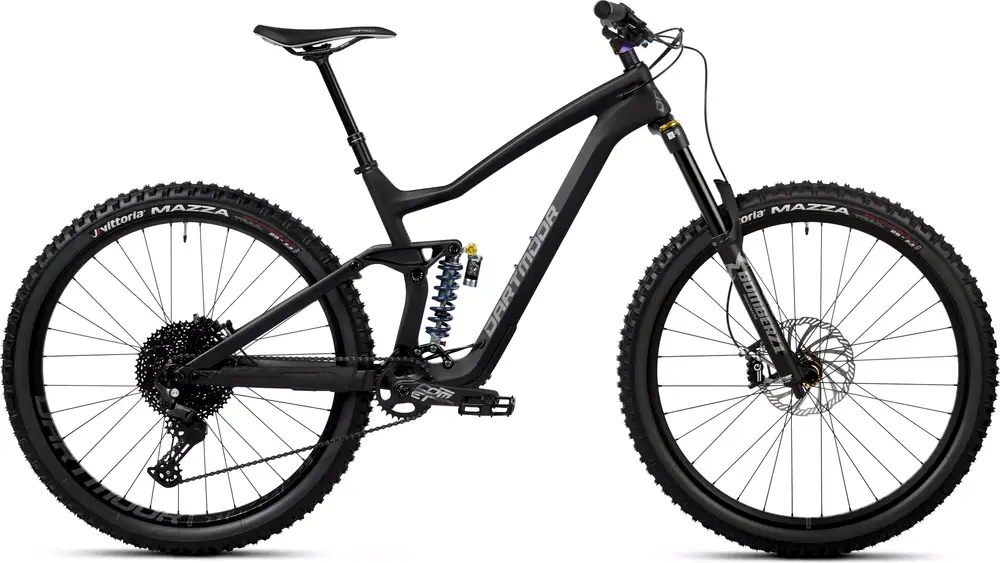

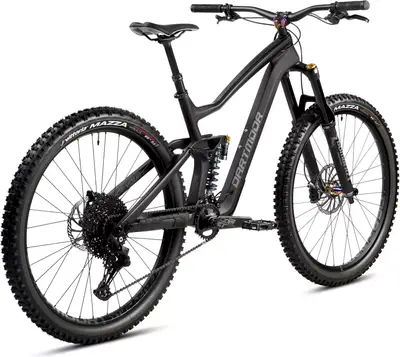

Dartmoor THUNDERBIRD CF EVO

A 29″ carbon frame full suspension enduro bike with upper mid-range components.

Weight	35.5 lbs
Frame	Carbon
Suspension	Full, 160 / 170mm
Fork	Marzocchi Bomber Z1
Shock	X-Fusion
Wheels	29″ Aluminum
Drivetrain	1 × 11
Groupset	Deore
Brakes	Magura MT5 Hydraulic Disc
Seatpost	Dropper

Frame	matt Black/Grey, Carbon Fiber+AL 6061-T6, travel 160mm Hanger Standard: UDH Color: Black / Grey
Fork	Marzocchi Z1 29", Grip, Boost, travel 170mm, axle 15mm, tapered Travel: 170mm Spring Type: Air
Shock	X-Fusion H3C RCP, 205x65mm, Trunnion, coil 450 (M) / 500 (L) Travel: 160mm
Stem	Dartmoor Viper, Ø35mm
Handlebar	Dartmoor Viper 810mm, Ø35mm
Saddle	Dartmoor Leaf Pro
Seatpost	X-Fusion Manic 170mm(L)/150mm(M), Ø30.9mm Type: Dropper
Pedals	Dartmoor Vibe
Grips	Dartmoor Maze

Rear Derailleur	Shimano Deore RD-M5100 1x11
Crank	FSA Comet Heavy Duty, 175mm(L)/170mm(M)
Shifters	Shimano Deore SL-M5100-R 11-speed
Cassette	Sunrace CSMS7, 11-51T
Chain	Sunrace CN11A Black
Brakes	Magura MT5, 4-piston brakes, rotors Magura Storm HC front 203mm/rear 180mm Type: Magura MT5 Hydraulic Disc

Rims	Dartmoor Thunder 29", 32H, F/V, tubeless ready
Front Hub	Dartmoor Reel Expert Boost 110x15, 32H
Rear Hub	Dartmoor Reel Expert Boost 148x12, 32H
Tires	Front: Vittoria Mazza 29x2.6, Foldable, Trail anthracite-black, G2.0, Rear: Vittoria Mazza 29x2.6, Foldable, Trail anthracite-black, G2.0
