Black / Grey

Green Olive

Shimano MT-400, 2-piston brakes, rotors 180mm

X-Fusion RC32 29", Boost, travel 130mm, axle 15mm, tapered

matt Black/Grey or matt Green Olive, AL 6061-T6

Microshift AdventX RD-M6205GM (with clutch) 1x10

Dartmoor Raptor 29", 32H, F/V, tubeless ready

X-Fusion Manic, travel 170mm(XL,L)/150mm(M)/125mm(S), Ø30.9mm

Front: Vee Tire Crown Gem 29x2.3, Wire, MPC, Rear: Vee Tire Crown Gem 29x2.3, Wire, MPC

One of the most versatile bikes in the Dartmoor lineup. It is the perfect choice for riders looking for everything best in mountain biking, like downhills, uphills, trail discovering, jumps, and even pump track or cornering. Bigger 29-inch wheels will be a better choice for riders choosing longer trips and trail riding. Evo versions of Primals are equipped with well-chosen medium spec components like an air front suspension fork with rebound control and a dropper seat post.
MAIN FEATURES

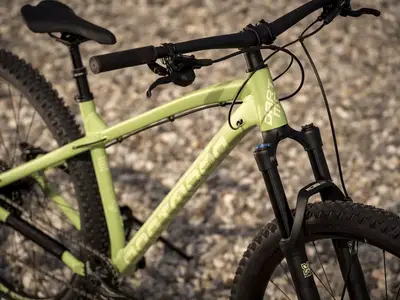

Next generation of Primal frame with redesigned tubes, updated geometry, and SRAM UDH hanger

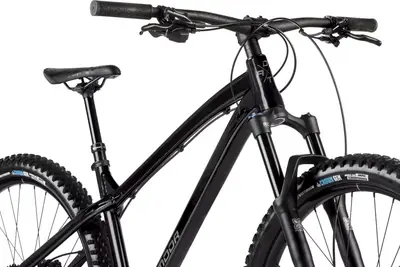

Lightweight X-Fusion RC32 fork with RC damper, aluminum stanchions, Boost standard, and 130mm travel

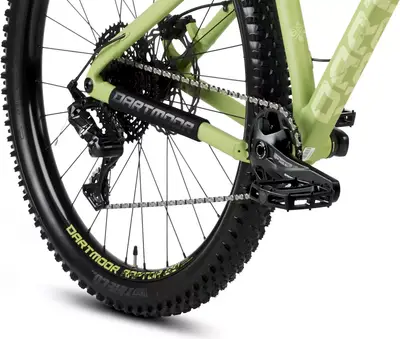

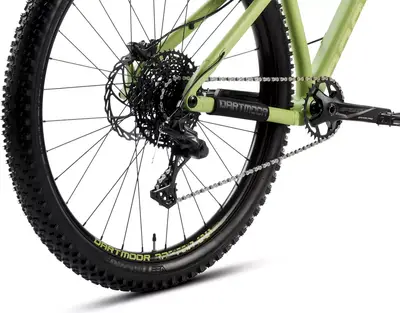

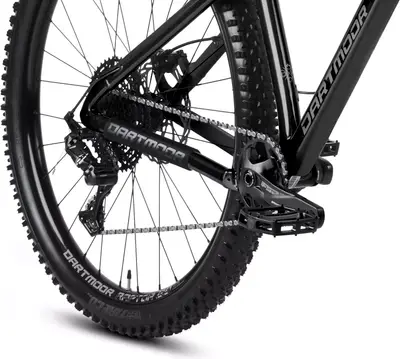

Bombproof Microshift Advent X 10-speed derailleur with clutch and 11-48T cassette
X-Fusion Manic dropper post
Tubeless-ready Raptor rims with 30mm inner width
31.8mm cockpit with our new, compact Viper stem

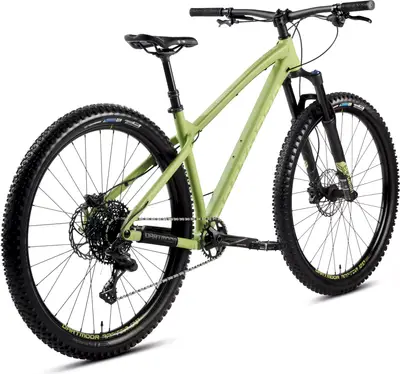

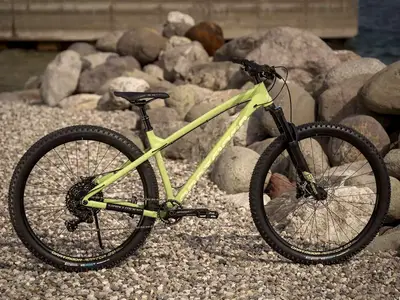

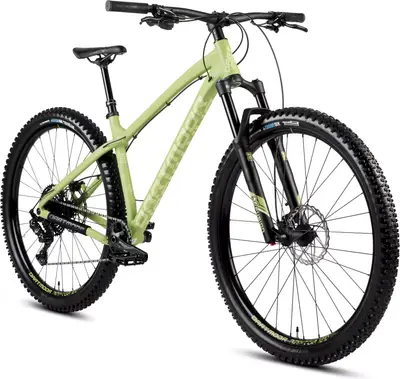

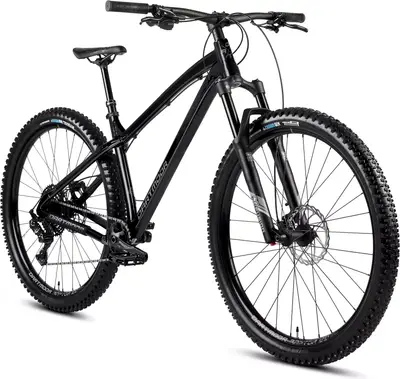

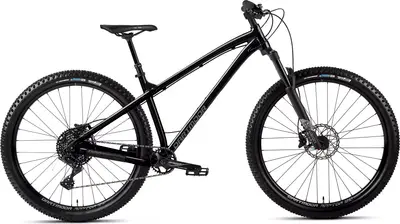

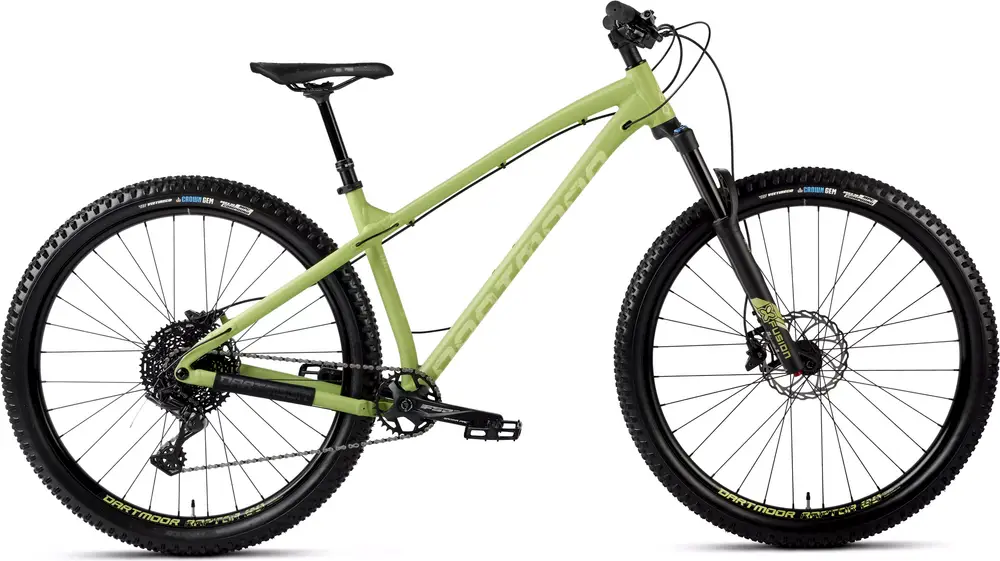

Dartmoor PRIMAL EVO 29

A 29″ aluminum frame hardtail trail bike with upper mid-range components.

Weight	31.7 lbs
Frame	Aluminum
Suspension	Hardtail, 130mm
Fork	X-Fusion RC32
Wheels	29″ Aluminum
Drivetrain	1 × 10
Groupset	microSHIFT Advent X
Brakes	Shimano Hydraulic Disc
Seatpost	Dropper

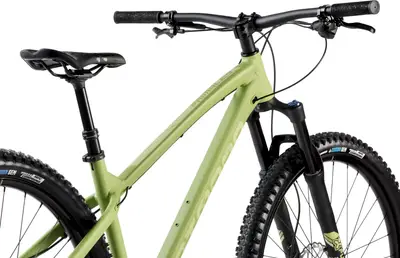

Frame	matt Black/Grey or matt Green Olive, AL 6061-T6 Hanger Standard: UDH Colors: Black / Grey; Green Olive

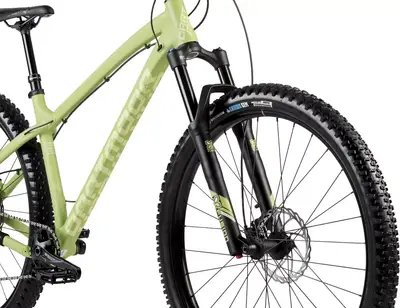

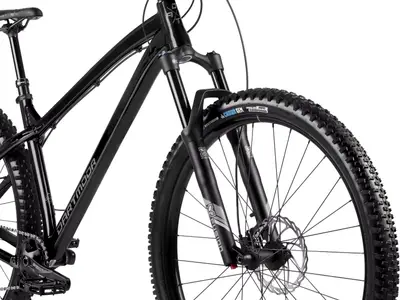

Fork	X-Fusion RC32 29", Boost, travel 130mm, axle 15mm, tapered Travel: 130mm Spring Type: Air
Stem	Dartmoor Viper, Ø31.8mm
Handlebar	Dartmoor Tornado Low 780mm, Ø31.8mm
Saddle	Dartmoor Ferns OEM
Seatpost	X-Fusion Manic, travel 170mm(XL,L)/150mm(M)/125mm(S), Ø30.9mm Type: Dropper
Pedals	Dartmoor Vibe
Grips	Dartmoor Maze Lite

Rear Derailleur	Microshift AdventX RD-M6205GM (with clutch) 1x10

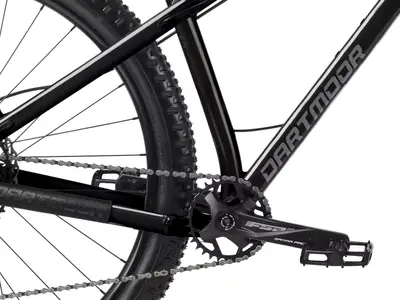

Crank	FSA Gamma Pro, 175mm(XL,L)/170mm(M,S)
Shifters	Microshift AdventX SL-M9605-R, 10-speed
Cassette	Microshift CS-H104, 11-48T
Chain	KMC X10
Brakes	Shimano MT-400, 2-piston brakes, rotors 180mm Type: Shimano Hydraulic Disc

Rims	Dartmoor Raptor 29", 32H, F/V, tubeless ready
Front Hub	Dartmoor Reel Boost 110x15mm, 32H
Rear Hub	Dartmoor Reel Boost 148x12mm, 32H
Tires	Front: Vee Tire Crown Gem 29x2.3, Wire, MPC, Rear: Vee Tire Crown Gem 29x2.3, Wire, MPC

2026 DartmoorPRIMAL EVO 29

2026 Dartmoor
PRIMAL EVO 29
