Military Green

X-Fusion Mig Air 34 RC 27.5", travel 140mm, axle 15mm, 1.5 tapered

Dartmoor Reel Boost 148x12mm, 32H, Shimano HG freehub

Dartmoor Raptor 27.5", 32H, F/V, tubeless ready

Front: Kenda Nevegal 27.5x2.4, 30 TPI, Wire, Rear: Kenda Nevegal 27.5x2.4, 30 TPI, Wire

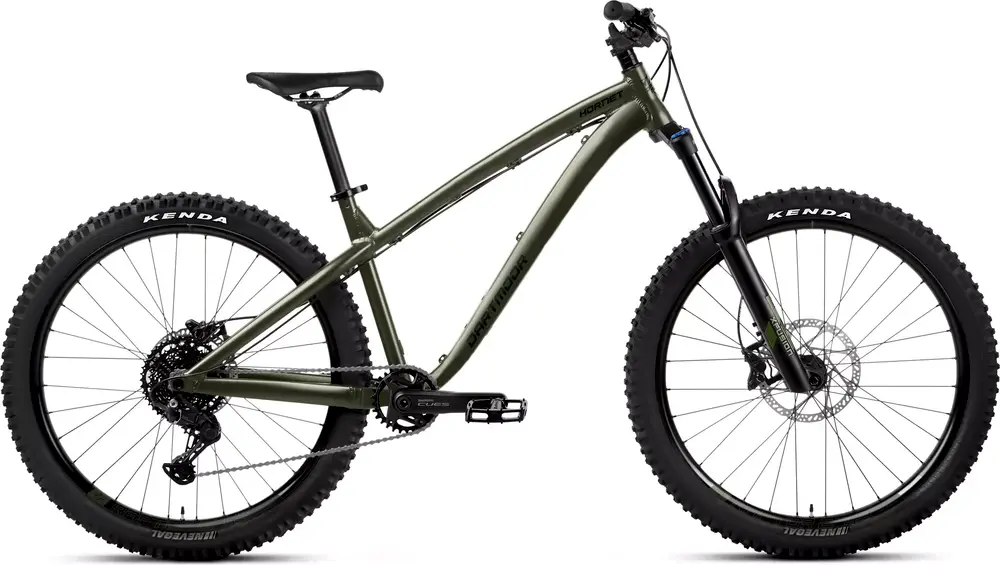

Meet the all-new Hornet Trail - a tough little hardtail built for young riders who want more than just cruising around the neighborhood. Rolling on 27.5-inch wheels front and rear, it’s made for playful trail rides, first jumps, and exploring real mountain terrain. The Military Green matt finish gives it a rugged look that matches its ride.
The frame carries the legendary Hornet DNA - strong and confidence-inspiring - but this version is tuned for a lighter, more agile trail feel. Up front, the X-Fusion Mig 34 Air RC fork with 140mm of travel and sturdy 34mm stanchions delivers smooth, responsive control. The Shimano Cues 9-speed drivetrain with an 11-46T cassette offers reliable shifting and a wide enough range for climbs and descents alike.
Kenda Nevegal tires mounted on Dartmoor Raptor rims keep traction dialed in, while Tektro hydraulic brakes deliver consistent stopping power in all conditions. The cockpit features a Dartmoor Viper 31.8mm stem paired with the 780mm-wide Tornado Hi handlebar.
Whether you’re hitting local dirt jumps or chasing your first trail adventures, the Hornet Trail is built to ignite your mountain biking passion - tough, playful, and ready for fun.
MAIN FEATURES
Bombproof Hornet frame in new Military Green matt finish designed for jumps and trail riding
27.5-inch wheel setup for playful trail performance

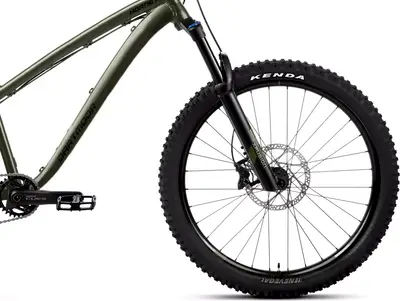

X-Fusion Mig 34 Air RC fork with 140mm travel and 34mm stanchions

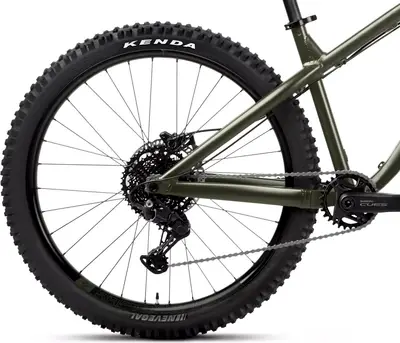

Shimano Cues 9-speed drivetrain with 11-46T cassette
Reliable Dartmoor Raptor rims with Kenda Nevegal tires for grip on dirt and trail
Hydraulic Tektro brakes for reliable stopping power
31.8mm Dartmoor Viper stem with 780mm-wide Tornado Hi handlebar

Dartmoor HORNET TRAIL

A 27.5″ aluminum frame hardtail trail bike with upper mid-range components.

Weight	32.6 lbs
Frame	Aluminum
Suspension	Hardtail, 140mm
Fork	X-Fusion MIG
Wheels	27.5″ Aluminum
Drivetrain	1 × 9
Groupset	CUES
Brakes	Tektro Hydraulic Disc

Frame	matt Military Green, AL 6061-T6 Color: Military Green
Fork	X-Fusion Mig Air 34 RC 27.5", travel 140mm, axle 15mm, 1.5 tapered Travel: 140mm Spring Type: Air
Stem	Dartmoor Viper, Ø31.8mm
Handlebar	Dartmoor Tornado Hi 780mm, Ø31.8mm
Saddle	Dartmoor Trail V.2
Seatpost	alu 6061, 30.9x400mm (L)/350mm (M,S) Type: Rigid
Pedals	Dartmoor Vibe
Grips	Dartmoor Maze Lite

Rear Derailleur	Shimano Cues U4000 1x9
Crank	Shimano Cues U6000, 170mm
Shifters	Shimano Cues U4000, 9-speed
Cassette	Shimano Cues LG300, 11-46T
Chain	Shimano Cues LG500
Brakes	Tektro HD-M280, rotors front/rear 180mm Type: Tektro Hydraulic Disc

Rims	Dartmoor Raptor 27.5", 32H, F/V, tubeless ready
Front Hub	Dartmoor Reel Boost 110x15mm, 32H
Rear Hub	Dartmoor Reel Boost 148x12mm, 32H, Shimano HG freehub
Tires	Front: Kenda Nevegal 27.5x2.4, 30 TPI, Wire, Rear: Kenda Nevegal 27.5x2.4, 30 TPI, Wire

2026 DartmoorHORNET TRAIL

2026 Dartmoor
HORNET TRAIL
