Black / Grey

Magura MT5 eStop, 4-piston brakes, rotors front 203mm/rear 180mm

Fox 38 Performance eMTB+ 29", Grip, Boost, travel 170mm, crown 68mm, axle 15mm, tapered

matt Black/Grey, Carbon Fiber, travel 160mm

Dartmoor Reel Expert E-Bike Boost 148x12, 32H

Fox Float X Performance Elite, 205x65mm, Trunnion

Dartmoor Shield Wide 29", 32H, F/V, tubeless ready

X-Fusion Manic 170mm(L)/150mm(M)/125mm(S), Ø31.6mm

Front: Maxxis Minion DHF 29x2.5, WT, Foldable, 3C/Maxx Grip/Exo, Rear: Maxxis Minion DHF, 29x2.5, WT, Foldable, 3C/Maxx Terra/Exo Plus

Feel the power and forget about limits. Forget about anything – just focus on the trail! With an all-new Dartmoor E-Thunderbird powered by the Shimano EP8 engine, nothing can stop you. No more steep sections, no more impossible climbs. With this 29-inch wheeled machine equipped with 170mm front travel and 160mm rear travel, you will #ShredLikeThunder.
E-Thunderbird has proven its worth in racing! Marcin Motyka won the 2024 MTB E-Bike Championship in Ischgl, Austria (and multiple national races around Poland, the Czech Republic, and Slovakia). If you prefer a romantic approach to exploration, our team riders often use E-Thunderbird for daily rides or weekend endeavors like this one to the ▶ JULIAN ALPS.
MAIN FEATURES
170/160mm front/rear suspension travel
Shimano EP8 motor with 85Nm torque, powered by Shimano E8036 battery with 630Wh capacity
Fox 38 Performance series fork, with 170 mm travel, and Fox Float X Performance Elite shock on the rear

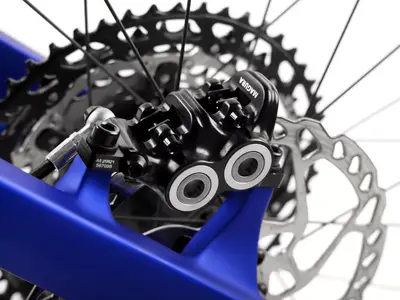

Powerful Magura MT5 E-Stop brakes with 4-piston caliper
Tough Dartmoor Shield Wide rims for the most aggressive trails
Rear wheel rolling on the Dartmoor Ebike-specific Reel Expert hubs
Maxxis Minion DHF tires with Maxx Grip Exo and Maxx Terra Exo Plus protection

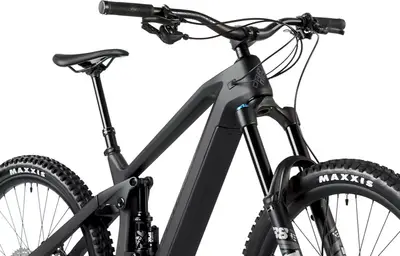

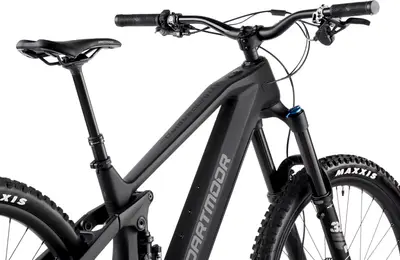

Oversized 35mm cockpit with 800mm wide Lightning Hi handlebar and short Beetle stem
E-Thunderbird is not equipped with a dedicated display monitor; nevertheless, Bluetooth is built in and allows a rider to connect Shimano E-Tube Apps to take full advantage of its potential. Please see the manual at the bottom of the page/downloads section: PHONE/DISPLAY SETUP WITH THE SHIMANO APPS, and also the Shimano webpage.

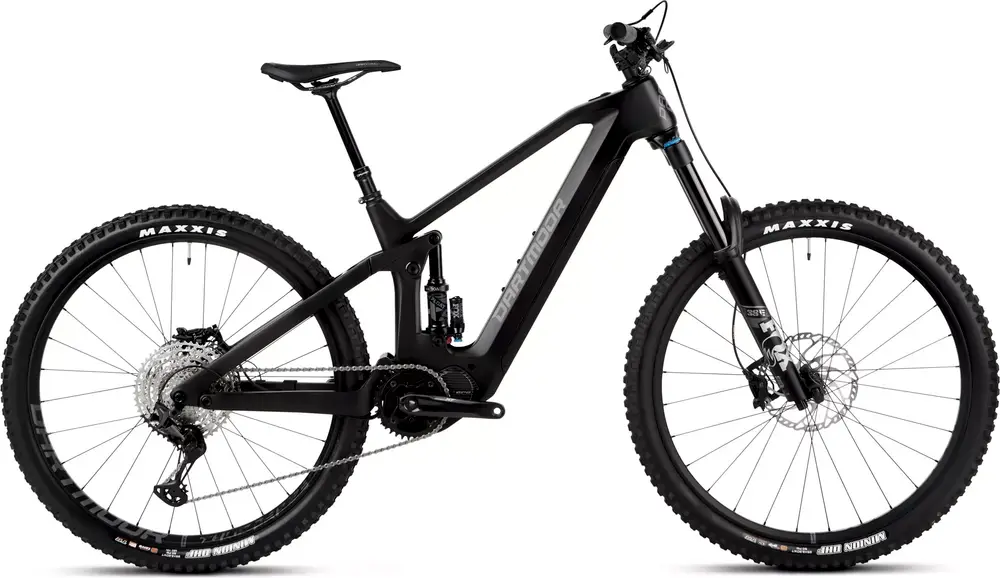

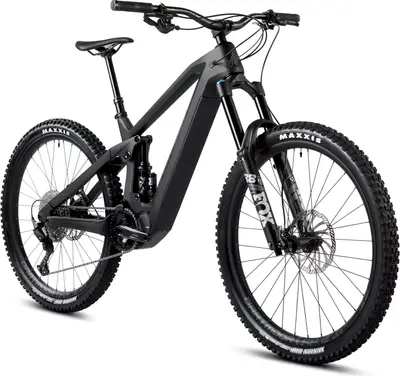

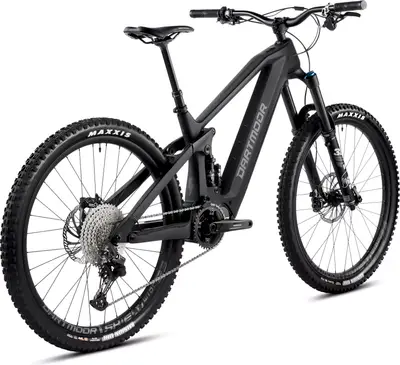

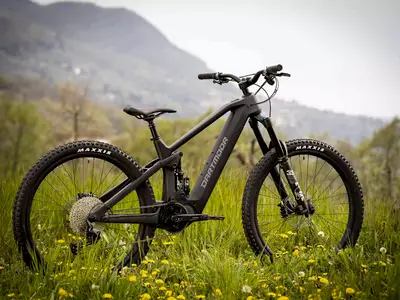

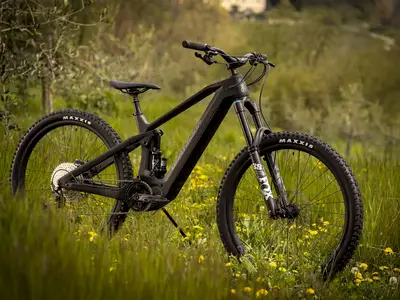

Dartmoor E-THUNDERBIRD CF

A 29″ carbon frame full suspension enduro e-bike with upper mid-range components.

Weight	54.0 lbs
Frame	Carbon
Suspension	Full, 160 / 170mm
Fork	Fox Performance Float 38
Shock	Fox Float X Performance Elite
Wheels	29″ Aluminum
Drivetrain	1 × 11
Groupset	Deore
Motor	Shimano 85Nm mid-drive
Battery	Shimano 630Wh
Brakes	Magura MT5 eSTOP Hydraulic Disc
Seatpost	Dropper

Frame	matt Black/Grey, Carbon Fiber, travel 160mm Color: Black / Grey

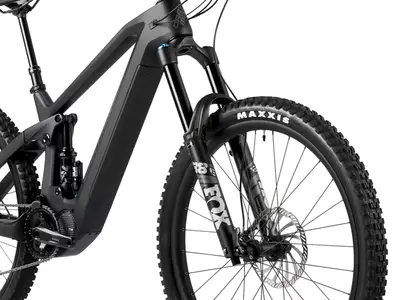

Fork	Fox 38 Performance eMTB+ 29", Grip, Boost, travel 170mm, crown 68mm, axle 15mm, tapered Travel: 170mm Spring Type: Air

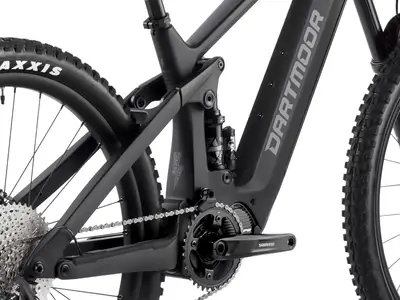

Shock	Fox Float X Performance Elite, 205x65mm, Trunnion Travel: 160mm
Stem	Dartmoor Beetle, Ø35mm
Handlebar	Dartmoor Lightning Hi 800mm, Ø35mm
Saddle	Dartmoor Leaf Pro
Seatpost	X-Fusion Manic 170mm(L)/150mm(M)/125mm(S), Ø31.6mm Type: Dropper
Pedals	without
Grips	Dartmoor Maze

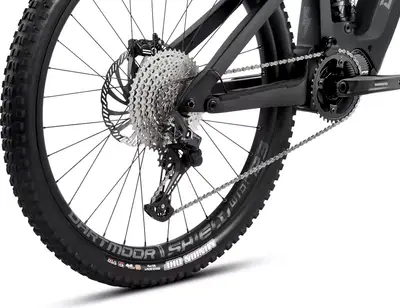

Rear Derailleur	Shimano Deore RD-M5100 1X11

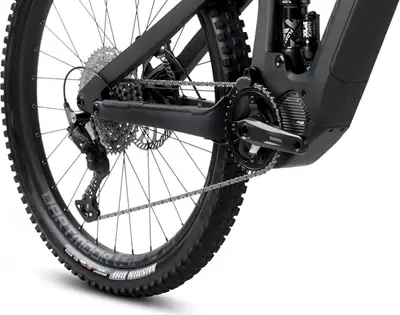

Crank	Shimano FC-EM600, 165mm
Shifters	Shimano Deore SL-M5100-R, 11–speed
Cassette	Sunrace CSMS7, 11-51T
Chain	Sunrace CN11A Black
Brakes	Magura MT5 eStop, 4-piston brakes, rotors front 203mm/rear 180mm Type: Magura MT5 eSTOP Hydraulic Disc

Rims	Dartmoor Shield Wide 29", 32H, F/V, tubeless ready
Front Hub	Dartmoor Reel Expert Boost 110x15, 32H
Rear Hub	Dartmoor Reel Expert E-Bike Boost 148x12, 32H
Tires	Front: Maxxis Minion DHF 29x2.5, WT, Foldable, 3C/Maxx Grip/Exo, Rear: Maxxis Minion DHF, 29x2.5, WT, Foldable, 3C/Maxx Terra/Exo Plus

Motor	Shimano EP8, 85Nm
Battery	Shimano E8036, 630Wh

2026 DartmoorE-THUNDERBIRD CF

2026 Dartmoor
E-THUNDERBIRD CF
