Graphite / Black

Shimano MT-201, 2-piston brakes, rotors 180mm

X-Fusion Mig Air RC 29", Boost, travel 130mm, axle 15mm, tapered

Microshift AdventX RD-M6205GM (with clutch) 1x10

Dartmoor Raptor 29"(front)/Raptor27.5"(rear), 32H, F/V, tubeless ready

Front: Vee Tire Crown Gem 29x2.6, Wire, MPC, Rear: Vee Tire Crown Gem 27.5x2.6, Wire, MPC

Affordable. Versatile. Well equipped - all checked! Now it’s time to charge the battery and discover all those trails you always dreamt of! With our all-new E-Sparrow, riding is easy like Sunday morning. Choose any spot on the map and reach it. With a wide range cassette, dropper post, and mullet setup with wide 2.6" tires, the whole spec was invented to help you on rocky, loose trails, adding both comfort and traction on climbs.
MAIN FEATURES
Dartmoor E-Sparrow AL-6061 frame dedicated for trail riding with geometry optimized for Mullet bikes with 29" front wheel and 27.5" rear wheel
Boost standard rear hub
Bafang M420 motor with 80Nm torque, powered by Bafang BT battery with 450Wh capacity
X-Fusion MIG 29 fork with RC damper and aluminum stanchions
Bombproof Microshift Advent X 10-speed derailleur with clutch and 11-48T cassette
A set of 29" front and 27.5" rear wheel with wide Vee Tire Crown Gem tires
Tubeless-ready Raptor rims with 30mm inner width
31.8mm cockpit with our new, compact Viper stem

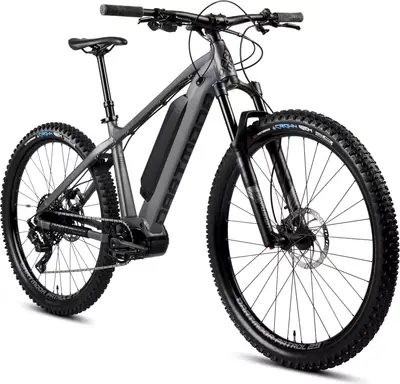

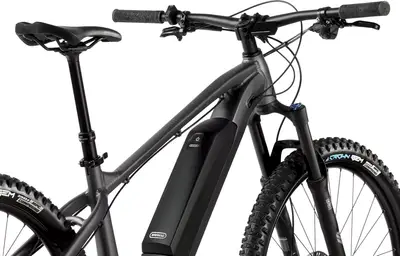

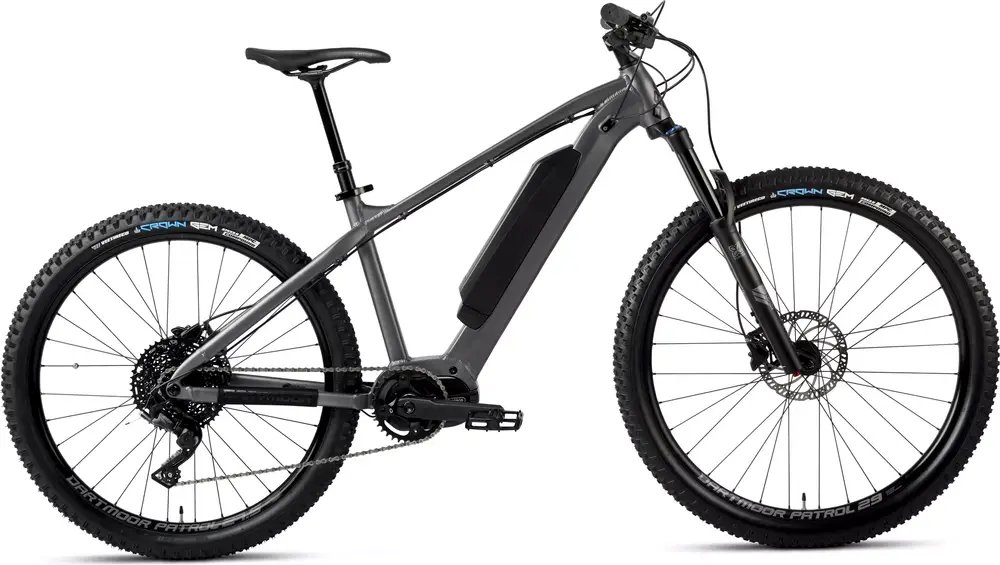

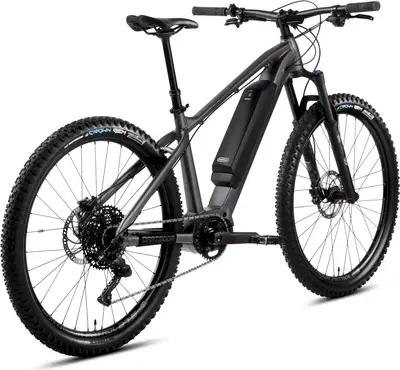

Dartmoor E-SPARROW

A 29″ / 27.5″ aluminum frame hardtail trail e-bike with upper mid-range components.

Weight	51.1 lbs
Frame	Aluminum
Suspension	Hardtail, 130mm
Fork	X-Fusion MIG
Wheels	29″ / 27.5″ Aluminum
Drivetrain	1 × 10
Groupset	microSHIFT Advent X
Motor	Bafang 80Nm hub-drive
Battery	Bafang 450Wh
Brakes	Shimano Hydraulic Disc
Seatpost	Dropper

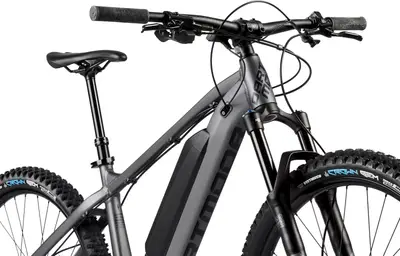

Frame	matt Graphite/Black, AL 6061-T6 Color: Graphite / Black

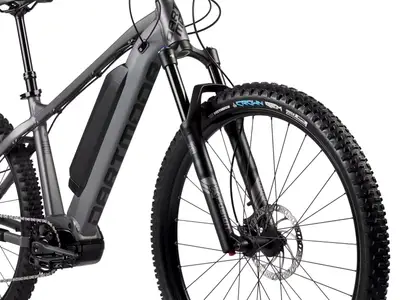

Fork	X-Fusion Mig Air RC 29", Boost, travel 130mm, axle 15mm, tapered Travel: 130mm Spring Type: Air
Stem	Dartmoor Viper, Ø31.8mm
Handlebar	Dartmoor Tornado Low 780mm, Ø31.8mm
Saddle	Dartmoor Ferns OEM
Seatpost	X-Fusion Manic 125mm, Ø30.9mm Type: Dropper
Pedals	Dartmoor Vibe
Grips	Dartmoor Maze Lite

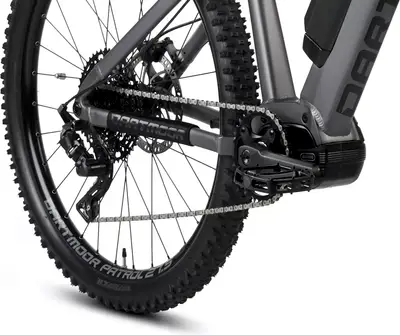

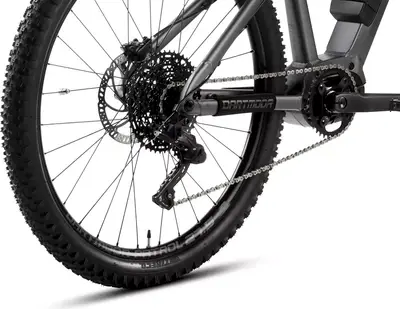

Rear Derailleur	Microshift AdventX RD-M6205GM (with clutch) 1x10
Crank	Samox ET38
Shifters	Microshift AdventX SL-M9605-R, 10-speed
Cassette	Microshift CS-H104, 11-48T
Chain	KMC X10
Brakes	Shimano MT-201, 2-piston brakes, rotors 180mm Type: Shimano Hydraulic Disc

Rims	Dartmoor Raptor 29"(front)/Raptor27.5"(rear), 32H, F/V, tubeless ready
Front Hub	Dartmoor Reel Boost 110x15mm, 32H
Rear Hub	Dartmoor Reel Boost 148x12mm, 32H
Tires	Front: Vee Tire Crown Gem 29x2.6, Wire, MPC, Rear: Vee Tire Crown Gem 27.5x2.6, Wire, MPC

Motor	Bafang M420, 80Nm
Battery	Bafang BT, 450Wh

2026 DartmoorE-SPARROW

2026 Dartmoor
E-SPARROW
