2020 Dartmoor
Blackbird Junior

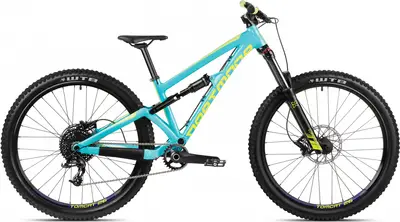

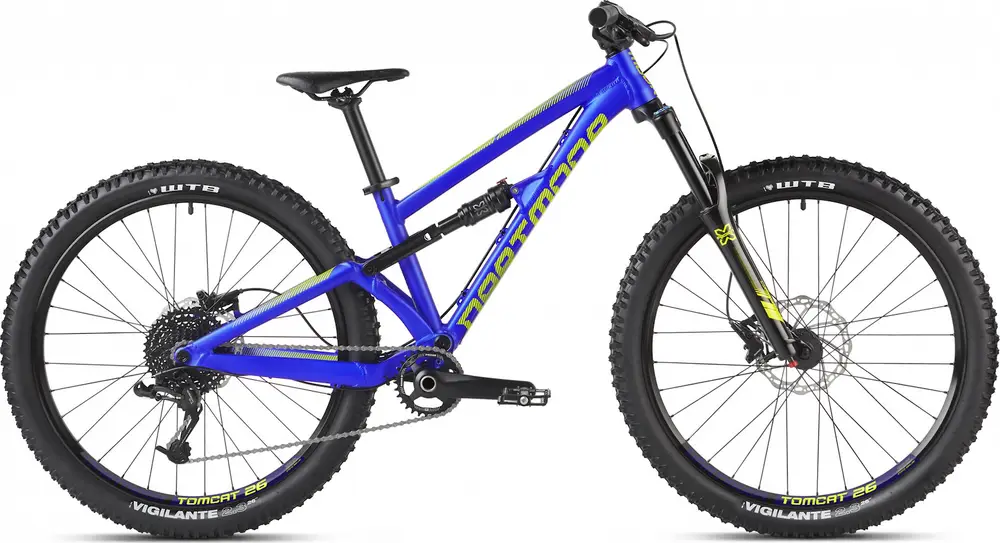

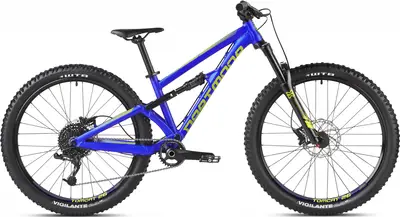

A 26″ aluminum frame mountain youth bike with mid-range components and hydraulic disc brakes.
| Weight | 30.5 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 130 / 130mm |
| Fork | X-Fusion RC32 |
| Shock | X-Fusion |
| Wheels | 26″ Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | X4, X5 |
| Brakes | Hydraulic Disc |
For This Bike
| Frame | Aluminum BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | X-Fusion RC32 27.5", 9mm axle, tapered Travel: 130mm Spring Type: Air |
| Shock | X-Fusion O2 Pro R, 165mm x 38mm Travel: 130mm Spring Type: Air |
| Bottom Bracket | BSA, 73mm, external bearings |
| Headset | Dartmoor Blink |
| Stem | Dartmoor Beetle, 33mm |
| Handlebar | Dartmoor Tornado 710mm, 31.8mm diameter |
| Saddle | Dartmoor Trail Junior |
| Seatpost | 6061 alloy, 300mm Type: Rigid |
| Pedals | Dartmoor Stream OEM |
| Grips | Dartmoor Maze Lite, without lock ring |
| Rear Derailleur | SRAM X4, 9-speed |
|---|---|
| Front Derailleur | None |
| Crank | 2 piece, BCD 76mm spider |
| Shifters | SRAM X5, 9-speed |
| Cassette | SunRace CSM980, 11-40 tooth, 9-speed |
| Chain | SunRace CNM94 |
| Chain Guide | None |
| Brakes | Tektro HD-M275, 180mm rotors Type: Hydraulic Disc |
| Brake Levers | Tektro HD-M275 |
| Rims | Dartmoor Tomcat 26", 32 hole, F/V |
|---|---|
| Front Hub | Front: Sealed bearings, 9mm quick release, Rear: Dartmoor Reel, 142mm x 12mm |
| Rear Hub | Front: Sealed bearings, 9mm quick release, Rear: Dartmoor Reel, 142mm x 12mm |
| Tires | WTB Vigilante 26" x 2.3", Comp |
