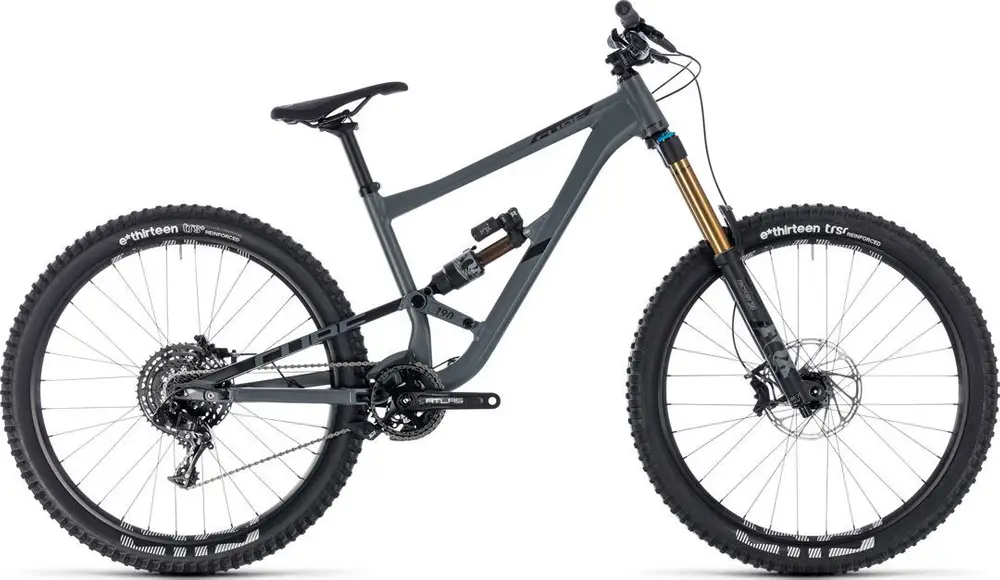

Today’s Deals2018 CUBE
HANZZ 190 TM 27.5
A 27.5″ aluminum frame full suspension enduro bike with high-end components.
Compare the full range
| Weight | 32.0 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 190 / 180mm |
| Fork | Fox Factory Float 36 |
| Shock | Fox Float X2 Factory |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | X1, GX |
| Brakes | SRAM Code R Hydraulic Disc |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Aluminium Light, Advanced Mechanical Forming, FSP 4-Link, ISCG Mount BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Fox 36 Float Factory FIT, LSC/HSC, Tapered, 20x110mm, 180mm, Kashima Coated Travel: 180mm Spring Type: Air |
| Shock | Fox Float X2 Factory, 222x70mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated Travel: 190mm |
| Bottom Bracket | External, threaded |
| Headset | FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm) |
| Stem | Race Face Aeffect R 35 |
| Handlebar | Race Face Atlas 35 800mm 35mm |
| Saddle | SDG FLY MTN 2 |
| Seatpost | CUBE Performance Post, 31.6mm Type: Rigid |
| Pedals | N/A |
| Grips | SDG Slater |
| Rear Derailleur | SRAM X1, Type2, 11-Speed |
|---|---|
| Crank | Race Face Atlas 34T, 170mm |
| Shifters | SRAM GX Trigger |
| Cassette | SRAM XG-1199, 10-42T |
| Chain | SRAM 11-Speed |
| Chain Guide | e*thirteen LG1+ |
| Brakes | SRAM Code R, Hydr. Disc Brake (200/180) Type: SRAM Code R Hydraulic Disc |
| Brake Levers | SRAM Code R |
| Rims | e*thirteen LG1+, 20x110mm / 12x157mm, Tubeless Ready |
|---|---|
| Front Hub | e*thirteen LG1+, 20mm x 110mm / 12mm x 157mm |
| Rear Hub | e*thirteen LG1+, 20mm x 110mm / 12mm x 157mm |
| Tires | Front: e*thirteen TRS Race, Sticky Triple Compound, 2.35, Rear: e*thirteen TRS Plus, Durable Dual Compound, 2.35 |
First added April 14
Last updated April 14
Not listed for 2,970 days
