Suntour XCR34, AIR, LOR, DS, 140mm, boost™ 15x110axle

ALU 6061, rear travel 135 mm, M (17"), L (19"), XL (21")

Shimano TC500, CL, F15/R12 thru type axle

New, unridden electric bike with minor cosmetic damage - the upper frame tube has a slight nick.
Terms of sale
The bike can only be picked up in person from our OUTLET at the following address: BELVE s.r.o., Holubyho 295, 916 01 Stará Turá. You can express your interest in personal collection by clicking on the button "I am interested in personal collection", after which a contact form will appear. After sending it, our employee will contact you to arrange a collection date. Payment for the ordered bike can be made by bank transfer based on a pro forma invoice, or in cash upon personal collection at our cash desk. A new bike with damage has a 24-month warranty period and a used bike (test bike) has a 12-month warranty period.
It will take you even further. The brand new AREON offers you even more than before. The proven Japanese Panasonic motor combined with the German BMZ battery, a precisely crafted frame combined with reliable components will make your ride a joy.

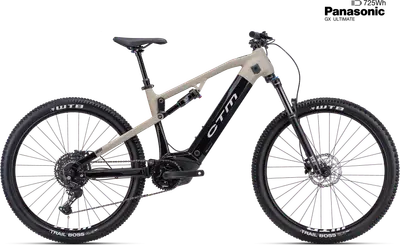

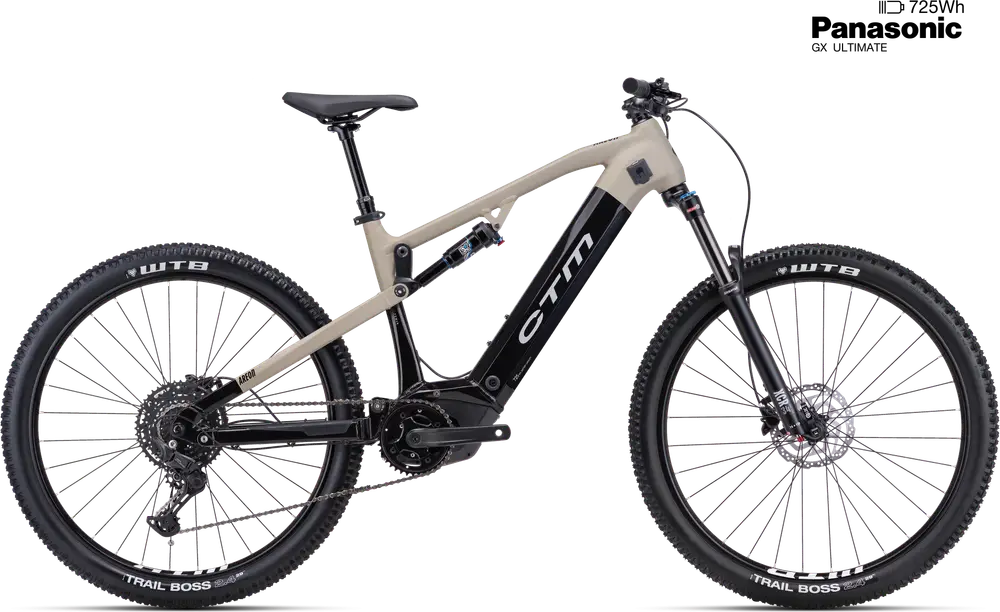

CTM AREON

A 29″ aluminum frame full suspension trail e-bike with mid-range components.

Frame	Aluminum
Suspension	Full, 140mm front
Fork	Suntour XCR Air
Shock	X-Fusion
Wheels	29″ Aluminum
Drivetrain	1 × 10
Groupset	CUES
Motor	Panasonic 250W 95Nm mid-drive
Battery	725Wh
Brakes	Shimano Hydraulic Disc
Seatpost	Dropper

Frame	ALU 6061, rear travel 135 mm, M (17"), L (19"), XL (21")

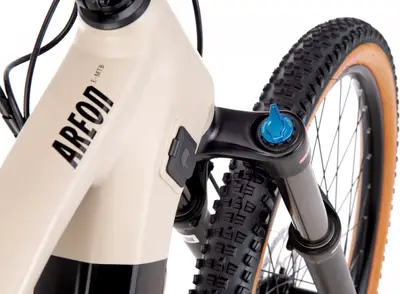

Fork	Suntour XCR34, AIR, LOR, DS, 140mm, boost™ 15x110axle Travel: 140mm Spring Type: Air
Shock	XFusion 02 PRO RL
Headset	NECO H156

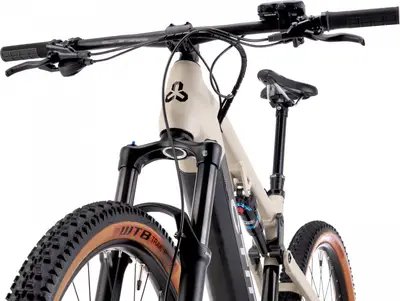

Handlebar	CTM rise bar, 31.8dia, 760mm
Saddle	CTM Flat Bar
Seatpost	EXA Form KSP900 (M-125mm/L,XL-150mm) Type: Dropper
Pedals	VPE 537

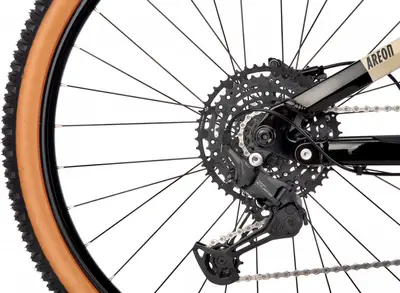

Rear Derailleur	Shimano CUES RD-U6000GS
Crank	Samox 38T, 170mm
Shifters	Shimano CUES SL-U6000/10sp.
Chain	Shimano CN-LG500

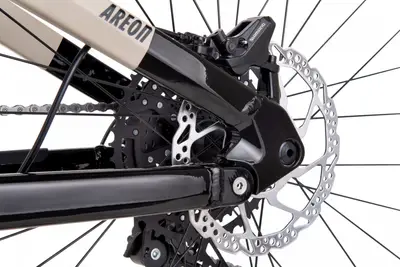

Brakes	Shimano MT420 / SMRT54M Type: Shimano Hydraulic Disc

Rims	WTB ST i29 TCS 2.0 29" 32H
Front Hub	Shimano TC500, CL, F15/R12 thru type axle
Rear Hub	Shimano TC500, CL, F15/R12 thru type axle

Motor	PANASONIC GX ULTIMATE / 250W / 95Nm
Battery	BMZ V10 725Wh / 36V / 20Ah

2024 CTMAREON

2024 CTM
AREON
