Shimano Claris FC2000 50/34T (520,540-170mm/560,580,600-175mm)

RCCFK G Carbon Fork (max tire clearance 44C)

ALU 6061 double butted, 520, 540, 560, 580, 600mm (max tire clearance 44C)

Are you going to drive a lot of kilometers on different surfaces, or pack your luggage and head across the continent? Do you want to experience real, adventurous cycling? The KOYUK 1.0 gravel bike will be your ideal companion. If during your trip you feel like enjoying some dust and off-road, simply turn onto unpaved terrain and the Koyuk 1.0 will handle it without any problems. The equipment is from renowned manufacturers.

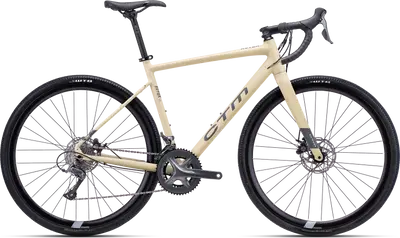

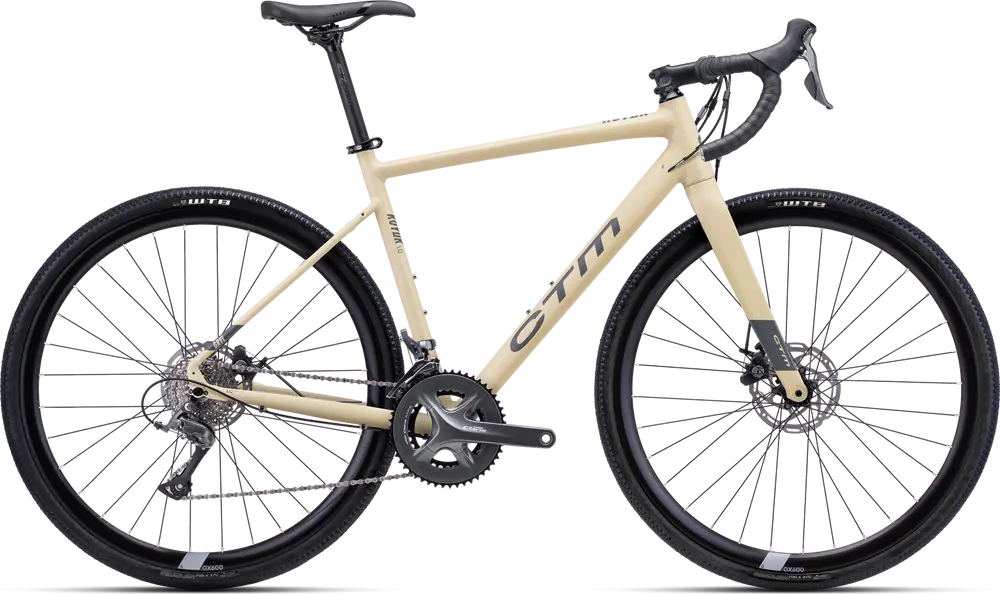

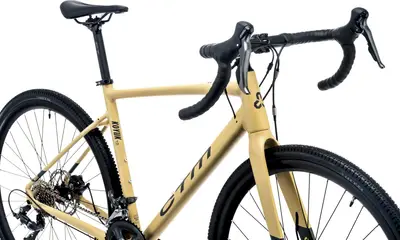

CTM KOYUK 1.0

52cm

54cm

56cm

58cm

60cm

An aluminum frame gravel bike with mid-range components and tektro mechanical disc brakes.

Frame	Aluminum
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	2 × 8
Groupset	Claris
Brakes	Tektro Mechanical Disc

Frame	ALU 6061 double butted, 520, 540, 560, 580, 600mm (max tire clearance 44C) Tire Clearance: 44c

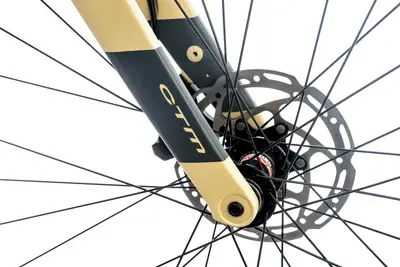

Fork	RCCFK G Carbon Fork (max tire clearance 44C)
Headset	FSA Orbit C40, ACB
Stem	CTM TDS-RD701 80mm
Handlebar	CTM X-Race 440mm
Saddle	SELLE ROYAL SRX
Seatpost	CTM SPDC1 350/400x27.2 mm Type: Rigid

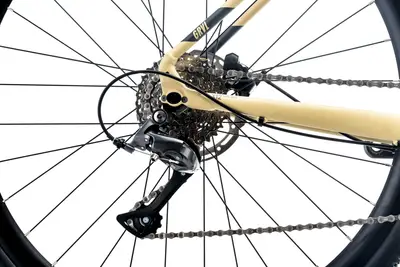

Rear Derailleur	Shimano Claris R2000

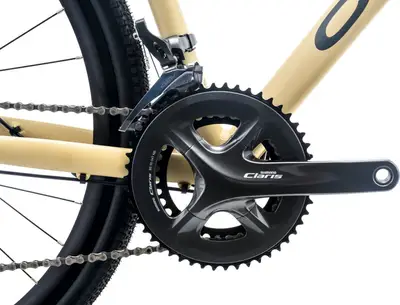

Crank	Shimano Claris FC2000 50/34T (520,540-170mm/560,580,600-175mm)
Shifters	Shimano Claris R2000-8sp.
Chain	Shimano HG71

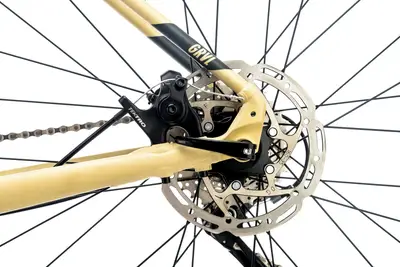

Brakes	Tektro MD-C310 / TR160 Type: Tektro Mechanical Disc

Rims	Remerx G-DISC RX 5022 32H
Rear Hub	Novatec D981B-12 / D982TSE-X12-11S
Tires	WTB Riddler Comp 700x37c

2023 CTMKOYUK 1.0

2023 CTM
KOYUK 1.0
