Suntour XCR34, AIR, LOR, DS, 140mm, boost™ 15x110axle

ALU 6061, rear travel 135 mm, M (17"), L (19"), XL (21")

AREON – your weekend getaway can be AREON. E-MTB suspension aluminum "all mountain" bike with 130mm rear lift and horstlink system. With the powerful BAFANG M500 engine, which has a torque of up to 90Nm and in combination with a large-capacity battery of up to 630Wh, the exploration can begin immediately.

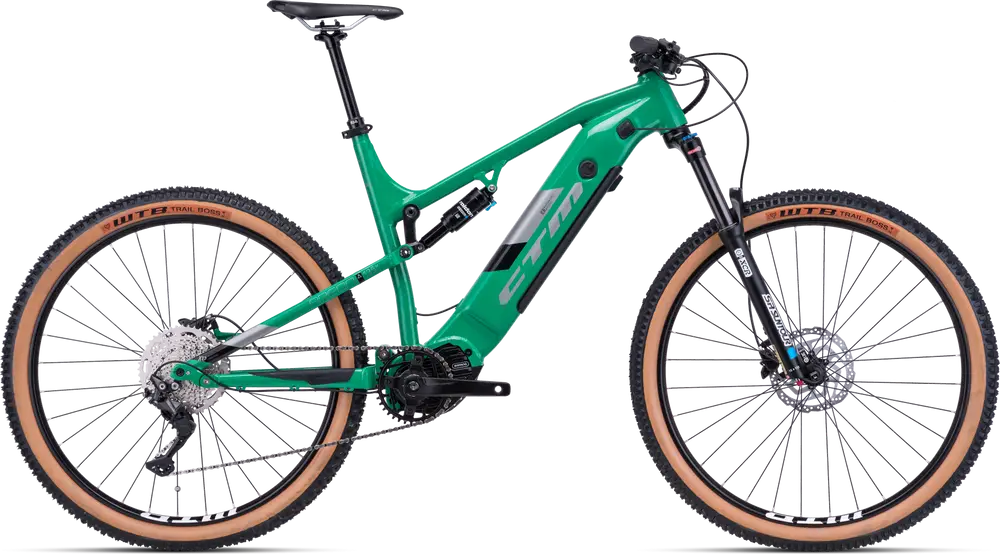

CTM AREON

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.

Frame	Aluminum
Suspension	Full, 140mm front
Fork	Suntour XCR Air
Shock	Suntour
Wheels	29″ Aluminum
Drivetrain	1 × 10
Groupset	Deore
Motor	Bafang 250W 95Nm mid-drive
Battery	630Wh
Brakes	Zoom Hydraulic Disc
Seatpost	Dropper

Frame	ALU 6061, rear travel 135 mm, M (17"), L (19"), XL (21")
Fork	Suntour XCR34, AIR, LOR, DS, 140mm, boost™ 15x110axle Travel: 140mm Spring Type: Air
Shock	SR Suntour RAIDON LO 190x51 mm
Headset	NECO H156
Stem	CTM ASM03 45 mm
Handlebar	CTM rise bar, 31.8dia, 760mm
Saddle	CTM FLAT
Seatpost	EXA Form KSP900 (M-125mm/L,XL-150mm) Type: Dropper
Pedals	VPE-537

Rear Derailleur	Shimano Deore RD-M5120
Crank	Bafang 38T, 170mm
Shifters	Shimano Deore SL-M4100/10sp.
Chain	KMC X10e 126L
Brakes	ZOOM HB875/CL180 Type: Zoom Hydraulic Disc

Rims	WTB ST i29 TCS 2.0 29" 32H
Rear Hub	Shimano MT400 boost / 32H
Tires	WTB Trail Boss 29x2.4" Comp

Motor	BAFANG M500 / 250W / 95Nm
Battery	630Wh / 36V / 17.5Ah

2022 CTMAREON

2022 CTM
AREON
