2021 CTM

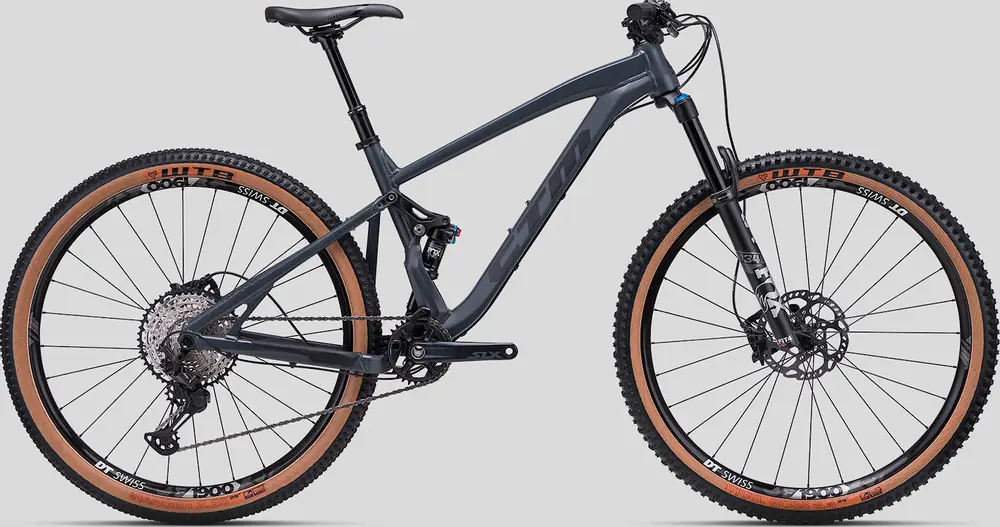

Ridge Pro 29"

A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range

Weight31.3 lbs
FrameAluminum
SuspensionFull, 130 / 140mm
ForkFox Performance Elite Float 34
ShockFox Float DPS Performance Elite
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT, SLX
BrakesShimano SLX Hydraulic Disc
SeatpostDropper
Where to Buy
Similar Bikes
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Ridge Pro 29"
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

Ridge Pro 29"

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Aluminum

Fork

FOX FLOAT 34 Performance Elite, 3-position lever, 51mm offset

Travel140mm

Spring TypeAir

Shock

FOX FLOAT DPS Performance Elite, EVOL, 3-position lever, 200mm x 51mm

Travel130mm

Bottom Bracket

Shimano MT800B

Headset

FSA Orbit 1.5

Stem

Race Face Aeffect R, 50mm length, 35mm bar clamp

Handlebar

Race Face Aeffect R, 760mm width, 10mm rise, 35mm clamp diameter

Saddle

WTB Volt

Seatpost

KS Rage-i dropper, Drop: 125mm (MD), 150mm (LG/XL)

TypeDropper

Pedals

HT PA12 platform

Groupset
Rear Derailleur

Shimano Deore XT M8100, 12-speed

Front Derailleur

None

Crank

Shimano SLX M7100, 170mm length

Shifters

Shimano Deore XT M8100, 12-speed

Cassette

Shimano SLX M7100, 12-speed, 10-51 tooth

Chain

Shimano Deore M6100, 12-speed

Chain Guide

Upper slider

Brakes

Shimano SLX M7120, 4-piston, Shimano RT70 rotors

TypeShimano SLX Hydraulic Disc

Brake Levers

Shimano SLX M7120

Wheels
Rims

DT Swiss E1900 Spline wheelset

Spokes

DT Swiss E1900 Spline wheelset

Front Hub

DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver

Rear Hub

DT Swiss E1900 Spline wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver

Tires

Front: WTB Trail Boss G2, TCS, 29" x 2.4", Rear: WTB Ranger, TCS, 29" x 2.25"
