2020 CTM
Switch

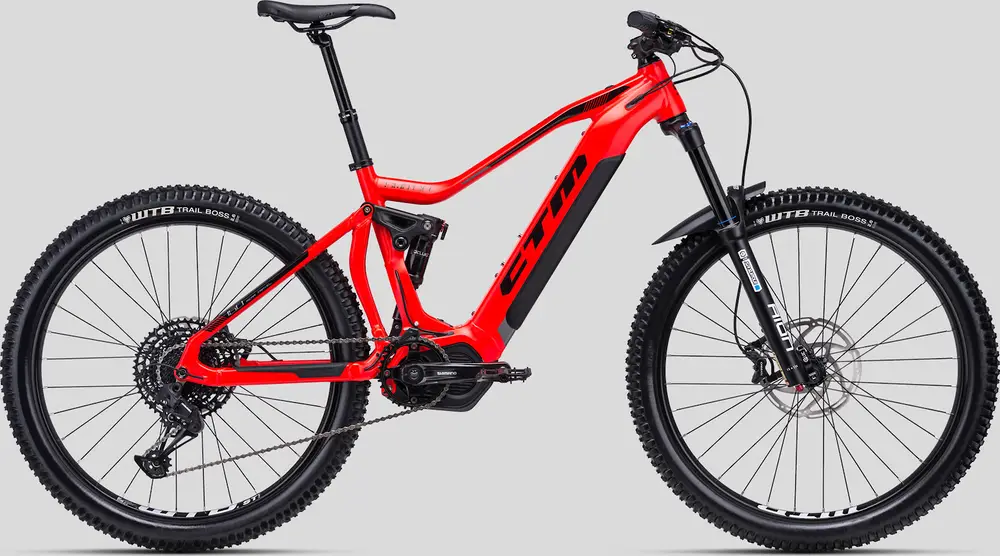

A 27.5″ aluminum frame full suspension enduro e-bike with upper mid-range components.
Compare the full range

Where to Buy

Similar Bikes

Top Comparison

Insights

Ride Feel

Based on frame geometry and build specs.

Terrain

easyextreme

Handling

nimblestable

Switch

Other Enduro bikes

Sizing

5'4" – 5'10"

5'8" – 6'3"

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry

Specs

Build

Frame	Aluminum
Fork	SR Suntour Aion 35 EVO RC DS, 42mm offset Travel: 160mm Spring Type: Air
Shock	RockShox Deluxe Select+ RT, 205mm x 65mm Travel: 150mm
Headset	FSA Orbit 1.5
Stem	CTM ASM04, 35mm bar clamp
Handlebar	CTM HB352, 35mm clamp diameter, 780mm width
Saddle	WTB Volt
Seatpost	KS Eten-I dropper, 125mm drop Type: Dropper
Pedals	HT PA12 platform

Groupset

Rear Derailleur	SRAM SX Eagle, 12-speed
Front Derailleur	N/A
Crank	Shimano E8000
Shifters	SRAM SX Eagle, 12-speed
Cassette	SRAM SX Eagle PG1210, 12-speed, 11-50 tooth
Chain	SRAM SX Eagle, 12-speed
Chain Guide	Upper slider
Brakes	Tektro Orion, 4-piston, 203mm rotors Type: Tektro Orion Hydraulic Disc
Brake Levers	Tektro Orion

Wheels

Rims	WTB ST i35 TCS 2.0, 32 hole, 35mm internal width
Front Hub	Front: Shimano MT400, 32 hole, 110x15mm Boost, Rear: Shimano MT510, 32 hole, 148x12mm Boost, HG driver
Rear Hub	Front: Shimano MT400, 32 hole, 110x15mm Boost, Rear: Shimano MT510, 32 hole, 148x12mm Boost, HG driver
Tires	WTB Trail Boss G2, Comp, 27.5" x 2.6"

Electric Components

Motor	Shimano STEPS E7000, 250W, 60Nm torque
Battery	Shimano STEPS E8035, integrated, removable
Remote	Shimano STEPS system
Display	Shimano STEPS system

Rider Notes

Riders Also Viewed

First added May 14

Last updated May 14

Not listed for 2,206 days

2020 CTMSwitch
