2020 CTM

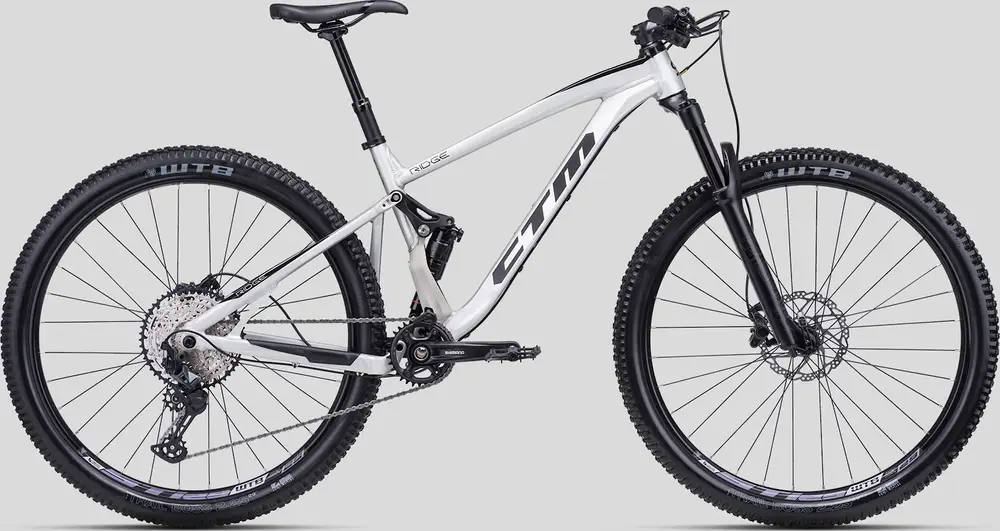

Ridge Xpert 29"

A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range

Weight32.4 lbs
FrameAluminum
SuspensionFull, 130 / 130mm
ForkRockShox 35 Gold RL
ShockRockShox Monarch RT3
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetSLX
BrakesShimano Deore Hydraulic Disc
SeatpostDropper
View on ctm.skLearn about CTM
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Ridge Xpert 29"
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

Ridge Xpert 29"

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Aluminum

BB Standard: BSA, Threaded

Fork

RockShox 35 Gold RL, 51mm offset

Travel: 130mm

Spring Type: Air

Shock

RockShox Monarch RT3, 200mm x 50mm

Travel: 130mm

Bottom Bracket

Shimano BB52

Headset

FSA Orbit 1.5

Stem

CTM ASM04, 35mm bar clamp, 45mm length

Handlebar

CTM HB352, 35mm clamp diameter, 760mm width

Saddle

WTB Volt

Seatpost

KS LEV SI dropper, Drop: 125mm (MD), 150mm (LG/XL)

Type: Dropper

Pedals

HT PA12 platform

Groupset
Rear Derailleur

Shimano SLX M7100, 12-speed

Front Derailleur

N/A

Crank

Shimano MT610, 175mm length

Shifters

Shimano SLX M7100, 12-speed

Cassette

Shimano SLX M7100, 12-speed, 10-51 tooth

Chain

Shimano SLX M7100, 12-speed

Chain Guide

Mozartt upper slider

Brakes

Shimano Deore M6000, 2-piston, Shimano RT64M rotors

Type: Shimano Deore Hydraulic Disc

Brake Levers

Shimano Deore M6000

Wheels
Rims

WTB ST i29 TCS 2.0, 32 hole

Front Hub

Front: Shimano MT400, 32 hole, 110x15mm Boost, Rear: Shimano MT510, 32 hole, 148x12mm Boost, MICRO SPINE driver

Rear Hub

Front: Shimano MT400, 32 hole, 110x15mm Boost, Rear: Shimano MT510, 32 hole, 148x12mm Boost, MICRO SPINE driver

Tires

WTB Trail Boss, TCS, Light, 29" x 2.25"
