2023 Commençal
SUPREME DH V5 OHLINS EDITION

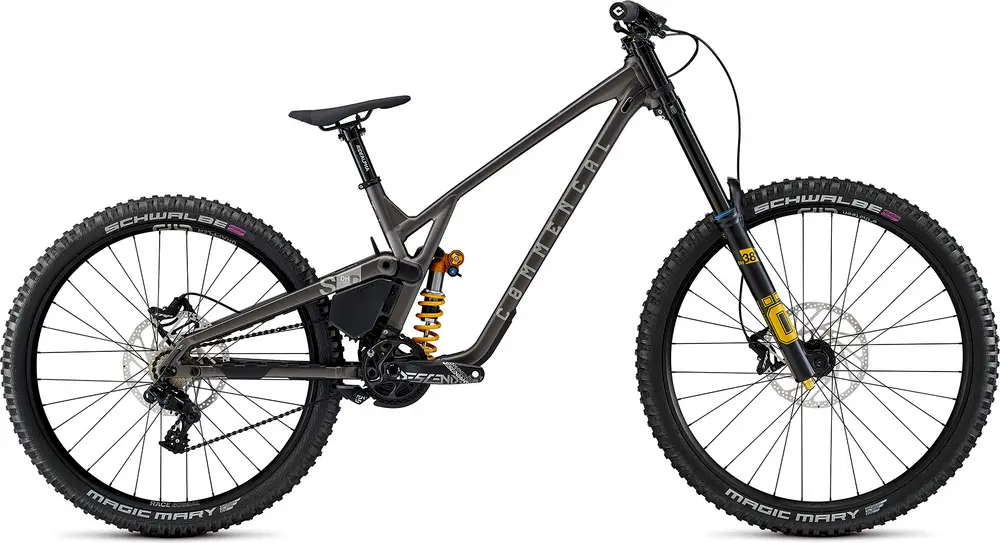

A 27.5″ aluminum frame full suspension downhill bike with high-end components.
For This Bike
Mar 2022 · COMMENCAL bicycles
The latest iteration of the Supreme will be available to buy this year
Jul 2020
You've seen it on the race track, now you can see it your garage—it's the Supreme Mullet 29/27 from Commencal.
| Frame | SUPREME DH V5 29/27, 220 mm travel on S / M / L / XL, 27/29'', Alloy 6066, triple butted tubes, T4, T6 BB Standard: BB86/BB92, 107mm, Press Fit Color: Ohlins Yellow, Matte Finish |
|---|---|
| Fork | OHLINS DH38 m.1 Air, 200 mm travel, 29", TTX 18 damper, LSC, HSC, rebound, Boost (20 x 110 mm), 54 mm offset Travel: 200mm Spring Type: Air |

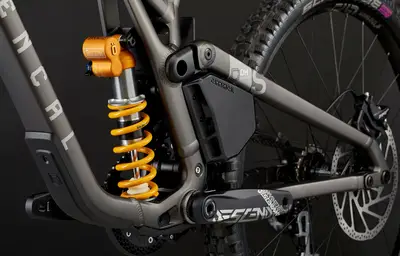

| Shock | OHLINS TTX22 m.2, 250 x 75 mm, HSC, LSC, rebound. Spring rates: 388 lbs on S, 434 lbs on M, 457 lbs on L, 502 lbs on XL Travel: 220mm Spring Type: Air |
| Bottom Bracket | Press Fit BB 107 |
| Headset | ACROS ZS56 / ZS56, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA DH 40, 40 mm extension, direct mount, 31.8 mm |
| Handlebar | RIDE ALPHA R27, 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on S / M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
| Saddle | FIZIK Gravita Alpaca X5, 130 mm width, S-Alloy rails |
| Seatpost | RIDE ALPHA Super Light, 31.6 mm, 250 mm length Type: Rigid |
| Grips | ODI Longneck, Soft pro compound, single clamp, black |
| Rear Derailleur | SRAM GX DH, 7 sp |
|---|---|
| Crank | TRUVATIV Descendant DH, 165 mm crank arms, DUB, Chainring: TRUVATIV Descendant DH X-Sync, 34t |
| Shifters | SRAM GX DH, 7 sp |
| Cassette | E13 DH 7 Speed Integrated Cassette, 7s, 9-24t DM Cassette |
| Chain | KMC X11EL, Black |
| Chain Guide | E13 LG1 + Bottom Guide, 32-34t |

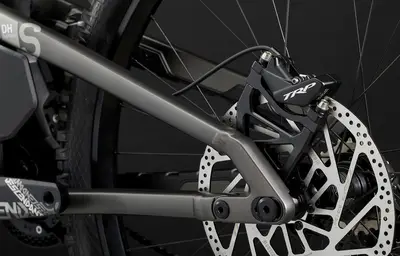

| Brakes | TRP DH-R Evo, 4 pistons, resin pads, Rotors : TRP R1 223 mm, 6-bolt, 2.3 mm thickness Type: Hydraulic Disc |
| Rims | E13 Grappler Race Alloy, Rear: 27.5'', 32h, 30 mm inner width - Front: 29'', 32h, 30 mm inner width |
|---|---|
| Front Hub | Rear: E13 GRAPPLER Race Alloy - Front: E13 GRAPPLER Race Alloy, Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black |
| Rear Hub | Rear: E13 GRAPPLER Race Alloy - Front: E13 GRAPPLER Race Alloy, Rear: 32h, sealed bearings, 12 x 157 mm, black - Front: 32h, sealed bearings, 20 x 110 mm Boost, black |
| Tires | Rear: SCHWALBE Magic Mary - Front: SCHWALBE Magic Mary, Rear: 27.5'' x 2.4'', Super DH, Addix Ultra Soft, Tubeless Easy - Front: 29" x 2.4", Super DH, Addix Ultra Soft, Tubeless Easy |
Last updated April 15
