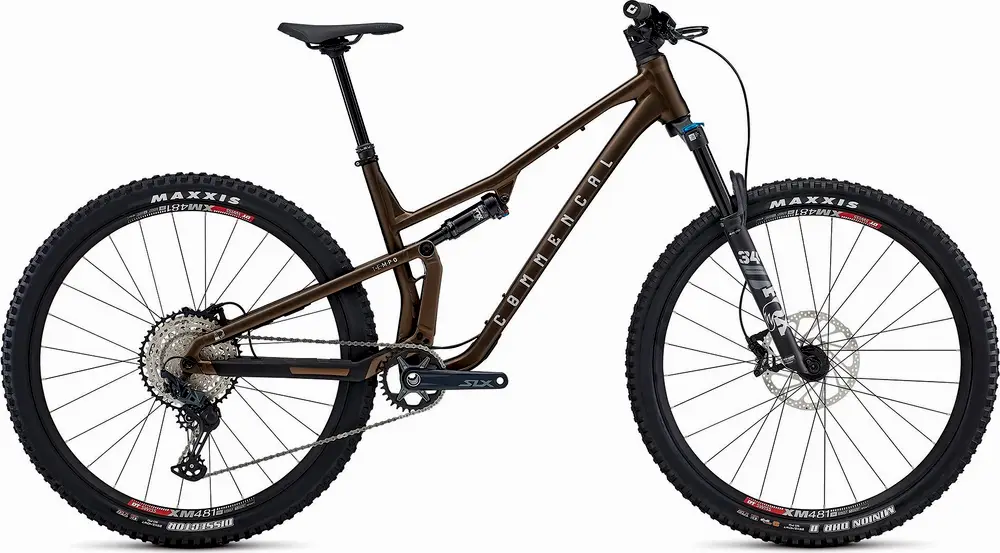

T.E.M.P.O. ESSENTIAL
A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full T.E.M.P.O model range
View Comparison5'2" – 5'7"
5'6" – 5'11"
5'10" – 6'3"
6'2" – 6'11"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Frame | T.E.M.P.O, 125 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings BB Standard: BB86/BB92, Press Fit Color: Frozen Brown, Matte Finish |
---|---|
Fork | FOX 34 Performance, 140 mm travel, 29", Float, Grip damper, LSR, 3 positions compression, Boost (15 x 110 mm), 51 mm offset, 1 spacer Travel: 140mm Spring Type: Air |
Shock | FOX FLOAT DPS Performance, 210 x 50 mm, rebound, 3 positions, Evol LV, 0.4 spacer Travel: 125mm Spring Type: Air |
Bottom Bracket | BB92 Press Fit |
Headset | ACROS ZS56 / ZS56, Alloy cups, sealed bearings, Integrated cable routing |
Stem | RIDE ALPHA 40, 40 mm extension, 31,8 mm |
Handlebar | RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL |
Saddle | FIZIK Terra Alpaca X5, 145 mm width, S-alloy rails |
Seatpost | KINDHSOCK Lev Integra, 31.6 mm, 150 mm on S, 175 mm on M, 200 mm on L/XL Type: Dropper |
Grips | ODI Elite Motion, Single clamp, black |
Rear Derailleur | SHIMANO SLX, 12s |
---|---|
Crank | SHIMANO SLX, 170 mm crank arms, Boost, Chainring: SHIMANO SLX, 32t, Narrow-Wide |
Shifters | SHIMANO SLX, 12s |
Cassette | SHIMANO SLX, 12s, 10-51t |
Chain | SHIMANO SLX, 12s |
Brakes | TRP Trail Evo, 4 pistons, I-Spec EV, resin pads, Rotors: TRP R1 203 / 180 mm, 6-bolt, 2.3 mm thickness Type: Hydraulic Disc |
Rims | DT SWISS XM 481, 29'', 28h, 30 mm inner width |
---|---|
Front Hub | Rear: FORMULA MSL-148A - Front: FORMULA DC-711, Rear: 28h, sealed bearings, 12 x 148 mm, SHIMANO Microspline freehub body - Front: 28h, sealed bearings, 15 x 110 mm |
Rear Hub | Rear: FORMULA MSL-148A - Front: FORMULA DC-711, Rear: 28h, sealed bearings, 12 x 148 mm, SHIMANO Microspline freehub body - Front: 28h, sealed bearings, 15 x 110 mm |
Tires | Rear: MAXXIS Dissector - Front: MAXXIS DHR II, Rear: 29" x 2.4" WT, dual compound, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready |
Last updated April 15
