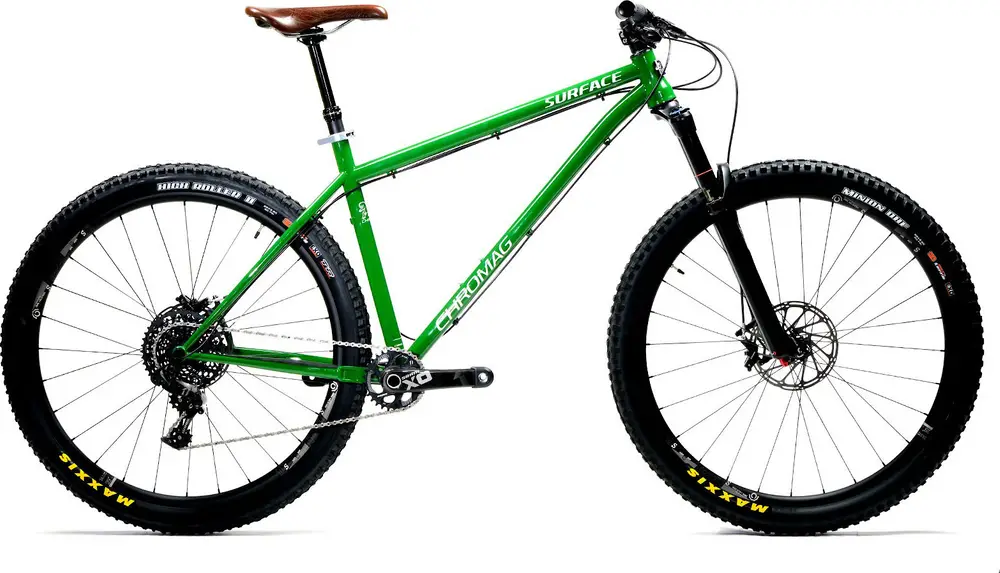

Surface X01 Eagle
A 27.5″ steel frame hardtail enduro bike with ultra high-end components.
Compare the full range
MSRP | $5,250 |
---|---|
Frame | Steel |
Suspension | Hardtail, 150mm |
Fork | RockShox Lyrik |
Wheels | 27.5″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | X01 Eagle, X1 |
Brakes | Hydraulic Disc |
For This Bike
5'3" – 5'9"
5'6" – 5'11"
5'8" – 6'2"
5'10" – 6'4"
6'2" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2019
Pistons & Pivots is a feature devoted to owners of interesting bikes and cars. First up is Owen Foster of OneUp Components, as well as his first-gen Toyota 4Runner and Chromag Surface.
May 2017
We test out the Chromag Surface, an aggressive, beautifully constructed BC hardtail.
Frame | Chromoly BB Standard: BSA, 73mm, Threaded |
---|---|
Fork | RockShox Lyrik Travel: 150mm Spring Type: Air |
Shock | N/A Spring Type: Air |
Bottom Bracket | 73mm threaded |
Headset | Cane Creek Forty, ZS44 upper, ZS56 lower |
Stem | Chromag HiFi, 40mm length |
Handlebar | Chromag OSX, 25mm rise, 780mm width |
Saddle | Chromag Trailmaster DT |
Seatpost | Chromag Dolomite, Option: RockShox Reverb dropper Type: Rigid |
Pedals | N/A |
Grips | Chromag Squarewave |
Rear Derailleur | SRAM X01 Eagle, 12-speed |
---|---|
Front Derailleur | N/A |
Crank | SRAM X1 Carbon Eagle |
Shifters | SRAM X01 Eagle, 12-speed |
Cassette | SRAM X01 Eagle, 12-speed, 10-50 tooth |
Chain | SRAM X01 Eagle, 12-speed |
Chain Guide | N/A |
Brakes | SRAM G2 RSC, 180mm rotors Type: Hydraulic Disc |
Brake Levers | SRAM G2 RSC |
Rims | 29": Chromag Phase30, 27.5+: Chromag Magna40 |
---|---|
Spokes | Chromag wheelset |
Front Hub | Chromag R4, 110x15mm Boost front, 148x12mm Boost rear with XD driver |
Rear Hub | Chromag R4, 110x15mm Boost front, 148x12mm Boost rear with XD driver |
Tires | Front: Maxxis Minion DHF, Rear: Maxxis Minion DHR II |
