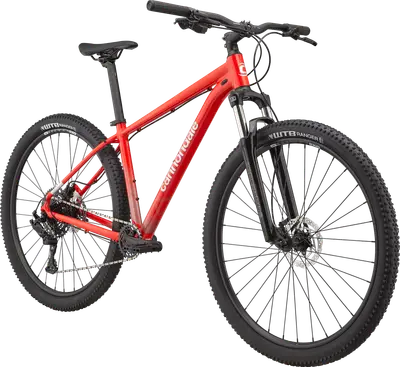

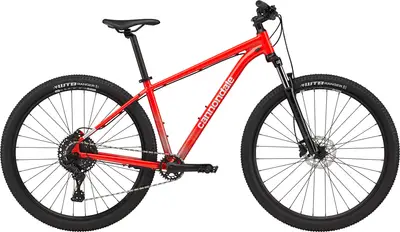

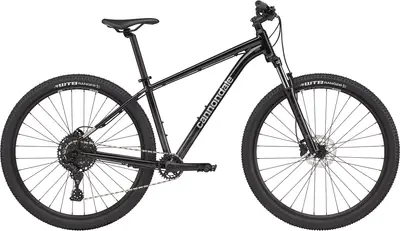

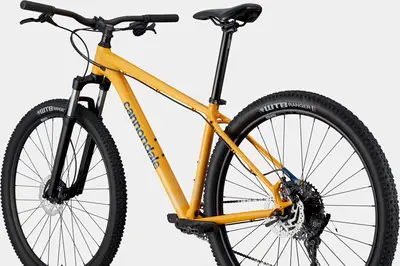

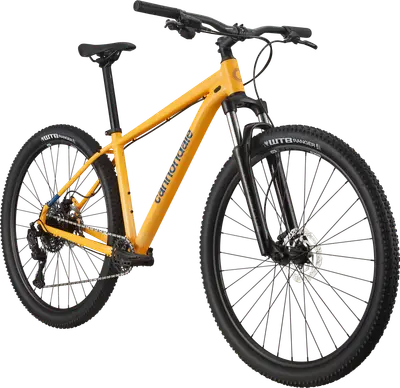

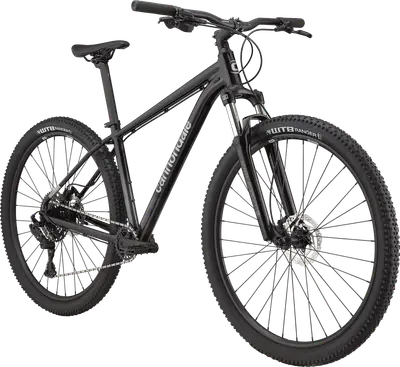

2022 Cannondale
Trail 5
A 29″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Manufacturer Price
$960| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | microSHIFT Advent X |
| Brakes | Hydraulic Disc |
4'6" – 5'3"
5'0" – 5'5"
5'2" – 5'8"
5'7" – 6'1"
5'10" – 6'3"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2023 · Ron Koch
The SE version of the Scalpel uses the same frame as that ultra-light steed but with a longer-stroke shock and increased fork travel to combine the best attributes of a dedicated cross-country and trail bike into one machine.
May 2023 · Sarah Bedford
Contemporary angles, a forgiving frame and decent spec mean the Trail SE 4 has a lot of promise, but the short reach and top tube limit trail potential when things get more technical
Good-quality Shimano drivetrain
Upgrade potential
Comfortable when cruising and climbing
Brakes lack power and urgency
Coil-sprung fork is too hard for light riders
Long stem affects responsiveness of steering
Heavy compared to competition
Sep 2022 · Guy Kesteven
The big tube brand wants to blow up your tires too now, is Guy Kesteven pumped about that or a bit let down?
Fast, smooth, mid-volume action
Neat locking Presta or Schraeder head
Flexible pull-out hose
Tough machined construction and quality feel
Secure travel lock and frame clip
More ‘Midi’ than ‘Mini’ in length and weight
Quality costs
Can trap your hand
Hard top and bottom out
May 2020
Fast enough for XC races and big enough to rip descents
Lightweight frame with modern geometry
Non-racers may want knobbier tires
May 2020
The all-new Cannondale Scalpel comes in 100mm and 120mm travel versions, both using the same frame., and gets lighter & more capable with a new suspension!
Jul 2019 · Paul Burwell
The Cannondale Trail 5 is a new addition to the £750 category and features a Smartform aluminium frame, which is one of the most comfortable here.
Frame has excellent feel and ride quality...
But it’s also too tall and lacks stand-over clearance
Oct 2018
Cannondale's Proportional Response suspension design and the all-new Habit features 130mm of suspension fit for riders of different sizes. - Mtbr.com

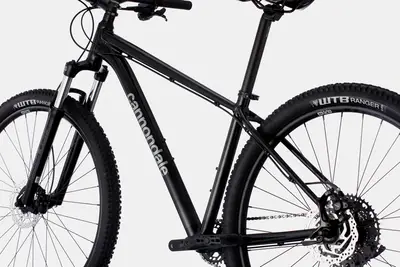

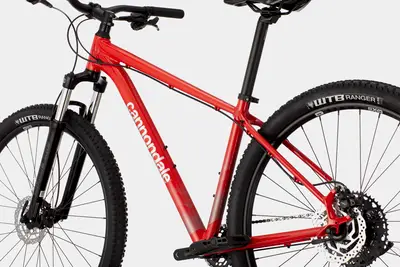

| Frame | SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73 BB Standard: BSA, 73mm, Threaded Colors: Mango; Graphite; Rally Red |
|---|---|
| Fork | SR Suntour XCM, 100mm, coil, 42mm offset (27.5") 46mm offset (29") Travel: 100mm Spring Type: Coil |
| Bottom Bracket | Sealed cartridge bearing, square taper |
| Headset | Semi-Integrated, 1-1/8" |
| Stem | 6061 Alloy, 31.8, 7° |
| Handlebar | Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm |
| Saddle | Cannondale Stage 3 |
| Seatpost | Cannondale 3, 6061 Alloy, 31.6x350mm (XS - SM), 400mm (MD-XL) Type: Rigid |
| Pedals | Cannondale Platform |
| Grips | Cannondale Dual-Density |

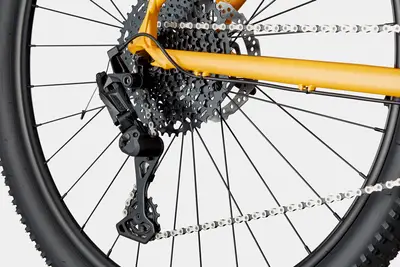

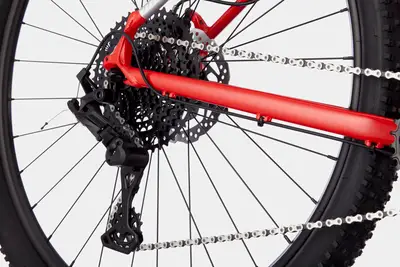

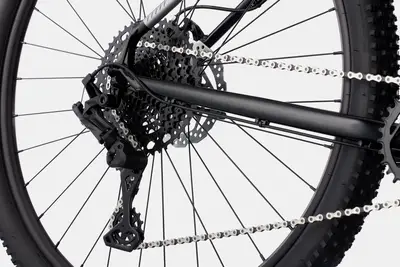

| Rear Derailleur | microSHIFT Advent X |
|---|---|
| Crank | Prowheel, Charm 30T |
| Shifters | microSHIFT Advent X, 10-Speed |
| Cassette | microSHIFT, 11-48, 10-speed |
| Chain | KMC X10, 10-speed |

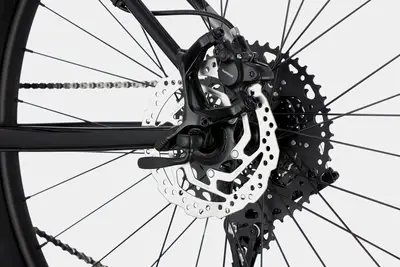

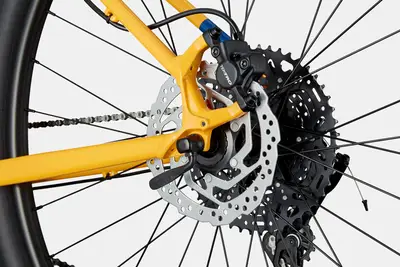

| Brakes | Tektro M275 hydraulic disc, 160/160mm rotors Type: Hydraulic Disc |
| Brake Levers | Tektro hydraulic disc |
| Rims | WTB SX19, 32h |
|---|---|
| Spokes | Stainless Steel, 14g |
| Front Hub | Shimano HBTX 505 |
| Rear Hub | Shimano FH-TX505 |
| Tires | WTB Ranger Comp, 29x2.25" (27.5x2.25" - XS, SM), DNA Compound |
