2021 Cannondale
Trail Neo 4

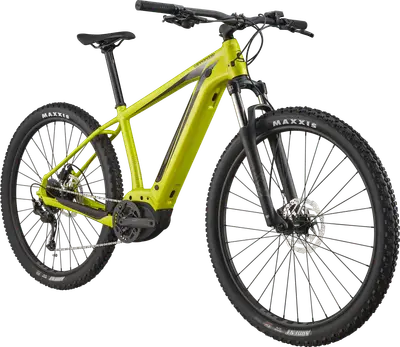

A 29″ aluminum frame hardtail crosscountry e-bike with mid-range components.
Compare the full range
Manufacturer Price
£3,100($3,925)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 100mm |
| Fork | Suntour XCM |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | Alivio, FSA |
| Motor | Bosch 600W 63Nm mid-drive |
| Battery | Bosch 500Wh |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Trail Neo model range
View Comparison5'4" – 5'8"
5'7" – 6'1"
5'11" – 6'3"
6'3" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, folding lock mount, rack/fender mounts, Si kickstand mount BB Standard: Bosch, Press Fit Color: Highlighter |
|---|---|
| Fork | SR Suntour XCM, 100mm, coil, 46mm offset Travel: 100mm Spring Type: Coil |
| Bottom Bracket | Bosch, press-fit |
| Headset | Integrated Sealed Bearing, Tapered |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Saddle | Cannondale Ergo XC |
| Seatpost | Cannondale 4, 6061 Alloy, 31.6 x 350mm Type: Rigid |
| Pedals | Not included |
| Grips | Fabric Funguy |

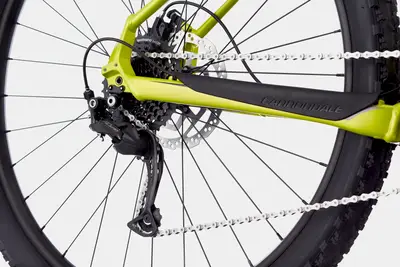

| Rear Derailleur | Shimano Alivio, 9-speed |
|---|---|
| Crank | FSA Bosch E-Bike, 34T |
| Shifters | Shimano Alivio, 9-speed |
| Cassette | Shimano HG200, 11-36, 9-speed |
| Chain | Shimano HG93A, 9-speed |

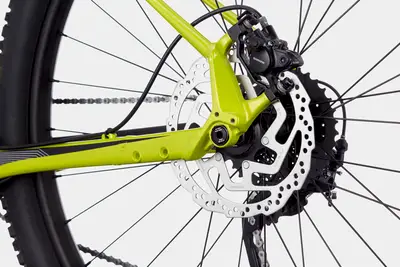

| Brakes | Shimano MT200 hydraulic disc, 180/180mm RT10 rotors Type: Hydraulic Disc |
| Brake Levers | Shimano MT200 hydraulic disc |
| Rims | WTB STX i25 TCS, 32h, tubeless ready |
|---|---|
| Spokes | DT Swiss Champion |
| Front Hub | Shimano HB M4050 |
| Rear Hub | Shimano MT400, 12x148mm thru-axle |
| Tires | Maxxis Ardent, 29 x 2.4", Wire 60TPI Exo |
| Motor | Bosch Performance Line Cruise |
|---|---|
| Battery | Bosch PowerTube 500Wh Recycling Program: ♻️ Call2Recycle |
| Display | Bosch Purion |
| Charger | Bosch 2A |
