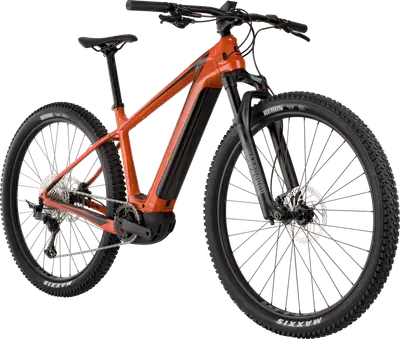

2021 Cannondale
Trail Neo 1
A 29″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.
Compare the full range
Manufacturer Price
€4,699($5,163)| Frame | Aluminum |
|---|---|
| Suspension | Hardtail, 100mm |
| Fork | RockShox 35 Gold RL |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | SLX, Deore |
| Motor | Bosch 600W 85Nm mid-drive |
| Battery | Bosch 625Wh |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full Trail Neo model range
View Comparison5'4" – 5'8"
5'7" – 6'1"
5'11" – 6'3"
6'3" – 6'8"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | SmartForm C1 Alloy, Dual Battery ready, removable downtube battery, SAVE, tapered headtube, internal cable routing, Ai offset drivetrain, 148x12mm thru-axle, post mount disc, KickFlip hidden kickstand mount, skid plate, rack/fender mounts BB Standard: Cannondale AI, 83mm, Press Fit Color: Saber |
|---|---|
| Fork | RockShox 35 Gold RL, 100mm, 51mm offset, 110x15 Travel: 100mm Spring Type: Air |
| Bottom Bracket | Cannondale AI, 83mm, press-fit |
| Headset | Integrated Sealed Bearing, Tapered |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 0° |
| Handlebar | Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm |
| Saddle | Cannondale Ergo XC |
| Seatpost | Cannondale 4, 6061 Alloy, 31.6 x 350mm Type: Rigid |
| Pedals | Not included |
| Grips | Fabric Funguy |
| Rear Derailleur | Shimano SLX, 12-Speed |
|---|---|
| Crank | FSA Bosch E-Bike w/ custom Ai offset, 34T |
| Shifters | Shimano Deore M6100, 12-speed |
| Cassette | Shimano SLX, 11-51, 12-Speed |
| Chain | Shimano Deore 12-speed |
| Brakes | Shimano MT400 hydraulic disc, 180mm RT30 rotors Type: Hydraulic Disc |
| Brake Levers | Shimano MT400 hydraulic disc |
| Rims | WTB STX i30 TCS, 32h tubeless ready |
|---|---|
| Spokes | DT Swiss Champion |
| Front Hub | Shimano MT400, 15x110mm thru-axle |
| Rear Hub | Shimano MT510, 12x148mm thru-axle |
| Tires | Maxxis Rekon, 27.5/29 x 2.6", Wire 60TPI Exo |
| Motor | Bosch Performance Line CX |
|---|---|
| Battery | Bosch PowerTube 625Wh Recycling Program: ♻️ Call2Recycle |
| Display | Bosch Kiox |
| Charger | Bosch 2A |
