2020 Cannondale Trail 7

A 29″ / 29″ aluminum frame hardtail crosscountry bike with modest components, priced near the low end of the Trail model range. Compare the full range

www.cannondale.com

2020 Cannondale Trail 7
MSRP$560
Weight32.8 lbs / 14.9 kg
Front Travel100mm
FrameAluminum
ForkSunTour XCT
Wheels29″ / 29″
Drivetrain3 × 8
GroupsetTourney, Altus
BrakesHydraulic Disc
Where to Buy
Compare

Gearing

3 × 8 — 24 speed

2020 Cannondale Trail 7
33 mph
Similar Bikes
27 mph

The Trail 7 is easier to ride up hills than similar bikes.

Similar bikes won‘t keep up with the Trail 7 while riding downhill or sprinting.


Estimated Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more. Learn more

Spec level →$0$100$200$300$400$500
This bike
Other crosscountry bikes

Reviews

Geometry

Specs
Build
Frame

All-New, SmartForm C3 Alloy, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, BSA-73, SAVE, 1-1/8" headtube, Post mount disc, StraightShot internal cable routing, BSA-73

BB StandardBSA, 73mm, threaded

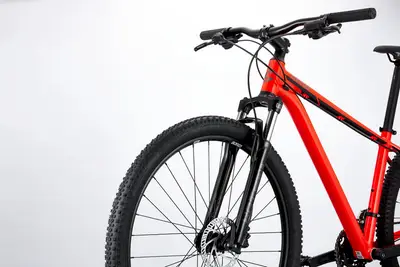

Fork

SR Suntour XCT DS, 100mm, Coil, 42mm offset (27.5") 46mm offset (29")

Bottom Bracket

Sealed Cartridge

Headset

Semi Integrated, 1-1/8"

Stem

6061 Alloy, 31.8, 8°

Handlebar

Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm

Saddle

Cannondale Stage 2

Seatpost

Cannondale 3, 6061 Alloy, 31.6 x 350/400mm

Pedals

Cannondale Platform

Grips

Cannondale Dual-Density

Groupset
Rear Derailleur

Shimano TX800

Front Derailleur

Shimano Altus, 34.9 clamp

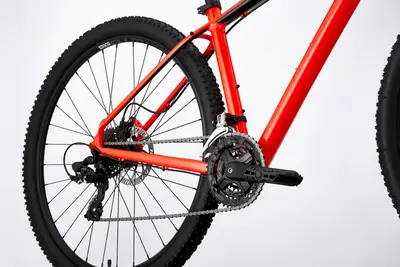

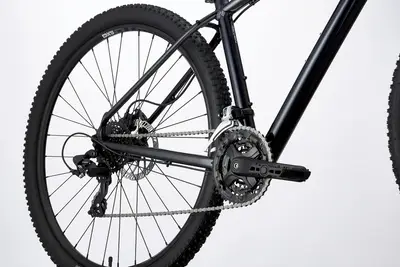

Crank

Prowheel Alloy, 42/32/22

Shifters

Shimano Altus Rapidfire Plus, 3x8

Cassette

Sunrace, 11-34, 8-speed

Chain

KMC Z72, 8-speed

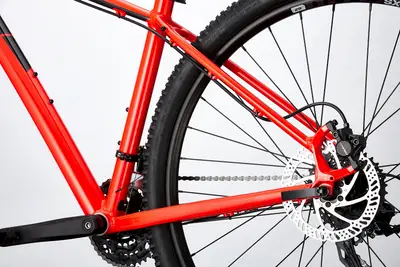

Brakes

Tektro M275 hydro disc, 160/160mm rotors

Brake Levers

Tektro M275 hydro disc

Wheels
Rims

WTB SX19, 32h

Spokes

Stainless Steel, 14g

Front Hub

Sealed Alloy Disc, QR

Rear Hub

Sealed Alloy Disc, QR

Tires

WTB Ranger Comp, 27.5/29 x 2.25", DNA Compound
