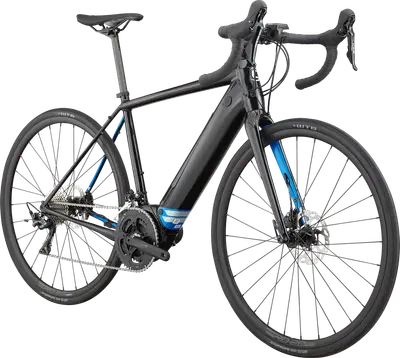

2020 Cannondale Synapse Neo 1

High-end component level aluminum frame gravel ⚡️e-bike

View on cannondale.com

2020 Cannondale Synapse Neo 1
  • MSRP $5,000
  • Frame Aluminum
  • Fork Carbon
  • Wheels 700c
  • Drivetrain 2 × 11
  • Groupset 
    Ultegra, 105
  • Motor Bosch 250W
  • Battery Bosch 500Wh
  • Brakes Hydraulic Disc
Gearing

2 × 11 — 22 speed

2020 Cannondale Synapse Neo 1
36 mph
Similar Bikes
36 mph

The 2020 Synapse Neo 1 is easier to ride up hills than similar bikes.

The 2020 Synapse Neo 1 is geared about the same as similar bikes for riding downhill.

Estimated Spec Level
est. spec level →$0$1,000$2,000$3,000$4,000$5,000
This bike
Other gravel bikes

Estimated spec level of the Synapse Neo 1 compared to other gravel bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.  Learn more »

Geometry
Groupset
Rear DerailleurShimano Ultegra GS
Front DerailleurShimano 105, braze-on
CrankBosch Gen3 w/ custom Ai offset & FSA rings, 50/34
ShiftersShimano Ultegra hydro disc, 2x11
CassetteShimano 105, 11-34, 11-speed
ChainShimano HG601, 11-speed
BrakesShimano 105 hydro disc, 160/160mm RT70 rotors
Brake LeversShimano Ultegra hydro disc
Build
FrameSmartForm C1 Alloy, removable downtube battery, SAVE, Ai, internal cable routing, flat mount brake, 142x12 thru-axle, Si kickstand mount, rack/fender mounts
ForkBallisTec Carbon, 1-1/8" to 1.5" tapered steerer, 55mm offset, flat mount brake, 12x100 thru axle, fender mounts, hidden cable routing
HeadsetIntegrated, 1-1/8 to 1.5", sealed angular contact bearings
StemCannondale 3, 6061 alloy, 7-degree
HandlebarCannondale 3, 6061 alloy, Compact
SaddleFabric Scoop Shallow Sport, steel rails
SeatpostCannondale 2, UD Carbon, 25.4, 350mm (S-M), 400mm (L-XL)
GripsCannondale Grip Bar Tape w/Gel, 3.5mm
Wheels
RimsRD 2.0, 28h
SpokesDT Swiss Champion
Front Hub(F) Formula CL-712 / (R) RXC-142S
Rear Hub(F) Formula CL-712 / (R) RXC-142S
TiresWTB Exposure TCS, 700 x 32c, Distance+ compound, tubeless ready
Electric Components
MotorBosch Active Line Plus 250W w/Cannondale ACR software
BatteryBosch PowerTube 500Wh
RemoteBosch Purion
ChargerBosch 4a
