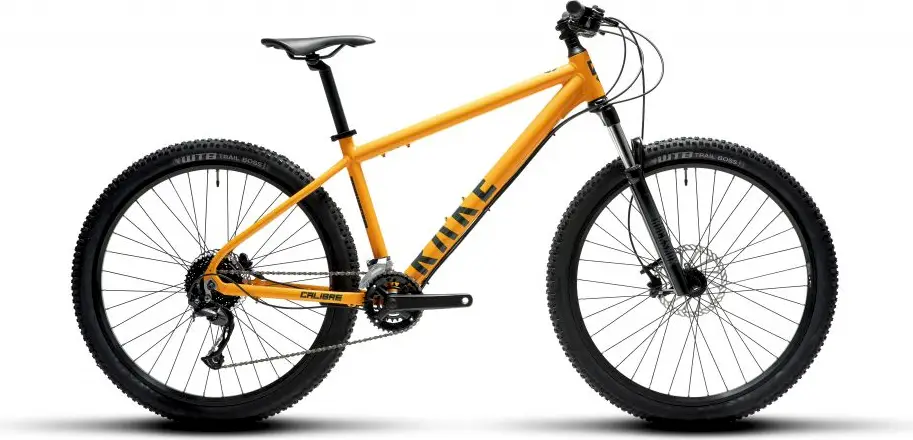

Name: 2024 Calibre Rake 27
Brand: Calibre
Rating: 4.84 (1 reviews)

Front: Clarks M2 Hydraulic disc, Rear: Clarks M2 Hydraulic disc

RockShox FS-Judy TK 27.5" QR 100mm travel

Alu 6061, 27.5", 135 QR, Post-mount disc, 44mm headtube

Calibre Trail, single lock-on, soft compound, integrated bar end

Calibre Trail, Alloy 780mm wide, 31.8mm clamp

Calibre trail, 31.8mm clamp, 45mm extension

WTB Trail Boss Comp 27.5" x 2.25" W110-0784

The Rake 27 is the legacy of the bike that started the Calibre brand, the Two Two. It sums up what Calibre is all about – proper mountain bikes that are accessible for everyone. It is everything you need for getting off road, the complete package. A fun and easy to handle bike that is suitable and capable on any terrain. A solid 6061 Alu frame, refined geometry and a selection of branded, components that you can count on. A steep seat angle keeps your weight forward for improved pedalling efficiency going up hill and a long reach puts you in a central position on the bike when you are descending, this creates a ride that is stable and composed. The 27.5” wheels help to make the bike responsive and nimble. The RockShox Judy forks give you 100mm of travel up front, the WTB Trail Boss tyres give you loads of grip and the Clarks M2 hydraulic brakes give you all the stopping power that you need. Altogether it creates a confident and fun feeling mountain bike.

Frame	Aluminum
Suspension	Hardtail, 100mm
Fork	RockShox Judy
Wheels	27.5″ Aluminum
Drivetrain	2 × 9
Groupset	Alivio
Brakes	Hydraulic Disc

Frame	Alu 6061, 27.5", 135 QR, Post-mount disc, 44mm headtube
Fork	RockShox FS-Judy TK 27.5" QR 100mm travel Travel: 100mm Spring Type: Coil
Bottom Bracket	Square taper 73mm
Headset	Semi-integrated ZS44
Stem	Calibre trail, 31.8mm clamp, 45mm extension
Handlebar	Calibre Trail, Alloy 780mm wide, 31.8mm clamp
Saddle	Calibre Trail
Seatpost	30.9 x 350mm Type: Rigid
Pedals	Flat Pedals
Grips	Calibre Trail, single lock-on, soft compound, integrated bar end

Rear Derailleur	Shimano Alivio 9 speed direct mount
Front Derailleur	Shimano sual-pull 34.9 - 31.8 / 36-14T
Crank	Calibre 175mm 22x36T
Shifters	Shimano Alivio 9 speed for 2x9
Cassette	Shimano 9 speed Acera 11-36T
Chain	KMC X9
Brakes	Front: Clarks M2 Hydraulic disc, Rear: Clarks M2 Hydraulic disc Type: Hydraulic Disc

Rims	27.5", 25mm wide, 32h, alu double wall
Front Hub	Alu, 36h, 6 bolt disc, 100mm QR
Rear Hub	Alu, 36h, 6 bolt disc, 135mm QR
Tires	WTB Trail Boss Comp 27.5" x 2.25" W110-0784
