Front: Clarks CMD-23, Rear: Clarks CMD-23

Alu 6061, 100mm QR, IS disc mount, rack & mudguard mounts, 28.6mm steerer, 50mm offset, 410 A2C

Alu 6061, 27.5”, 138mm spacing for Promovec hub motor, Post-mount disc, 44mm headtube

29”, 25mm wide, 32h front, 36h rear, alu double wall

Calibre Trail, 31.8mm clamp, 60mm extension

The E-Lost Lad is designed to make light work of adventures and commutes, when you load a bike up with bags it can become heavy and cumbersome. The addition of the 250W Promovec hub motor means you can take the struggle out of the ride and enjoy it. The high volume WTB tyres add comfort and mean that you can get off the road and take advantage of bridelways and towpaths. The wide, flared handlebars are designed to put you in a controlled riding position and the relaxed head angle gives you the confidence to ride over any rough terrain. When it’s time to charge, the battery can be left on the bike or easily removed and charged away from the bike.

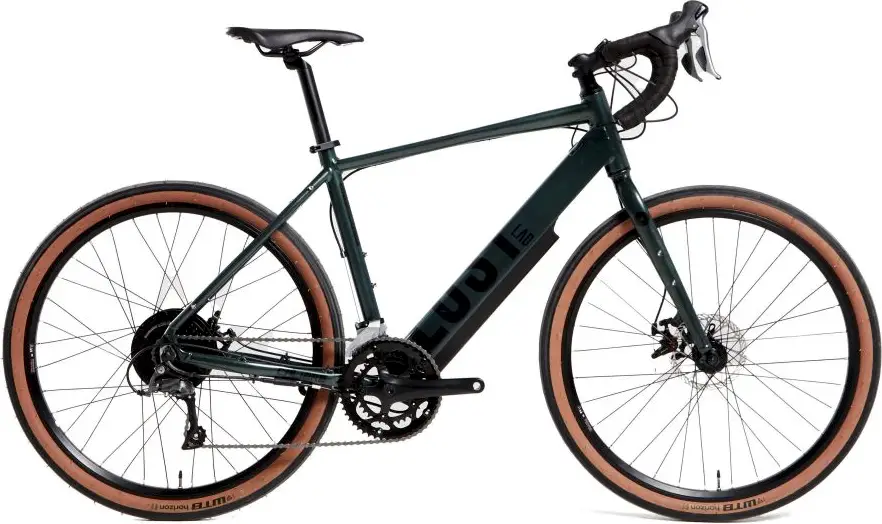

Calibre E-Lost Lad

An aluminum frame gravel e-bike with mid-range components and mechanical disc brakes.

Frame	Aluminum
Suspension	Rigid
Fork	Aluminum
Wheels	700c Aluminum
Drivetrain	2 × 8
Groupset	Claris
Motor	250W hub-drive
Brakes	Mechanical Disc

Frame	Alu 6061, 27.5”, 138mm spacing for Promovec hub motor, Post-mount disc, 44mm headtube
Fork	Alu 6061, 100mm QR, IS disc mount, rack & mudguard mounts, 28.6mm steerer, 50mm offset, 410 A2C
Bottom Bracket	External 73mm BB
Headset	Semi-integrated, ZS44
Stem	Calibre Trail, 31.8mm clamp, 60mm extension
Handlebar	Calibre gravel, Alloy 490 wide
Saddle	Calibre Trail, steel rails
Seatpost	Calibre Trail 30.9 x 350mm Type: Rigid
Pedals	Flat pedals
Grips	Black cork bar tape

Rear Derailleur	Shimano Claris RD-R2000GS 8 speed
Front Derailleur	Shimano Claris
Crank	Calibre 170mm crank, 50x34 chainring
Shifters	Shimano Claris STR2000
Cassette	Shimano 8 speed, 11 - 34
Chain	KMC Z8
Brakes	Front: Clarks CMD-23, Rear: Clarks CMD-23 Type: Mechanical Disc

Rims	29”, 25mm wide, 32h front, 36h rear, alu double wall
Front Hub	Shun Feng 32H QR SFA217F
Rear Hub	Promovec 250W hub motor
Tires	WTB Horizon 650x47 W110-0952

Motor	Promovec 250W hub motor
Battery	Promovec 50762-BL-C DT1 - 36V - 7.8AH
Display	Promovec 50951

2024 CalibreE-Lost Lad

2024 Calibre
E-Lost Lad
