Today’s Deals2025 Bombtrack

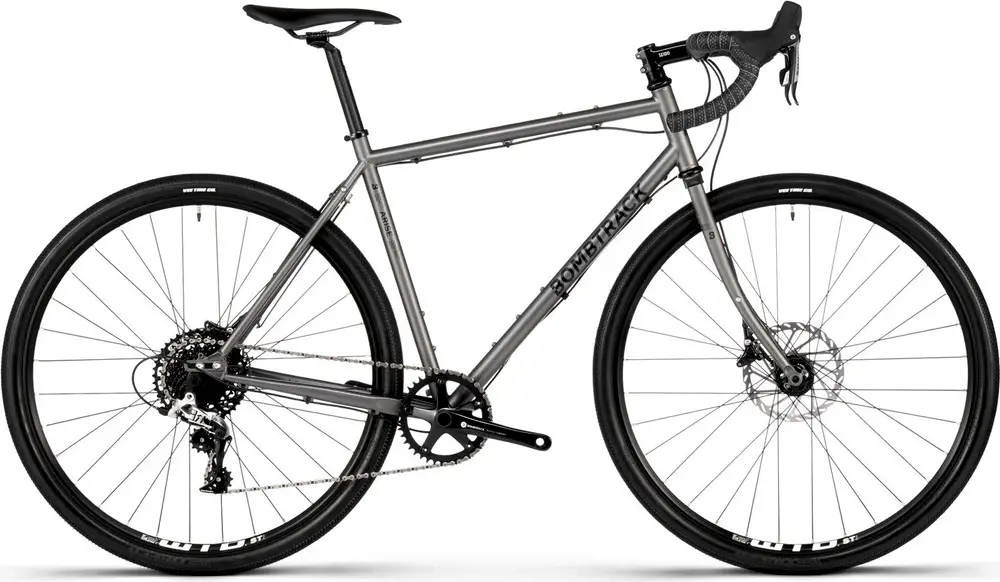

ARISE SG RIVAL
A steel frame gravel bike with upper mid-range components and sram rival hydraulic disc brakes.
Compare the full range
| Frame | Steel |
|---|---|
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 650b / 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Rival |
| Brakes | SRAM Rival Hydraulic Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2023 · Cory Benson
Bombtrack adds AL alloy & SUSpension Beyond adventure bikepacking bikes, upgrades Hook EXT with AXS & Arise SG with Apex...
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell BB Standard: BSA, 68mm, Threaded Tire Clearance: 42c (27.5″) / 42c (700c) Color: Matt Metallic Volcanic Grey |
|---|---|
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub, dynamo cable routing |
| Bottom Bracket | BSA sealed BB, external cups |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Stem | Seido Meander forged aluminium stem, -6° |
| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare |
| Saddle | Bombtrack Dart saddle |
| Seatpost | Bombtrack Beech 27.2 mm x 300 mm Type: Rigid |
| Pedals | - |
| Grips | Bombtrack Escape bar tape |
| Rear Derailleur | SRAM Rival 1, clutch, long cage |
|---|---|
| Front Derailleur | - |
| Crank | Bombtrack TAF19 aluminium crank, 24 mm spindle |
| Shifters | SRAM Rival 1 double tap 1 x 11 |
| Cassette | SRAM PG-1130 11-speed, 11 - 42 T |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Brakes | SRAM Rival flat mount hydraulic disc brakes Type: SRAM Rival Hydraulic Disc |
| Rims | Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h |
|---|---|
| Front Hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear Hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Tires | Front: XS - S Vee Tire Speedster 650B x 38C /, M - XL Vee Tire Speedster 700C x 40C, Rear: XS - S Vee Tire Speedster 650B x 38C /, M - XL Vee Tire Speedster 700C x 40C |
| Disc Rotors | SRAM G2 Cleansweep 180 mm front and 160 mm rear rotor |
| Lights | - |
|---|---|
| Fenders | - |
| Racks | - |
