Today’s Deals2022 Bombtrack

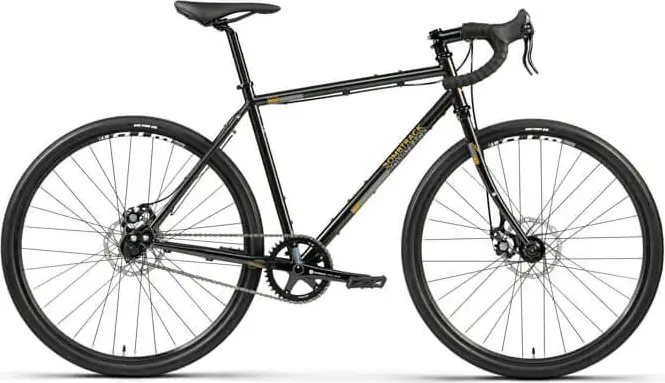

ARISE
A steel frame gravel bike with tektro mechanical disc brakes.
Compare the full range
| Weight | 25.1 lbs |
|---|---|
| Frame | Steel |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 650b / 700c Aluminum |
| Drivetrain | 1 × 8 |
| Brakes | Tektro Mechanical Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2023 · Cory Benson
Bombtrack adds AL alloy & SUSpension Beyond adventure bikepacking bikes, upgrades Hook EXT with AXS & Arise SG with Apex...
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell BB Standard: BSA, 68mm, Threaded Tire Clearance: 42c (27.5″) / 42c (700c) Colors: Glossy Coffee Black; Glossy Metallic Pearl Blue |
|---|---|
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |
| Bottom Bracket | BSA sealed BB, external cups |
| Headset | NECO H282 sealed external aheadset, 1.1/8'' |
| Stem | BOMBTRACK ROAM forged aluminium stem, -7° |
| Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Saddle | BOMBTRACK FUZZ |
| Seatpost | BOMBTRACK BEECH 27.2 mm x 300 mm Type: Rigid |
| Pedals | WELLGO B109N flat pedal |
| Grips | BOMBTRACK CONTROL bar tape |
| Rear Derailleur | - |
|---|---|
| Front Derailleur | - |
| Crank | BOMBTRACK TAF19 aluminium crank, 24 mm spindle |
| Shifters | - |
| Cassette | 16 T heat treated crmo, 1/2'' x 3/32'' |
| Chain | KMC X8 chain, 1/2'' x 3/32'', 98L |
| Brakes | TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors Type: Tektro Mechanical Disc |
| Rims | Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h |
|---|---|
| Front Hub | BOMBTRACK ARC sealed hub, 6-bolt disc |
| Rear Hub | BOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc |
| Tires | Front: XS - S VEE TIRE SPEEDSTER 38-584 /, M - XL VEE TIRE SPEEDSTER 40-622, Rear: XS - S VEE TIRE SPEEDSTER 38-584 /, M - XL VEE TIRE SPEEDSTER 40-622 |
| Lights | - |
|---|---|
| Fenders | - |
| Racks | - |
