Today’s Deals2021 Bombtrack

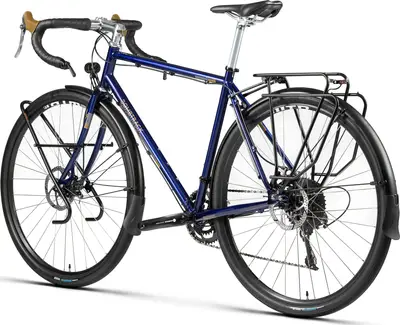

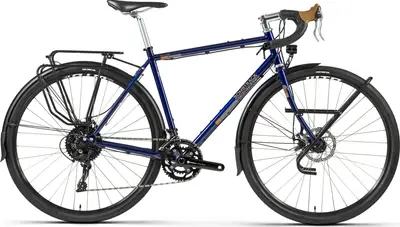

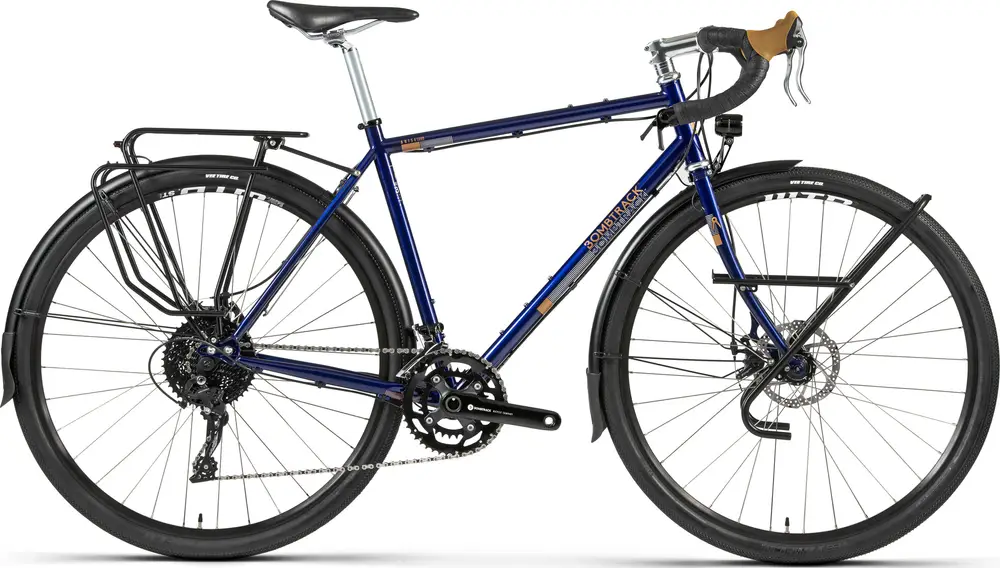

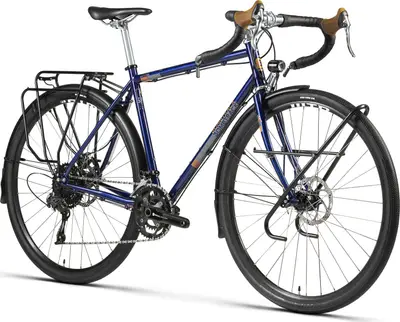

Arise Tour
A steel frame gravel bike with modest components and trp mechanical disc brakes.
Compare the full range
| Weight | 32.4 lbs |
|---|---|
| Frame | Steel |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 650b / 700c Aluminum |
| Drivetrain | 2 × 10 |
| Groupset | microSHIFT |
| Brakes | TRP Mechanical Disc |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2018 · Joseph Delves
Practical and steady on the road and lively off it, the Arise 1 is light, fast, versatile and fun
| Frame | 4130 double butted crmo, heat treated front triangle,TA sliding dropouts, rack / fender mounts,68 mm BSA BB shell BB Standard: BSA, 68mm, Threaded |
|---|---|
| Fork | 4130 crmo, TA, rack / fender mounts, internal hubdynamo cable routing |
| Bottom Bracket | BSA sealed BB, external cups |
| Headset | NECO H282 sealed external aheadset, 1.1/8" |
| Stem | BOMBTRACK ROAM forged aluminium stem, -7° |
| Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Saddle | BOMBTRACK ORIGIN saddle |
| Seatpost | BOMBTRACK BEECH 27.2 mm x 300 mm Type: Rigid |
| Pedals | - |
| Grips | BOMBTRACK ESCAPE bar tape |
| Rear Derailleur | MICROSHIFT RD-M62L, long cage |
|---|---|
| Front Derailleur | MICROSHIFT FD-R552-B |
| Crank | BOMBTRACK AMES forged aluminium crank, 24 mm spindle, steel, subcompact, 46/30T |
| Shifters | MICROSHIFT BS-M10 bar end shifter 2 x 10 |
| Cassette | MICROSHIFT CS-H103 10-speed, 11-42T |
| Chain | KMC X10 chain, 1/2" x 11/128", 114L |
| Brakes | TRP SPYRE C post mount mechanic disc brakes with 160 mm rotors Type: TRP Mechanical Disc |
| Rims | Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h |
|---|---|
| Front Hub | Front: KT dynamo hub, 6-bolt disc, Rear: BOMBTRACK ARC sealed disc hub, 11-speed, 6 bolt disc |
| Rear Hub | Front: KT dynamo hub, 6-bolt disc, Rear: BOMBTRACK ARC sealed disc hub, 11-speed, 6 bolt disc |
| Tires | Front: XS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622, Rear: XS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622 |
| Lights | SUPERNOVA E3 PURE 3 front, E3 TAIL LIGHT 2 rear |
|---|---|
| Fenders | BOMBTRACK PIPE plastic fenders, 50 mm |
| Racks | TUBUS TARA front, LOGO EVO rear |
