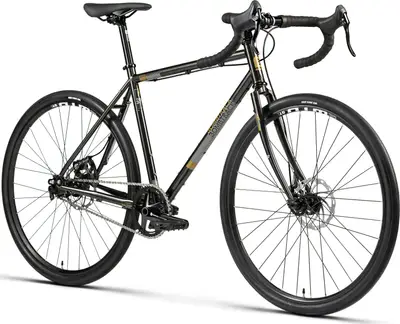

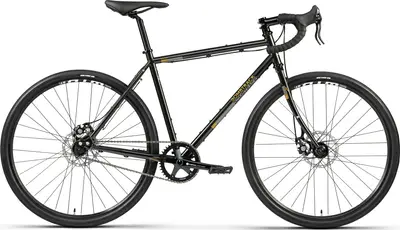

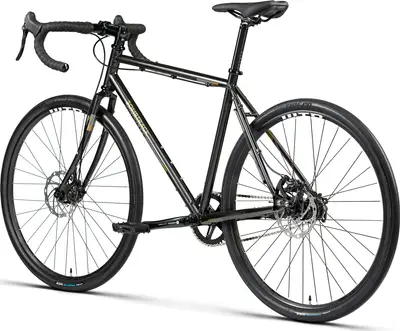

Name: 2021 Bombtrack Arise
Brand: Bombtrack
Rating: 4.76 (1 reviews)

TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors

16T heat treated crmo cog, 1/2" x 11/128"

BOMBTRACK TAF19 aluminium crank, 24 mm spindle, BOMBTRACK RIDGE aluminium chainring, narrow-wide, 42T

4130 crmo, TA, rack / fender mounts, internal hubdynamo cable routing

4130 double butted crmo, heat treated front triangle,TA sliding dropouts, rack / fender mounts,68 mm BSA BB shell

Front: BOMBTRACK ARC sealed disc hub, 6-bolt disc, Rear: BOMBTRACK ARC sealed disc hub, 11-speed, 6-bolt disc

BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare

NECO H282 sealed external aheadset, 1.1/8"

Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h

BOMBTRACK ROAM forged aluminium stem, -7°

Front: XS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622, Rear: XS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622

A simple, versatile bike. Our Arise uses a single-speed drivetrain allowing you to focus on riding not maintenance. Yet with disc brakes, a lively steel frame, and thru-axles it’s no Luddite. Built with fast wheels, broad tyres, and flared bars it’s happy over multiple surfaces, and ready to take on anything from commuting to touring. Infinitely adaptable with fittings for mudguards and a rack, both its frame and hub can also be converted to run an 11-speed drivetrain.

Bombtrack Arise

Bombtrack Arise Geared

Bombtrack Arise SG Apex

Bombtrack Arise Tour

A steel frame gravel bike with tektro mechanical disc brakes.

Practical and steady on the road and lively off it, the Arise 1 is light, fast, versatile and fun

Weight	25.1 lbs
Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	650b / 700c Aluminum
Drivetrain	Single-speed
Brakes	Tektro Mechanical Disc

Frame	4130 double butted crmo, heat treated front triangle,TA sliding dropouts, rack / fender mounts,68 mm BSA BB shell BB Standard: BSA, 68mm, Threaded
Fork	4130 crmo, TA, rack / fender mounts, internal hubdynamo cable routing
Bottom Bracket	BSA sealed BB, external cups
Headset	NECO H282 sealed external aheadset, 1.1/8"
Stem	BOMBTRACK ROAM forged aluminium stem, -7°
Handlebar	BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Saddle	BOMBTRACK ORIGIN saddle
Seatpost	BOMBTRACK BEECH 27.2 mm x 300 mm Type: Rigid
Pedals	WELLGO B109N flat pedal
Grips	BOMBTRACK CONTROL bar tape

Rear Derailleur	-
Front Derailleur	-
Crank	BOMBTRACK TAF19 aluminium crank, 24 mm spindle, BOMBTRACK RIDGE aluminium chainring, narrow-wide, 42T
Shifters	-
Cassette	16T heat treated crmo cog, 1/2" x 11/128"
Chain	KMC X9 chain, 1/2" x 11/128", 98L
Brakes	TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors Type: Tektro Mechanical Disc

Rims	Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h
Front Hub	Front: BOMBTRACK ARC sealed disc hub, 6-bolt disc, Rear: BOMBTRACK ARC sealed disc hub, 11-speed, 6-bolt disc
Rear Hub	Front: BOMBTRACK ARC sealed disc hub, 6-bolt disc, Rear: BOMBTRACK ARC sealed disc hub, 11-speed, 6-bolt disc
Tires	Front: XS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622, Rear: XS - S 650B VEE TIRE SPEEDSTER 38-584M - XL 700C VEE TIRE SPEEDSTER 40-622

Lights	-
Fenders	-
Racks	-
