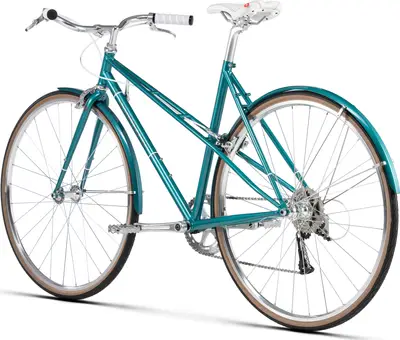

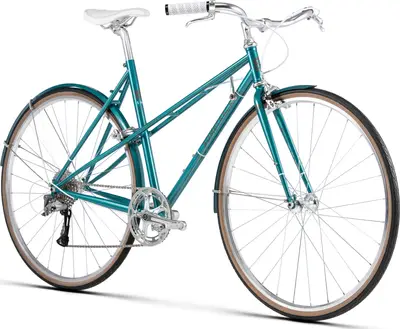

2020 Bombtrack
Trinity
A 700c steel frame general urban bike with mid-range components and rim brakes.
| Weight | 26.0 lbs |
|---|---|
| Frame | Steel |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 9 |
| Groupset | Alivio |
| Brakes | Rim |
For This Bike
| Frame | 4130 crmo front triangle, integrated derailleur hanger, rack / fender mounts, 68 mm BSA shell BB Standard: BSA, Threaded Tire Clearance: 35c |
|---|---|
| Fork | full 4130 crmo fork, 1" steerer, with rack and fender mounts |
| Bottom Bracket | BSA sealed BB, 107 mm, square taper |
| Headset | FSA DURON X sealed external headset, 1" threaded |
| Stem | BOMBTRACK JAUNT forged aluminum quill stem, -17° |
| Handlebar | BOMBTRACK LONGITUDE north road bars, 25.4 mm |
| Saddle | BOMBTRACK SAUNTER saddle |
| Seatpost | BOMBTRACK MYRTLE aluminum seatpost, 27.2 mm x 300 mm Type: Rigid |
| Pedals | BOMBTRACK STROLL alloy pedal |
| Grips | BOMBTRACK SPACE 130 mm grip |
| Rear Derailleur | SHIMANO ALIVIO RD-T4000 rear derailleur, long cage |
|---|---|
| Front Derailleur | - |
| Crank | BOMBTRACK AF22 6061 alloy crank, square taper, BOMBTRACK BIRO alloy, 44 t |
| Shifters | DIA COMPE ENE downtube friction shifter |
| Cassette | SHIMANO CS-HG400-9 9-speed cassette, 11-34T |
| Chain | KMC X9 chain, 1/2" x 11/128", 114L |
| Brakes | TEKTRO R359 alloy caliper brakes Type: Rim |
| Rims | Front: BOMBTRACK DRX double wall, i16, 28h, Rear: BOMBTRACK DRX double wall, i16, 28h |
|---|---|
| Front Hub | Front: BOMBTRACK DROME sealed front hub, 9 mm female bolt axle, Rear: BOMBTRACK DROME sealed cassette hub, 10 mm female bolt axle |
| Rear Hub | Front: BOMBTRACK DROME sealed front hub, 9 mm female bolt axle, Rear: BOMBTRACK DROME sealed cassette hub, 10 mm female bolt axle |
| Tires | Front: KENDA KWICK ROLLER tire, 700C x 28C, Rear: KENDA KWICK ROLLER tire, 700C x 28C |
| Lights | - |
|---|---|
| Fenders | BOMBTRACK STAY alloy fenders 35 mm |
| Racks | - |
