BSA sealed BB, external cups, for 24 mm spindle

SHIMANO BL-M200 post mount hydraulic disc brake with 160 mm rotors

GATES CARBON S300 CDX aluminum crank, 24 mm spindle, GATES CARBON S300 CDX 55T

aluminum QR disc fork, 1.1/2" - 1.1/8" tapered steerer, with fender / rack mounts, internal hub dynamo cable routing

full 4130 crmo, double butted tubing, tapered head tube, sliding dropouts, 68 mm BSA shell

Front: BOMBTRACK TITLE-DISC sealed, 6-bolt disc hub, female axle, Rear: BOMBTRACK TITLE-DISC sealed hub, 11-speed, 6-bolt disc, female axle

BOMBTRACK Origin flat bar, 31.8 mm, 8° backsweep

FSA NO.21/12/44 sealed external aheadset, 1.1/2" - 1.1/8"

Front: BOMBTRACK TX20 double wall, i19, 28h, Rear: BOMBTRACK TX20 double wall, i19, 28h

BOMBTRACK CEDAR aluminum seatpost, 27.2 mm x 300 mm

BOMBTRACK ROAM forged aluminum stem, -7°

Front: WTB HORIZON tire, 650B x 47C, Rear: WTB HORIZON tire, 650B x 47C

Cut through crosstown traffic aboard the Outlaw. Our low maintenance city runaround provides more fun than you could ever expect from such a practical bike. Manoeuvrable wheels, big tyres, wide bars, and a single-speed drivetrain are the elements that make up its DNA. Bolted to the front and taking the weight off your back, its integrated rack can hold a slab of beer or multiple pizzas. With hydraulic brakes and an oil-free Gates carbon belt drive providing silent and reliable running, it’s deceptively simple.

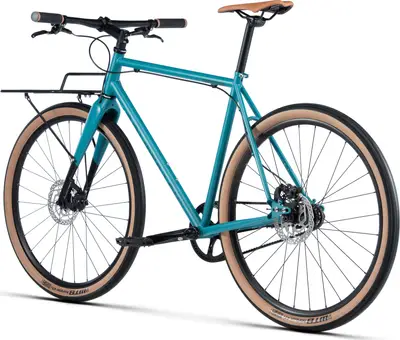

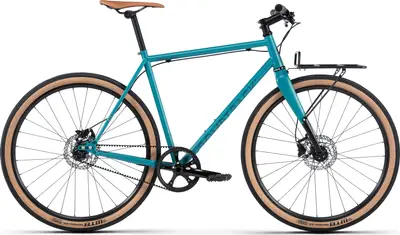

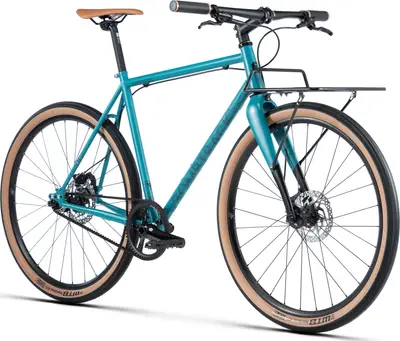

Bombtrack Outlaw

A 650b steel frame commuter bike with high-end components and shimano hydraulic disc brakes.

Frame	Steel
Suspension	Rigid
Fork	Aluminum
Wheels	650b Aluminum
Drivetrain	Belt Drive
Groupset	Gates CDX
Brakes	Shimano Hydraulic Disc

Frame	full 4130 crmo, double butted tubing, tapered head tube, sliding dropouts, 68 mm BSA shell BB Standard: BSA, Threaded Tire Clearance: 47c (27.5″) / 35c (700c)
Fork	aluminum QR disc fork, 1.1/2" - 1.1/8" tapered steerer, with fender / rack mounts, internal hub dynamo cable routing
Bottom Bracket	BSA sealed BB, external cups, for 24 mm spindle
Headset	FSA NO.21/12/44 sealed external aheadset, 1.1/2" - 1.1/8"
Stem	BOMBTRACK ROAM forged aluminum stem, -7°
Handlebar	BOMBTRACK Origin flat bar, 31.8 mm, 8° backsweep
Saddle	BOMBTRACK COMP saddle
Seatpost	BOMBTRACK CEDAR aluminum seatpost, 27.2 mm x 300 mm Type: Rigid
Pedals	ECLAT SLASH flatpedal
Grips	BOMBTRACK TAB 129 mm grips

Crank	GATES CARBON S300 CDX aluminum crank, 24 mm spindle, GATES CARBON S300 CDX 55T
Shifters	-
Cassette	GATES CARBON CDX 20T cog
Chain	GATES CARBON CDN 115T belt
Brakes	SHIMANO BL-M200 post mount hydraulic disc brake with 160 mm rotors Type: Shimano Hydraulic Disc

Lights	-
Fenders	-
Racks	BOMBTRACK DECK frontrack

Rims	Front: BOMBTRACK TX20 double wall, i19, 28h, Rear: BOMBTRACK TX20 double wall, i19, 28h
Front Hub	Front: BOMBTRACK TITLE-DISC sealed, 6-bolt disc hub, female axle, Rear: BOMBTRACK TITLE-DISC sealed hub, 11-speed, 6-bolt disc, female axle
Rear Hub	Front: BOMBTRACK TITLE-DISC sealed, 6-bolt disc hub, female axle, Rear: BOMBTRACK TITLE-DISC sealed hub, 11-speed, 6-bolt disc, female axle
Tires	Front: WTB HORIZON tire, 650B x 47C, Rear: WTB HORIZON tire, 650B x 47C

2020 BombtrackOutlaw

2020 Bombtrack
Outlaw
