Beyond

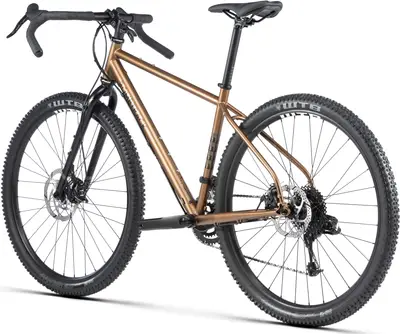

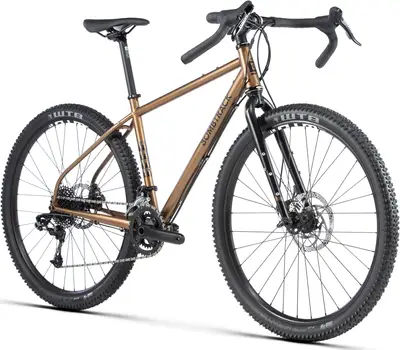

A steel frame gravel bike with upper mid-range components and mechanical disc brakes.
Compare the full range
Frame | Steel |
---|---|
Suspension | Rigid |
Fork | Steel |
Wheels | 27.5″ / 29″ Aluminum |
Drivetrain | 2 × 10 |
Groupset | GX, X5 |
Brakes | Mechanical Disc |
For This Bike
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2019 · Cass Gilbert
2020 sees a few tweaks to Bombtrack's big-wheeled Beyond+ ADV, including three-pack cage mounts on each seatstay. Here are all the details, the full build kit, and a few thoughts on how it rides.
Feb 2019
The Beyond+ ADV is the most extreme of the Bombtrack ‘Beyond’ adventure series of bikes, with super fat 3" tyres on broad 29" rims double butted steel frame with a carbon fork and the much-discussed Jones Loop bar for front end control. The fat 29x3” tyres that will make light work of most off-road conditions you might find yourself in and proved a surprisingly fun bike to ride. How to go bikepacking: A beginner's guide to getting started The best gravel and adventure bikes you can buy for under £1000 Can you spend a night in the hills and still make it to work on time?
Frame | double butted crmo tubing, with cage, rack and fender mounts, replaceable hanger, 73 mm BSA shell BB Standard: BSA, 68mm, Threaded Tire Clearance: 2.1" |
---|---|
Fork | 4130 crmo, tapered double butted blades, 1.1/2" - 1.1/8" tapered steerer, with fender / rack / triple cage mounts |
Bottom Bracket | BSA sealed BB, external |
Headset | FSA NO.21/12/44 sealed external aheadset, 1.1/2" - 1.1/8" |
Stem | BOMBTRACK WANDER forged aluminum stem, +17° |
Handlebar | BOMBTRACK BEYOND travel bar, 31.8 mm, 30° flare |
Saddle | BOMBTRACK ORIGIN saddle |
Seatpost | BOMBTRACK BEECH aluminum seatpost, 27.2 mm x 400 mm Type: Rigid |
Pedals | - |
Grips | BOMBTRACK COMMAND bar tape |
Rear Derailleur | SRAM GX rear derailleur, long cage |
---|---|
Front Derailleur | SRAM X5 front derailleur, high clamp |
Crank | BOMBTRACK AMES forged aluminum crank, 24 mm spindle, Aluminium / Steel, 42/28T |
Shifters | SRAM Apex double tap 2 x 10 |
Cassette | SRAM PG-1020 10-speed cassette, 11-36T |
Chain | KMC X10 chain, 1/2" x 11/128", 114L |
Brakes | TRP SPYRE C mechanic disc brakes with 180 mm F / 160 mm R rotors Type: Mechanical Disc |
Rims | Front: WTB ST i23 double wall, TCS 2.0, 32h, Rear: WTB ST i23 double wall, TCS 2.0, 32h |
---|---|
Front Hub | Front: BOMBTRACK TITLE-DISC sealed, 6-bolt disc hub, 15 x 100 mm thru-axle, Rear: BOMBTRACK TITLE-DISC sealed hub,11-speed, 6-bolt disc, 12 x 142 mm thru-axle |
Rear Hub | Front: BOMBTRACK TITLE-DISC sealed, 6-bolt disc hub, 15 x 100 mm thru-axle, Rear: BOMBTRACK TITLE-DISC sealed hub,11-speed, 6-bolt disc, 12 x 142 mm thru-axle |
Tires | Front: XS - S WTB RANGER TCS Light folding tire, 27.5" x 2.0", M - XL WTB RANGER TCS Light folding tire, 29" x 2.0", Rear: XS - S WTB RANGER TCS Light folding tire, 27.5" x 2.0", M - XL WTB RANGER TCS Light folding tire, 29" x 2.0" |
Lights | - |
---|---|
Fenders | - |
Racks | - |
