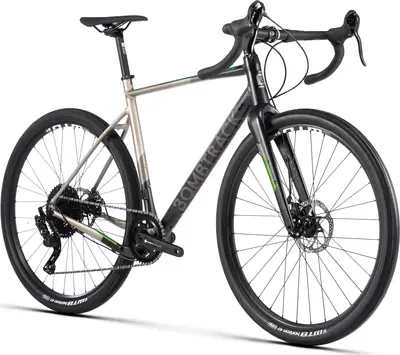

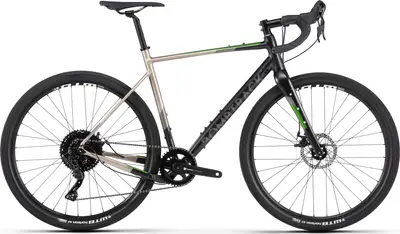

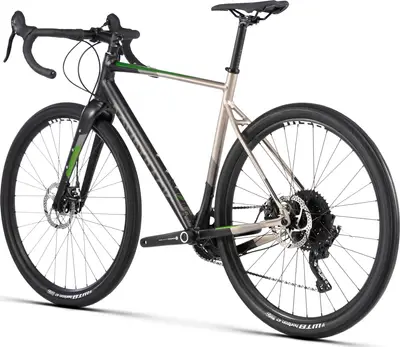

2020 Bombtrack
Audax AL
An aluminum frame endurance bike with modest components and mechanical disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 650c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | microSHIFT |
| Brakes | Mechanical Disc |
For This Bike
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2019 · Cass Gilbert
We share first impressions on Bombtrack's 2020 Audax range of bikes, from a bikepacker's perspective...
Jul 2018 · Stu Kerton
A great bike for racking up the miles and enjoying the countryside but it could do with better brakes
| Frame | 6061-T6 double butted aluminum, tapered head tube, TA dropouts, replaceable hanger, 86.5 mm T47 shell BB Standard: T47, Threaded Tire Clearance: 50c (27.5″) / 35c (700c) |
|---|---|
| Fork | full carbon, TA disc fork, 1.1/2" - 1.1/8" tapered steerer, with fender / cage mounts |
| Bottom Bracket | T47 sealed BB for 30 mm spindle |
| Headset | FSA ORBIT C40 sealed integrated aheadset, 1.1/2" - 1.1/8" |
| Stem | BOMBTRACK ROAM forged aluminum stem, -7° |
| Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Saddle | BOMBTRACK COMP saddle |
| Seatpost | BOMBTRACK BEECH aluminum seatpost, 27.2 mm x 300 mm Type: Rigid |
| Pedals | - |
| Grips | BOMBTRACK COMMAND bar tape |
| Rear Derailleur | MICROSHIFT RD-M665M rear derailleur, clutch, medium cage |
|---|---|
| Front Derailleur | - |
| Crank | BOMBTRACK LYER forged aluminum crank, direct mount interface, 30 mm spindle, CNC machined aluminum, narrow-wide, 40T, 1/2" x 11/128" |
| Shifters | MICROSHIFT SB-M110 DUAL CONTROL LEVER 1 x 11 |
| Cassette | MICROSHIFT CS-HG113 11-speed cassette, 11-46T |
| Chain | KMC X10 chain, 1/2" x 11/128", 114L |
| Brakes | TRP Spyre C flat-mount disc brakes with 160 mm rotors Type: Mechanical Disc |
| Rims | Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h |
|---|---|
| Front Hub | Front: BOMBTRACK ORIGIN sealed disc hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle |
| Rear Hub | Front: BOMBTRACK ORIGIN sealed disc hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle |
| Tires | Front: WTB HORIZON tire, 650B x 47C, Rear: WTB HORIZON tire, 650B x 47C |
| Lights | - |
|---|---|
| Fenders | - |
| Racks | - |
