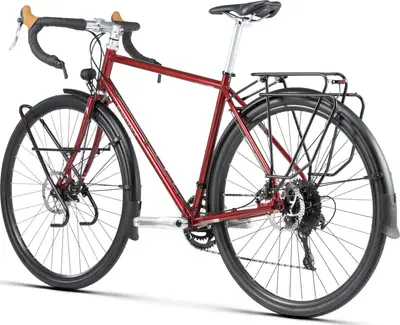

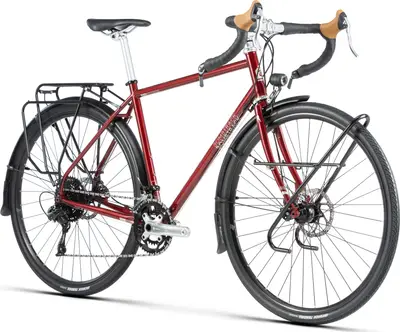

Arise Tour
A steel frame gravel bike with modest components and mechanical disc brakes.
Compare the full range
Frame | Steel |
---|---|
Suspension | Rigid |
Fork | Steel |
Wheels | 700c Aluminum |
Drivetrain | 2 × 10 |
Groupset | microSHIFT |
Brakes | Mechanical Disc |
For This Bike
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2018 · Joseph Delves
Practical and steady on the road and lively off it, the Arise 1 is light, fast, versatile and fun
Frame | 4130 double butted crmo frame,heat treated front triangle, replaceable hanger, TA dropouts, rack / fender mounts, 68 mm BSA shell BB Standard: BSA, 68mm, Threaded Tire Clearance: 40c |
---|---|
Fork | 4130 crmo, tapered double butted blades, TA, with rack / fender mounts |
Bottom Bracket | BSA sealed BB, external cups |
Headset | FSA ORBIT MX sealed external aheadset, 1.1/8" |
Stem | BOMBTRACK ROAM forged aluminum stem, -7° |
Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
Saddle | BOMBTRACK ORIGIN saddle |
Seatpost | BOMBTRACK CEDAR aluminum seatpost, 27.2 mm x 300 mm Type: Rigid |
Pedals | - |
Grips | BOMBTRACK ESCAPE bar tape |
Rear Derailleur | MICROSHIFT RD-M62L rear derailleur, long cage |
---|---|
Front Derailleur | MICROSHIFT FD-R552-B front derailleur |
Crank | BOMBTRACK AMES forged aluminum crank, 24 mm spindle, steel, subcompact, 46/30T, 1/2" x 11/128" |
Shifters | MICROSHIFT BS-M10 bar end shifter 2 x 10 |
Cassette | MICROSHIFT CS-H103 10-speed cassette, 11-42T |
Chain | KMC X10 chain, 1/2" x 11/128", 114L |
Brakes | TRP SPYRE C post mount mechanic disc brakes with 160 mm rotors Type: Mechanical Disc |
Rims | Front: BOMBTRACK TX20 double wall, i19, 36h, Rear: BOMBTRACK TX20 double wall, i19, 36h |
---|---|
Front Hub | Front: KT dynamo hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle |
Rear Hub | Front: KT dynamo hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle |
Tires | Front: KENDA KWICK TENDRIL tire, 700C x 35C, Rear: KENDA KWICK TENDRIL tire, 700C x 35C |
Lights | SUPERNOVA E3 PURE 3 front, E3 TAIL LIGHT 2 rear |
---|---|
Fenders | BOMBTRACK PIPE plastic fenders, 50 mm |
Racks | TUBUS TARA front, LOGO EVO rear |
