2020 Bombtrack
Arise Geared

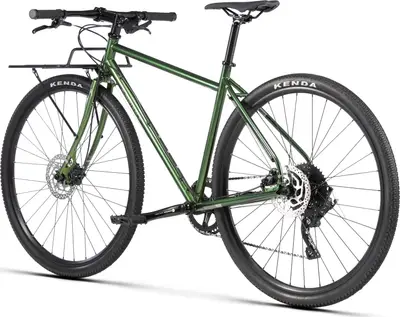

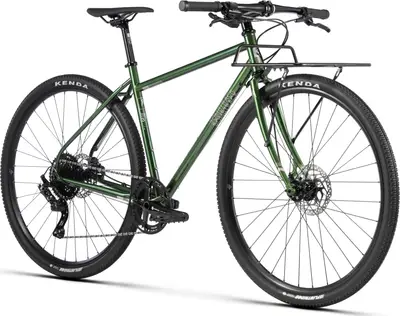

A steel frame gravel bike with modest components and hydraulic disc brakes.
Compare the full range
| Frame | Steel |
|---|---|
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | microSHIFT, Deore |
| Brakes | Hydraulic Disc |
For This Bike
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2018 · Joseph Delves
Practical and steady on the road and lively off it, the Arise 1 is light, fast, versatile and fun
| Frame | 4130 double butted crmo frame,heat treated front triangle, replaceable hanger, TA dropouts, rack / fender mounts, 68 mm BSA shell BB Standard: BSA, 68mm, Threaded Tire Clearance: 40c |
|---|---|
| Fork | 4130 crmo, tapered double butted blades, TA, with rack / fender mounts |
| Bottom Bracket | BSA sealed BB, external cups |
| Headset | NECO H282 sealed external aheadset, 1.1/8" |
| Stem | BOMBTRACK ROAM forged aluminum stem, -7° |
| Handlebar | BOMBTRACK Origin flat bar, 31.8 mm, 8° backsweep |
| Saddle | BOMBTRACK COMP saddle |
| Seatpost | BOMBTRACK BEECH aluminum seatpost, 27.2 mm x 300 mm Type: Rigid |
| Pedals | WELLGO B109N flat pedal |
| Grips | BOMBTRACK LOCK 145 mm grips |
| Rear Derailleur | MICROSHIFT RD-M665M rear derailleur, clutch, medium cage |
|---|---|
| Front Derailleur | - |
| Crank | BOMBTRACK TAF19 aluminum crank, 24 mm spindle, BOMBTRACK RIDGE aluminum chainring, narrow-wide, 42T, 1/2" x 11/128", incl. Chainguard |
| Shifters | SHIMANO DEORE SL-M6000 RAPIDFIRE PLUS shifter 1 x 10 |
| Cassette | MICROSHIFT CS-H103 10-speed cassette, 11-42T |
| Chain | KMC X10 chain, 1/2" x 11/128", 114L |
| Brakes | SHIMANO BR-M200 post mount hydraulic disc brake with 160 mm rotors Type: Hydraulic Disc |
| Rims | Front: BOMBTRACK TX20 double wall, i19, 32h, Rear: BOMBTRACK TX20 double wall, i19, 32h |
|---|---|
| Front Hub | Front: BOMBTRACK ORIGIN sealed disc hub, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle |
| Rear Hub | Front: BOMBTRACK ORIGIN sealed disc hub, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle |
| Tires | Front: KENDA FLINTRIDGE tire, 700C x 40C, Rear: KENDA FLINTRIDGE tire, 700C x 40C |
| Lights | - |
|---|---|
| Fenders | - |
| Racks | BOMBTRACK DECK frontrack |
