2020 Bombtrack
Arise 2

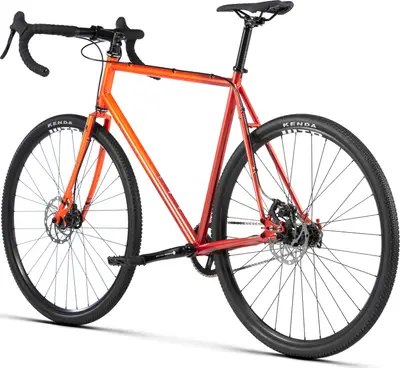

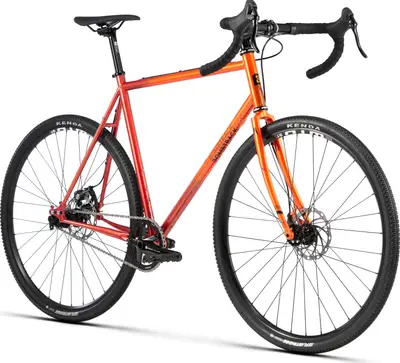

A steel frame gravel bike with mechanical disc brakes.
Compare the full range
| Weight | 23.1 lbs |
|---|---|
| Frame | Steel |
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 700c Aluminum |
| Drivetrain | Single-speed |
| Brakes | Mechanical Disc |
For This Bike
4'11" – 5'5"
5'2" – 5'7"
5'4" – 5'10"
5'7" – 6'1"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2018 · Joseph Delves
Practical and steady on the road and lively off it, the Arise 1 is light, fast, versatile and fun
| Frame | 4130 double butted crmo frame,heat treated front triangle, replaceable hanger, TA dropouts, rack / fender mounts, 68 mm BSA shell BB Standard: BSA, 68mm, Threaded Tire Clearance: 35c |
|---|---|
| Fork | 4130 crmo, tapered double butted blades, TA, with rack / fender mounts |
| Bottom Bracket | BSA sealed BB, external cups |
| Headset | FSA ORBIT MX sealed external aheadset, 1.1/8" |
| Stem | BOMBTRACK ROAM forged aluminum stem, -7° |
| Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Saddle | BOMBTRACK Comp saddle |
| Seatpost | BOMBTRACK BEECH aluminium seatpost, 27.2 mm x 300 mm Type: Rigid |
| Pedals | WELLGO B109N flat pedal |
| Grips | BOMBTRACK CONTROL bar tape |
| Rear Derailleur | - |
|---|---|
| Front Derailleur | - |
| Crank | BOMBTRACK TAF19 aluminum crank, 24 mm spindle, BOMBTRACK RIDGE aluminum chainring, narrow-wide, 42T, 1/2" x 11/128" |
| Shifters | - |
| Cassette | 16T heat treated crmo cog, 1/2" x 11/128" |
| Chain | KMC X9 chain, 1/2" x 11/128", 98L |
| Brakes | TEKTRO MIRA post mount mechanic disc brakes with 160 mm rotors Type: Mechanical Disc |
| Rims | Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h |
|---|---|
| Front Hub | Front: BOMBTRACK ORIGIN sealed disc hub, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle |
| Rear Hub | Front: BOMBTRACK ORIGIN sealed disc hub, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 12 x 142 mm thru-axle |
| Tires | Front: KENDA FLINTRIDGE tire, 700C x 35C, Rear: KENDA FLINTRIDGE tire, 700C x 35C |
| Lights | - |
|---|---|
| Fenders | - |
| Racks | - |
