2020 Bombtrack
Arise 1

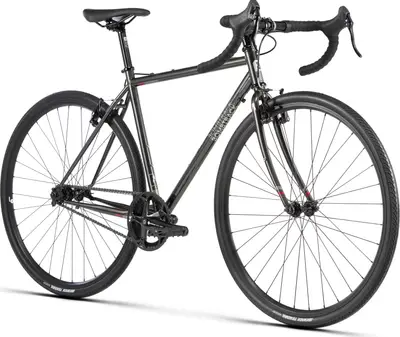

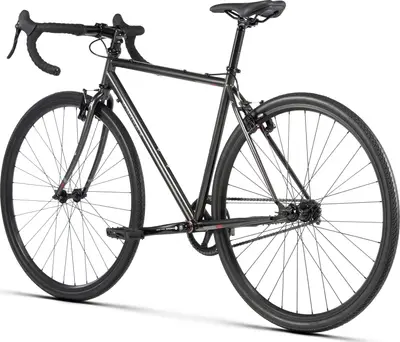

A steel frame gravel bike with rim brakes.
Compare the full range
| Frame | Steel |
|---|---|
| Suspension | Rigid |
| Fork | Steel |
| Wheels | 700c Aluminum |
| Drivetrain | Single-speed |
| Brakes | Rim |
For This Bike
4'11" – 5'5"
5'2" – 5'7"
5'4" – 5'10"
5'7" – 6'1"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Feb 2018 · Joseph Delves
Practical and steady on the road and lively off it, the Arise 1 is light, fast, versatile and fun
| Frame | 4130 double butted crmo frame, integrated derailleur hanger, rack / fender mounts, 68 mm BSA shell BB Standard: BSA, 68mm, Threaded Tire Clearance: 35c |
|---|---|
| Fork | 4130 crmo, tapered double butted blades with rack / fender mounts |
| Bottom Bracket | BSA sealed BB, 118 mm, square taper |
| Headset | NECO H282 sealed external aheadset, 1.1/8" |
| Stem | BOMBTRACK ROAM forged aluminum stem, -7° |
| Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
| Saddle | BOMBTRACK ORIGIN saddle |
| Seatpost | BOMBTRACK BEECH aluminum seatpost, 27.2 mm x 300 mm Type: Rigid |
| Pedals | WELLGO B109N flat pedal |
| Grips | BOMBTRACK CONTROL bar tape |
| Rear Derailleur | - |
|---|---|
| Front Derailleur | - |
| Crank | BOMBTRACK AF19 aluminum crank, square taper, BOMBTRACK CREST aluminum chainring, 42T, 1/2" x 1/8" |
| Shifters | - |
| Cassette | 16T heat treated crmo cog, 1/2" x 1/8" |
| Chain | KMC Z1 chain, 1/2" x 1/8", 98L |
| Brakes | TEKTRO RX6 3D forged mini V-brakes with cartridge pad holder Type: Rim |
| Rims | Front: BOMBTRACK A-M1 double wall, i19, 32h, Rear: BOMBTRACK A-M1 double wall, i19, 32h |
|---|---|
| Front Hub | Front: BOMBTRACK TITLE sealed hub, regular 3/8" axle, Rear: BOMBTRACK TITLE sealed hub, 11-speed, regular 3/8" axle |
| Rear Hub | Front: BOMBTRACK TITLE sealed hub, regular 3/8" axle, Rear: BOMBTRACK TITLE sealed hub, 11-speed, regular 3/8" axle |
| Tires | Front: KENDA KWICK TENDRIL tire, 700C x 35C, Rear: KENDA KWICK TENDRIL tire, 700C x 35C |
| Lights | - |
|---|---|
| Fenders | - |
| Racks | - |
