SHIMANO CS-HG400-9 9-speed cassette, 11-34T

BOMBTRACK AF22 6061 alloy crank, square taper, BOMBTRACK BIRO alloy, 44 t

full 4130 crmo fork, 1" steerer, with rack and fender mounts

4130 crmo front triangle, integrated derailleur hanger, rack / fender mounts, 68 mm BSA shell

Front: BOMBTRACK DROME sealed front hub, 9 mm female bolt axle, Rear: BOMBTRACK DROME sealed cassette hub, 10 mm female bolt axle

BOMBTRACK LONGITUDE north road bars, 25.4 mm

FSA DURON X sealed external headset, 1" threaded

SHIMANO ALIVIO RD-T4000 rear derailleur, long cage

Front: BOMBTRACK DRX double wall, i16, 28h, Rear: BOMBTRACK DRX double wall, i16, 28h

BOMBTRACK MYRTLE aluminum seatpost, 27.2 mm x 300 mm

BOMBTRACK JAUNT forged aluminum quill stem, -17°

Front: KENDA KWICK ROLLER tire, 700C x 28C, Rear: KENDA KWICK ROLLER tire, 700C x 28C

The Trinity is all about riding in style, with its clean lines, subtle colors, polished parts, matching saddle and grips all giving the bike a timeless look. This bike is designed in a classic style Mixte frame, with the twin top tubes being split at the seat tube, as they connect the dropout to the head tube. This makes the frame very strong and the ride more stable as a result. The slim tubing is built to be a balance between being fun and sporty yet comfortable to ride

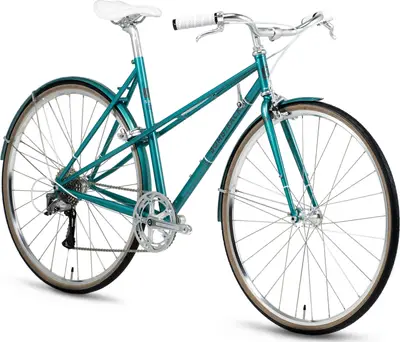

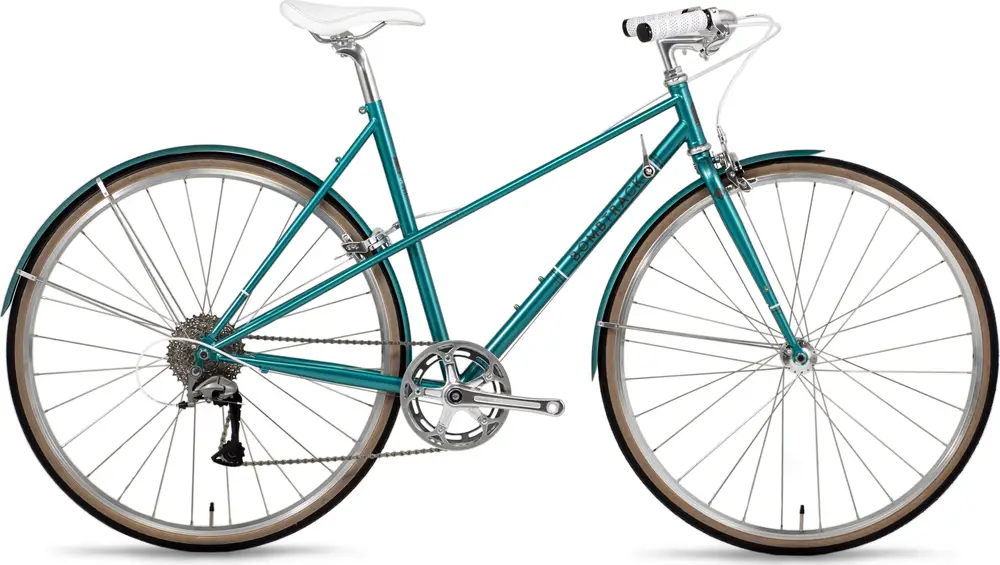

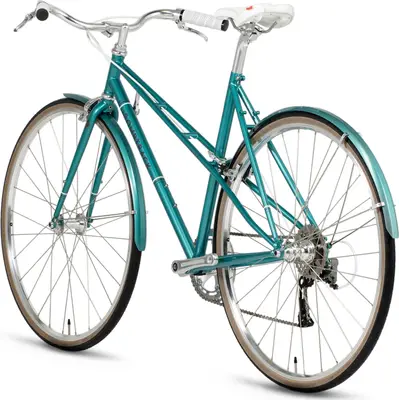

Bombtrack Trinity - Teal

A 700c steel frame general urban bike with mid-range components and tektro rim brakes.

Frame	Steel
Suspension	Rigid
Fork	Steel
Wheels	700c Aluminum
Drivetrain	1 × 9
Groupset	Alivio
Brakes	Tektro Rim

Frame	4130 crmo front triangle, integrated derailleur hanger, rack / fender mounts, 68 mm BSA shell BB Standard: BSA, Threaded Tire Clearance: 35c
Fork	full 4130 crmo fork, 1" steerer, with rack and fender mounts
Bottom Bracket	BSA sealed BB, 107 mm, square taper
Headset	FSA DURON X sealed external headset, 1" threaded
Stem	BOMBTRACK JAUNT forged aluminum quill stem, -17°
Handlebar	BOMBTRACK LONGITUDE north road bars, 25.4 mm
Saddle	BOMBTRACK SAUNTER saddle
Seatpost	BOMBTRACK MYRTLE aluminum seatpost, 27.2 mm x 300 mm Type: Rigid
Pedals	BOMBTRACK STROLL alloy pedal
Grips	BOMBTRACK SPACE 130 mm grip

Rear Derailleur	SHIMANO ALIVIO RD-T4000 rear derailleur, long cage
Front Derailleur	-
Crank	BOMBTRACK AF22 6061 alloy crank, square taper, BOMBTRACK BIRO alloy, 44 t
Shifters	DIA COMPE ENE downtube friction shifter
Cassette	SHIMANO CS-HG400-9 9-speed cassette, 11-34T
Chain	KMC X9 chain, 1/2" x 11/128", 114L
Brakes	TEKTRO R359 alloy caliper brakes Type: Tektro Rim

Lights	-
Fenders	BOMBTRACK STAY alloy fenders 35 mm
Racks	-

Rims	Front: BOMBTRACK DRX double wall, i16, 28h, Rear: BOMBTRACK DRX double wall, i16, 28h
Front Hub	Front: BOMBTRACK DROME sealed front hub, 9 mm female bolt axle, Rear: BOMBTRACK DROME sealed cassette hub, 10 mm female bolt axle
Rear Hub	Front: BOMBTRACK DROME sealed front hub, 9 mm female bolt axle, Rear: BOMBTRACK DROME sealed cassette hub, 10 mm female bolt axle
Tires	Front: KENDA KWICK ROLLER tire, 700C x 28C, Rear: KENDA KWICK ROLLER tire, 700C x 28C

2019 BombtrackTrinity - Teal

2019 Bombtrack
Trinity - Teal
