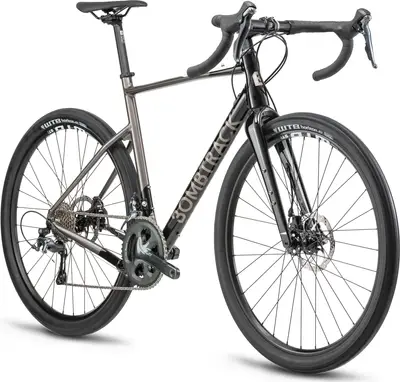

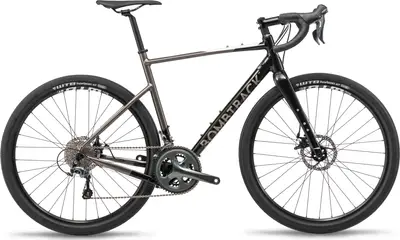

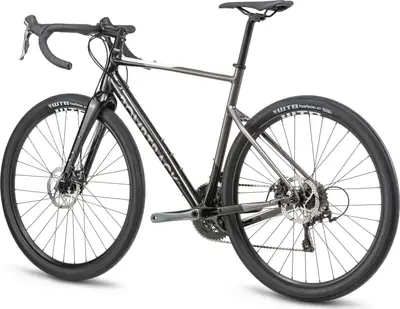

Audax AL
An aluminum frame endurance bike with mid-range components and mechanical disc brakes.
Compare the full range
Weight | 22.7 lbs |
---|---|
Frame | Aluminum |
Suspension | Rigid |
Fork | Carbon |
Wheels | 650c Aluminum |
Drivetrain | 2 × 10 |
Groupset | Tiagra |
Brakes | Mechanical Disc |
For This Bike
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2019 · Cass Gilbert
We share first impressions on Bombtrack's 2020 Audax range of bikes, from a bikepacker's perspective...
Jul 2018 · Stu Kerton
A great bike for racking up the miles and enjoying the countryside but it could do with better brakes
Frame | 6061-T6 double butted alloy, tapered head tube, TA dropouts, replaceable hanger, PF86 shell BB Standard: BB86/BB92, Press Fit Tire Clearance: 50c (27.5″) / 35c (700c) |
---|---|
Fork | full carbon, TA disc fork, 1.1/2" - 1.1/8" tapered steerer, with fender / cage mounts |
Bottom Bracket | SHIMANO BB86 |
Headset | FSA ORBIT C40 sealed integrated aheadset, 1.1/2" - 1.1/8" |
Stem | BOMBTRACK ROAM forged alloy stem, -7° |
Handlebar | BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare |
Saddle | BOMBTRACK COMP saddle |
Seatpost | BOMBTRACK BEECH alloy seatpost, 27.2 mm x 300 mm Type: Rigid |
Pedals | - |
Grips | BOMBTRACK COMMAND bar tape |
Rear Derailleur | SHIMANO TIAGRA RD-4700-GS rear derailleur, medium cage |
---|---|
Front Derailleur | SHIMANO TIAGRA FD-4700-F front derailleur |
Crank | SHIMANO TIAGRA FC-4700 alloy crank, SHIMANO TIAGRA alloy, compact, 50/34T, 1/2" x 11/128" |
Shifters | SHIMANO TIAGRA ST-4700 STI 2 x 10 |
Cassette | SHIMANO TIAGRA CS-HG500-10 10-speed cassette, 11-32T |
Chain | KMC X10EL chain, 1/2" x 11/128", 114L |
Brakes | TRP Spyre C flat-mount disc brakes, 160 mm rotors Type: Mechanical Disc |
Rims | Front: WTB ST i19 double wall, TCS, 32h, Rear: WTB ST i19 double wall, TCS, 32h |
---|---|
Front Hub | Front: BOMBTRACK ORIGIN sealed disc hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle |
Rear Hub | Front: BOMBTRACK ORIGIN sealed disc hub, 6-bolt disc, 12 x 100 mm thru-axle, Rear: BOMBTRACK ORIGIN sealed disc hub, 11-speed, 6-bolt disc, 12 x 142 mm thru-axle |
Tires | Front: WTB HORIZON tire, 650B x 47C, Rear: WTB HORIZON tire, 650B x 47C |
Lights | - |
---|---|
Fenders | - |
Racks | - |
