Front: SRAM Apex Hydraulic Disc, Rear: SRAM Apex Hydraulic Disc

Boardman ADV-E full Carbon, 1 1/2" to 1 1/8" tapered steerer

Boardman ADV-E 6061 Aluminium with Smooth Welds

Boardman 6 Bolt Disc, 100x12mm Thru Axle front, 142x12mm Thru Axle rear

Boardman Alloy, 400mm size SM, 420mm size MD, 100mm size LG & XL

Boardman Alloy, 80mm size SM & MD, 90mm size LG, 100mm size XL

Overview
Whether you want to ride further or faster or want a bit of help up the hills, an e-bike is a great option. The Boardman ADV 8.9e is a fast and practical electric Adventure bike, which uses the sophisticated, German engineered Fazua Evation drive system to offer smooth and powerful electric assistance as you pedal. We've designed the ADV 8.9e to offer maximum versatility for UK riding adventures. Blending the speed of a road bike with a more relaxed position and off-road focussed geometry means this bike can turn its hand to almost anything. With the smooth power of the Fazua motor driving you onwards, you can explore further and faster than ever before, confident that you can tackle any hidden hills. A lowered bottom bracket height gives excellent stability, and 38mm wide Schwalbe G-One Speed tyres provide maximum grip and confidence on or off-road. A wide range SRAM Apex 1 x 11-speed groupset give a great spread of gears for climbing or descending, and powerful SRAM Apex hydraulic disc brakes mean stopping is smooth and controlled. Pannier rack and mudguard ready, this bike is also a brilliant commuting option, meaning you can get to work in comfort with the help of the Fazua motor. What is Fazua Evation? The Fazua Evation e-bike drive system features a hidden, integrated motor capable of producing250W of power assistance and 60Nm of torque. This is combined with a removable 250Wh battery, which makes for easy charging without needing a plug where you store your bike. With a range of up to 56 miles* on the “Breeze Mode” setting, long rides are efficiently dealt with. Using a sophisticated combination of Torque, Speed and Cadence sensors, the Fazua system closely monitors your pedalling and feeds in power smoothly when you need it, stopping instantly when you stop pedalling. You’re always in complete control. There are 3 levels of assistance to choose from using the intuitive handlebar remote control, which also shows battery charge levels. Weighing in at just 4.6Kg for the whole system, the Fazua Evation system keeps the Boardman HYB-E and ADV-E e-bikes lightweight and practical to live with. The battery and motor can also be removed and replaced with a lightweight cover (sold separately), meaning you can ride your e-bike just like a normal bike with barely any weight penalty and no extra drivetrain resistance if you decide you don’t need any assistance. Fazua App By using the FAZUA app which is compatible with all Boardman eBikes, you can get access to all of the below that will assist your journey and will help you learn more about your training and your bike. The app includes the following features and is available on the Apple App Store and Google Play Store: GPS navigation and tracking Speedometer Technical overview, state of the battery Support, direct access to Fazua Service Interact, share your rides with friends Summary, analyse the collected data after your ride in detail *Range will vary based on rider weight and riding style

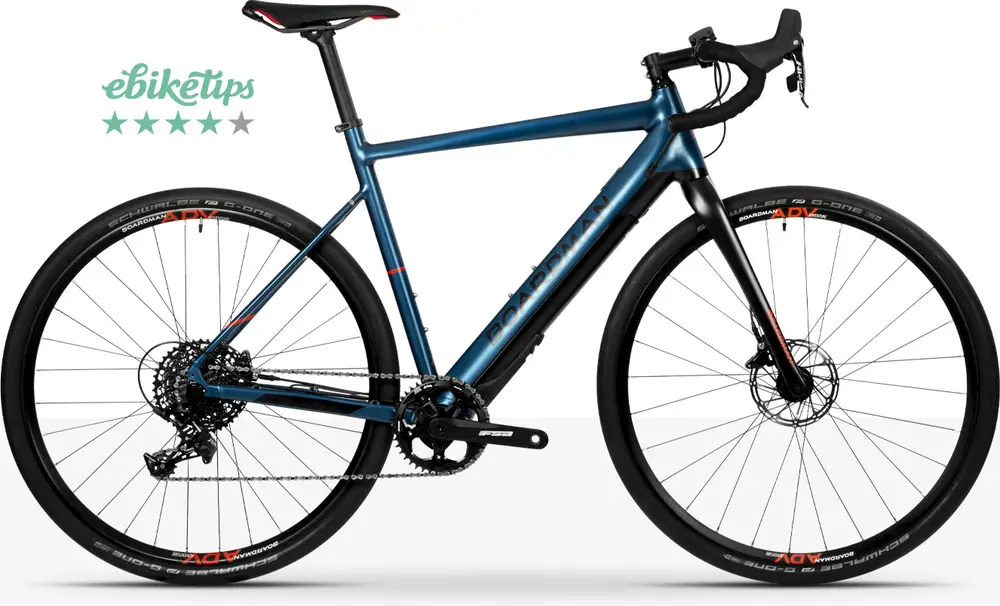

Boardman ADV 8.9e

An aluminum frame gravel e-bike with mid-range components and sram apex hydraulic disc brakes.

Weight	35.3 lbs
Frame	Aluminum
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	1 × 11
Groupset	Apex
Motor	Fazua 250W 55Nm mid-drive
Battery	Fazua
Brakes	SRAM Apex Hydraulic Disc

Frame	Boardman ADV-E 6061 Aluminium with Smooth Welds
Fork	Boardman ADV-E full Carbon, 1 1/2" to 1 1/8" tapered steerer
Bottom Bracket	Fazua Evation
Headset	FSA No. 42 ACB
Stem	Boardman Alloy, 80mm size SM & MD, 90mm size LG, 100mm size XL
Handlebar	Boardman Alloy, 400mm size SM, 420mm size MD, 100mm size LG & XL
Saddle	Fizik Tundra
Seatpost	Boardman Alloy 31.6mm Type: Rigid
Pedals	Wellgo with Toe Clip

Rear Derailleur	SRAM Apex 1
Front Derailleur	N/A
Crank	FSA CK-746 Fazua, 170mm FSA 42T
Shifters	SRAM Apex 1
Cassette	SRAM Apex PG1130 - 11-42T
Chain	KMC E11
Brakes	Front: SRAM Apex Hydraulic Disc, Rear: SRAM Apex Hydraulic Disc Type: SRAM Apex Hydraulic Disc

Rims	28h Front, 32h Rear
Front Hub	Boardman 6 Bolt Disc, 100x12mm Thru Axle front, 142x12mm Thru Axle rear
Rear Hub	Boardman 6 Bolt Disc, 100x12mm Thru Axle front, 142x12mm Thru Axle rear
Tires	Vittoria Terreno Zero 700 x 38mm

Motor	Fazua Evation
Battery	Fazua removable integrated battery

2024 BoardmanADV 8.9e

2024 Boardman
ADV 8.9e
