FSA BB386 Press Fit with 24mm Shimano adapter

Shimano 105 R7100 Hydraulic - 160mm Shimano RT-30 Rotor

C10 Carbon with Tapered Steerer - 100x12mm Thru Axle

Boardman ADV - C10 Carbon 142x12mm Thru Axle

Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop

FSA Orbit C-40 ACB, 1 1/8” - 1.5” Tapered, Integrated.

Boardman Asymmetric Adventure Tubeless Ready Rims

Overview
The ADV 9.0 Road takes our award winning gravel frameset and equips it for long fast road rides in exceptional comfort. Fast rolling but durable 32mm Vittoria Corsa N.EXT tyres and a Shimano 105 12 speed groupset combine with stable geometry and off-road compliance designed in to make a compelling case as the best long distance road bike on the market. Add mudguards to the hidden mounts and the ADV 9.0 Road makes a fantastic all condition companion, but the road focussed spec doesn't take away from the ADV Carbon's off road capabilities. Switch in some tyres with a bit more tread and you've got a gravel crushing speed machine on your hands. If you only have room for 1 bike in your collection, the ADV 9.0 Road is the one you need.At the heart of the bike is our award winning C10 Carbon frame - light and efficient at 990g, but with geometry and features which make long road rides a pleasure. A contoured seat tube and bow-curved seat stays deliver rear end compliance, absorbing impacts and reducing fatiguing vibration. A 71.5 degree head angle and 425mm rear centre measurement make handling calmer than a flighty road bike, but we've carefully chosen stem lengths and bar widths to put you in a efficient position for road riding. With clearance for 42mm 700c tyres, hidden mudguard mounts and multiple mounting points for bottles and accessories inside the front triangle as well as under the down tube and top tube, there's scope to customise the ADV 9.0 Road for however you want to ride it and for whatever you want to take with you.Shimano's 12 speed R7100 series 105 groupset needs no introduction - with super smooth shifting, a wide range cassette and high-performing hydraulic disc brakes, it is more capable than it has any right to be at this price point.Vittoria launched an entirely new production process for their high-performance road tyres with the Corsa N.EXT. Using a new, super supple nylon casing and their graphene infused rubber compounds has yielded a tyre fast enough to race on, but with durability and grip for all year round use too. Wheels are a custom-built Boardman ADV set up, with through-axle hubs laced with 28 Sapim Race spokes to 21mm internal width alloy rims, properly supporting the wider 32mm tyres in a combination you can really rely on. Add some gravel focussed tyres and you can unleash the ADV's off-road exploration potentialA Prologo Akero AGX saddle rounds out the package giving a comfortable ride whether you are sitting up enjoying the view or head down making your ride buddies legs hurt.
C10 Carbon 990-gram Frame & 420-gram Fork
Shimano 105 2x12 gearing is ideally suited to long distance road riding
Shimano 105 hydraulic disc brakes, 160mm rotor front and rear
Boardman ADV wheelset with Vittoria Corsa N.EXT 32mm tyres

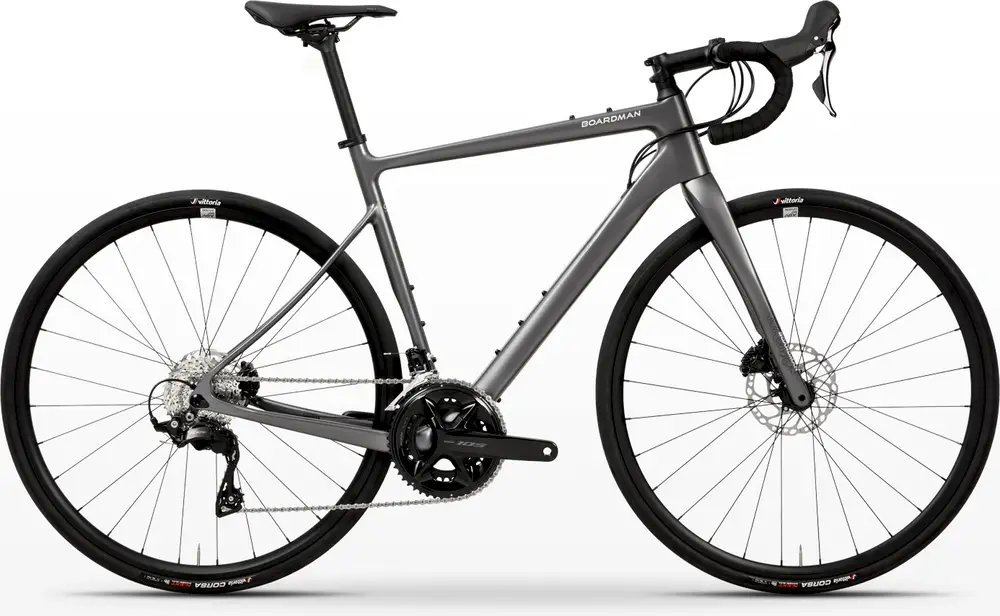

Boardman ADV-R 9.0

A carbon frame gravel bike with upper mid-range components and shimano 105 hydraulic disc brakes.

Weight	19.4 lbs
Frame	Carbon
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	2 × 12
Groupset	105
Brakes	Shimano 105 Hydraulic Disc

Frame	Boardman ADV - C10 Carbon 142x12mm Thru Axle BB Standard: BB86/BB92, Press Fit Tire Clearance: 42c
Fork	C10 Carbon with Tapered Steerer - 100x12mm Thru Axle
Bottom Bracket	FSA BB386 Press Fit with 24mm Shimano adapter
Headset	FSA Orbit C-40 ACB, 1 1/8” - 1.5” Tapered, Integrated.
Stem	Boardman Alloy, 31.8mm clamp
Handlebar	Boardman Alloy, 31.8mm clamp, 70mm reach, 120mm drop
Saddle	Prologo Akero AGX
Seatpost	Boardman Alloy, 27.2mm x 350mm Type: Rigid
Pedals	Wellgo alloy with straps, 9/16”

Rear Derailleur	Shimano 105 R7100 12 SPD
Front Derailleur	Shimano 105 R7100
Crank	Shimano 105 R7100 - 50/34
Shifters	Shimano 105 R7100 2x12
Cassette	Shimano CS-R7100 12 speed, 11-36 T
Chain	Shimano CN-M6100
Brakes	Shimano 105 R7100 Hydraulic - 160mm Shimano RT-30 Rotor Type: Shimano 105 Hydraulic Disc

Rims	Boardman Asymmetric Adventure Tubeless Ready Rims
Front Hub	Formula RX-512 front, RX-142 rear
Rear Hub	Formula RX-512 front, RX-142 rear
Tires	Vittoria Corsa N.EXT 700x32 - Tube type

2023 BoardmanADV-R 9.0

2023 Boardman
ADV-R 9.0
