2025 BiXS

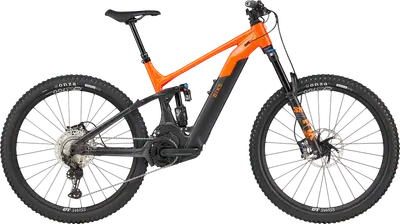

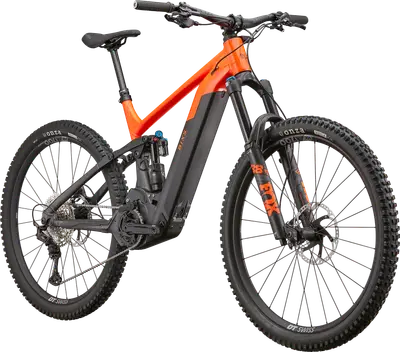

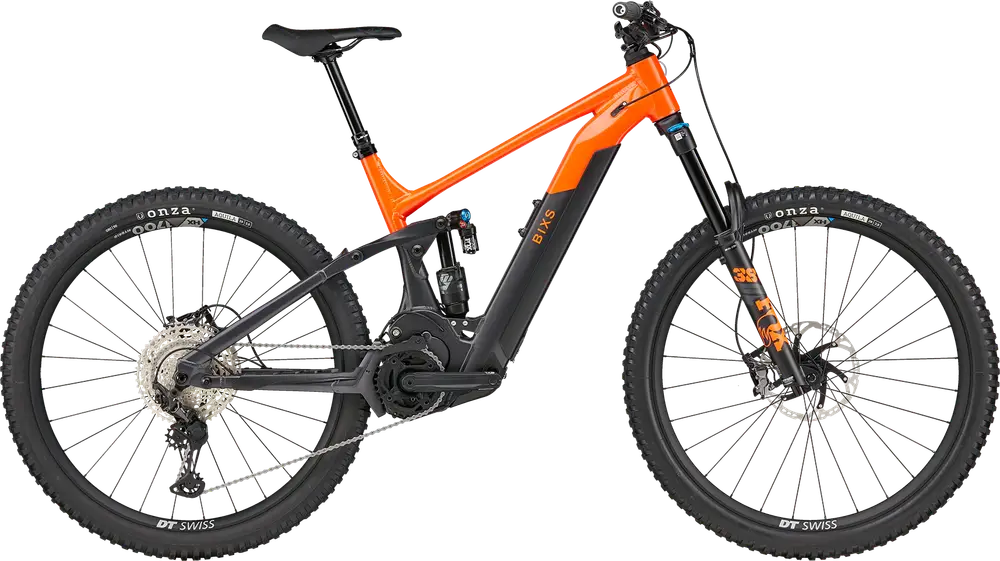

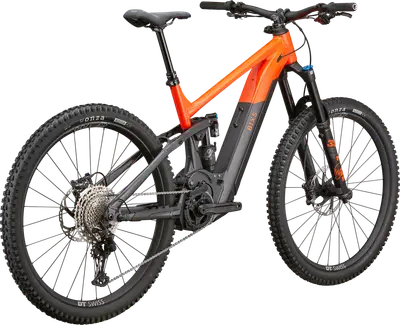

Lane-E16 Orange - Anthrazit

A 29″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range

Manufacturer Price

CHF 6,990($8,866)
FrameAluminum
SuspensionFull, 160 / 170mm
ForkFox Performance Float 38
ShockFox Float X2 Performance
Wheels29″
Drivetrain1 × 12
GroupsetXT
MotorYamaha 250W mid-drive
Battery630Wh
BrakesShimano XT Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

Lane-E16 Orange - Anthrazit

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Specs
Build
Frame

E-ENDURO GEOMETRY, ALLOY 6061, 160MM TRAVEL, ALLOY ROCKER, DROPOUT 148X12MM BOOST, 29"

Fork

FOX 38 FLOAT PERFORMANCE, 15X110MM AXLE, TAPERED, GRIP, TRAVEL: 170MM, 3-POS. LEVER

Travel: 170mm

Spring Type: Air

Shock

FOX FLOAT X2 PERFORMANCE, 2 POSITION LEVER, 205X65, TRUNNION MOUNT, HARDWARE: 20MMX8MM

Travel: 160mm

Headset

ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK

Stem

RACE FACE TURBINE R, 0°ANGLE, 35MM CLAMP

Handlebar

RACE FACE TURBINE R, 780MM/800MM, 35MM RISE, 8° BACKSWEEP, 35MM

Saddle

ERGON SM10 E-MOUNTAIN

Seatpost

KIND SHOCK LEV SI, S: 100MM, M: 125MM, L: 150MM, XL: 175MM TRAVEL, SHIMANO REMOTE LEVER, 31.6MM

Type: Dropper

Groupset
Rear Derailleur

SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED

Crank

FSA CK762 WIDER, ISIS, BOOST, STEEL CHAINRING, 34 TEETH

Shifters

SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV

Cassette

SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED

Chain

KMC E12 SPORT, EPT ANTI-RUST

Brakes

SHIMANO XT BR-M8120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203MM, R:203MM ROTORS

Type: Shimano XT Hydraulic Disc

Brake Levers

SHIMANO XT BL-M8100, ISPEC EV

Wheels
Front Hub

DT SWISS WHEELSET SPLINE HX-1700, 15X110MM THRU AXLE

Rear Hub

DT SWISS WHEELSET SPLINE HX-1700, 12X148MM BOOST, THRU AXLE

Tires

ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29X2.5", GRC

Electric Components
Motor

YAMAHA PW-X 3 SERIES, 250 WATT

Battery

SIMPLO, 36V, 630WH

Display

YAMAHA DISPLAY X

Rider Notes
Riders Also Viewed

First added April 12

Last updated October 12

Not listed for 223 days
