2025 BiXS

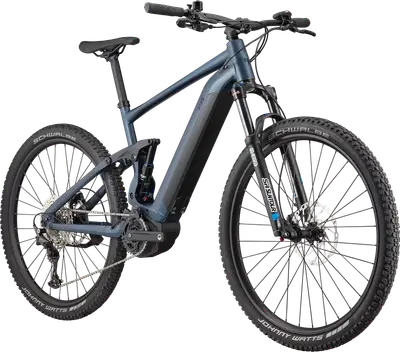

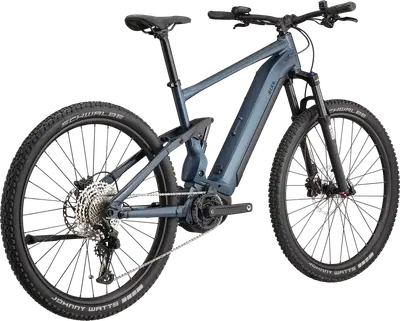

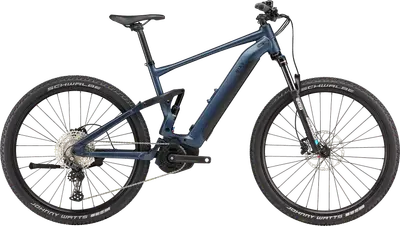

Access-E20 FS

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

CHF 5,190($6,618)
Weight57.1 lbs
FrameAluminum
SuspensionFull, 130 / 120mm
ForkSuntour XCR Air
ShockSuntour
Wheels29″ Aluminum
Drivetrain1 × 11
GroupsetDeore
MotorYamaha 250W mid-drive
Battery630Wh
BrakesShimano Deore Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Access-E20 FS
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

Access-E20 FS

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Access-E20 model range

View Comparison
Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

E-ACTIVE GEOMETRY, ALLOY 6061, 130mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"

Color: Ocean Blue

Fork

SUNTOUR XCR34 AIR 29", LOR, 15x110mm AXLE, TAPERED, 120mm TRAVEL, REBOUND LOCKOUT

Travel: 120mm

Spring Type: Air

Shock

SUNTOUR EDGE LOR, 205X60, TRUNNION MOUNT, HARDWARE: 21.8mmx8mm

Travel: 130mm

Headset

FSA NO.55R 1.5" / 558

Stem

BIXS AS-M03, 0°ANGLE, 31.8mm CLAMP

Handlebar

BIXS HB-RB12W RIZER BAR, 760mm, 9°ANGLE, 15mm RISE, 31.8mm

Saddle

ERGON SFC30

Seatpost

KIND SHOCK RAGEi, M & L: 125mm, XL: 150mm TRAVEL, SOUTHPAW-ALLOY REMOTE LEVER, 31.6mm

Type: Dropper

Groupset
Rear Derailleur

SHIMANO DEORE RD-M5100 SGS SHADOW PLUS DESIGN, 11-SPEED

Crank

FSA CK-320/ISIS, 34 TEETH

Shifters

SHIMANO DEORE SL-M5100

Cassette

SHIMANO CS-M5100, 11-51 THEETH, 11-SPEED

Chain

SHIMANO CN-HG900-11

Brakes

SHIMANO BR-MT410, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:200mm, R:180mm ROTORS

Type: Shimano Deore Hydraulic Disc

Brake Levers

SHIMANO BL-MT401

Wheels
Rims

ALEXRIMS EM-30, 32 HOLES, INNER WIDTH 30mm, 29"

Front Hub

SHIMANO HB-TC500-15-B, 32 HOLES, 15x110mm BOOST THRU AXLE

Rear Hub

SHIMANO FH-TC500-HM-B, 32 HOLES, 12x148mm BOOST THRU AXLE

Tires

SCHWALBE JONNY WATTS PERFORMANCE RACE GUARD, 29x2.35"

Electric Components
Motor

YAMAHA PW-X 2 SERIES, 250 WATT

Battery

SIMPLO, 36V, 630Wh

Display

YAMAHA Display A
