2024 BiXS

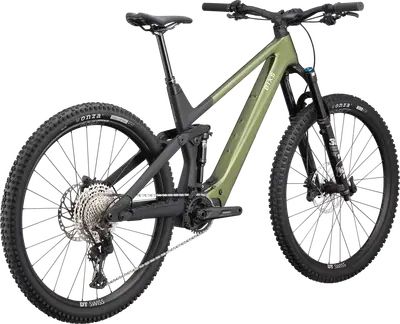

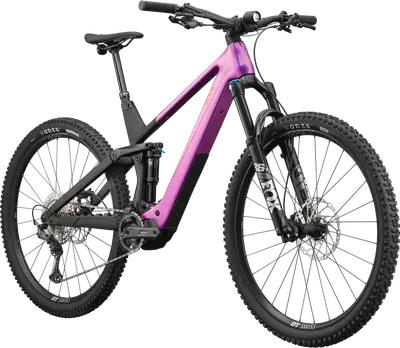

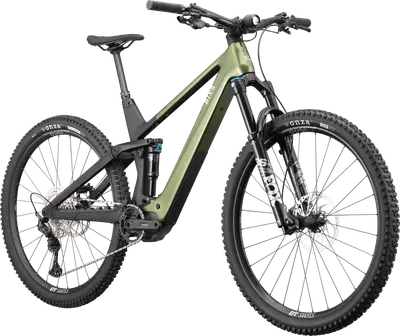

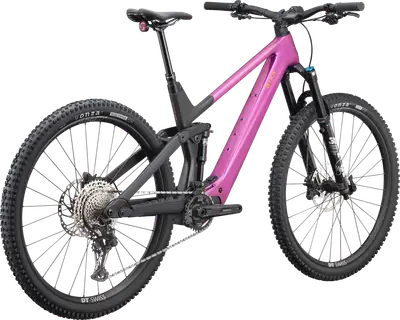

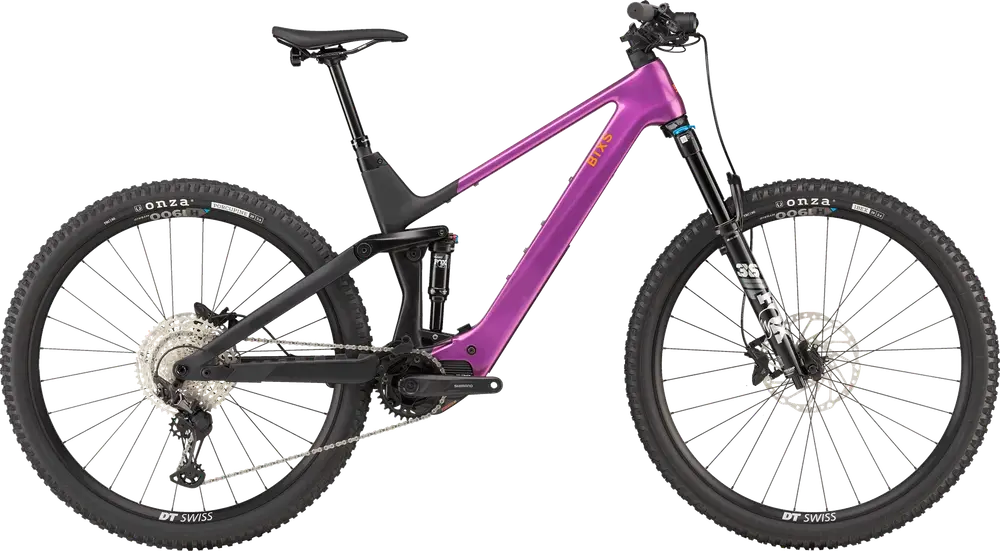

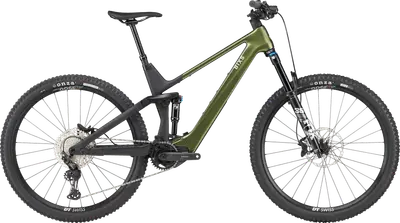

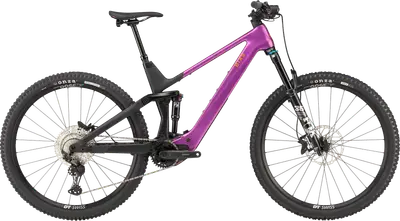

Sign-E23 Carbon

A 29″ carbon frame full suspension trail e-bike with high-end components.
Compare the full range

Manufacturer Price

CHF 6,990($8,866)
Weight43.0 lbs
FrameCarbon
SuspensionFull, 130 / 140mm
ForkFox Performance Float 36
ShockFox Float DPS Performance
Wheels29″
Drivetrain1 × 12
GroupsetXT
MotorShimano 600W 85Nm mid-drive
Battery400Wh
BrakesShimano Deore Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

Sign-E23 Carbon

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Sign-E23 model range

View Comparison
Geometry
Specs
Build
Frame

SIGN-E CARBON FULLSUSPENSION, 130mm TRAVEL, 12x148mm BOOST, POST MOUNT DISC

Colors: Black Purple; Black Olive

Fork

FOX 36 FLOAT PERFORMANCE GRIP, 140mm TRAVEL, 15x110mm, 44mm OFFSET

Travel: 140mm

Spring Type: Air

Shock

FOX FLOAT DPS PERFORMANCE, 3 POSITION LEVER, STANDARD MOUNT, 210x55mm, HARDWARE: 30/20x8mm

Travel: 130mm

Stem

SATORI URSA, 0°, 35mm CLAMP

Handlebar

BIXS RIZER BAR, 25mm RISE, 780mm

Saddle

BIXS-VL-4432

Seatpost

KIND SHOCK LEV-SI, ø31.6mm, S: 100mm, M: 125mm, L: 150mm, XL: 175mm

Type: Dropper

Groupset
Rear Derailleur

SHIMANO XT RD-M8100-SGS, 12-SPEED

Crank

SHIMANO FC-EM600, SM-CRE80-12, CL55, 34T

Shifters

SHIMANO XT SL-M8100-IR

Cassette

SHIMANO DEORE CS-M6100-12, 10-51T

Chain

SHIMANO XT CN-M8100

Chain Guide

SHIMANO CD-EM800, 34-38T

Brakes

SHIMANO DEORE BL-M6100, BR-M6120 4-PISTON

Type: Shimano Deore Hydraulic Disc

Wheels
Tires

ONZA PORCUPINE, 29x2.4", TRC, TUBELESS READY

Electric Components
Motor

SHIMANO EP801, 85NM

Battery

DARFON FULL INTEGRATED, 400Wh, RANGE EXTENDER CAPABLE FOR SIZE XL, L, M

Display

SHIMANO SC-EN600

Accessories
Lights

INFINI TURBO 5 MODES BATTERY LIGHT
