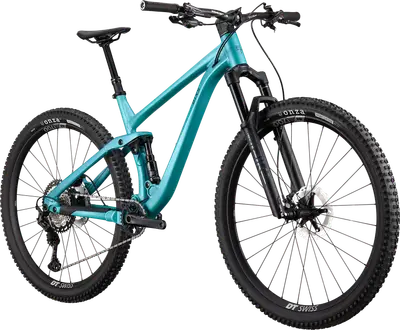

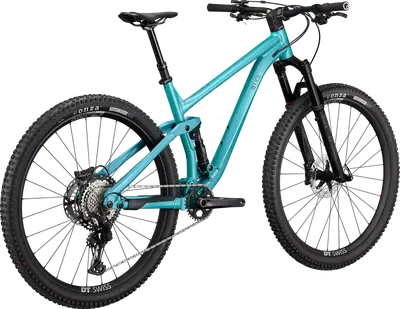

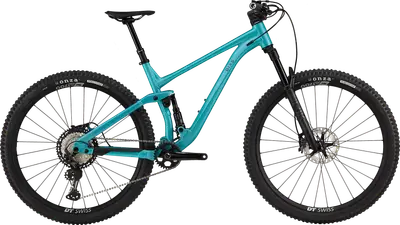

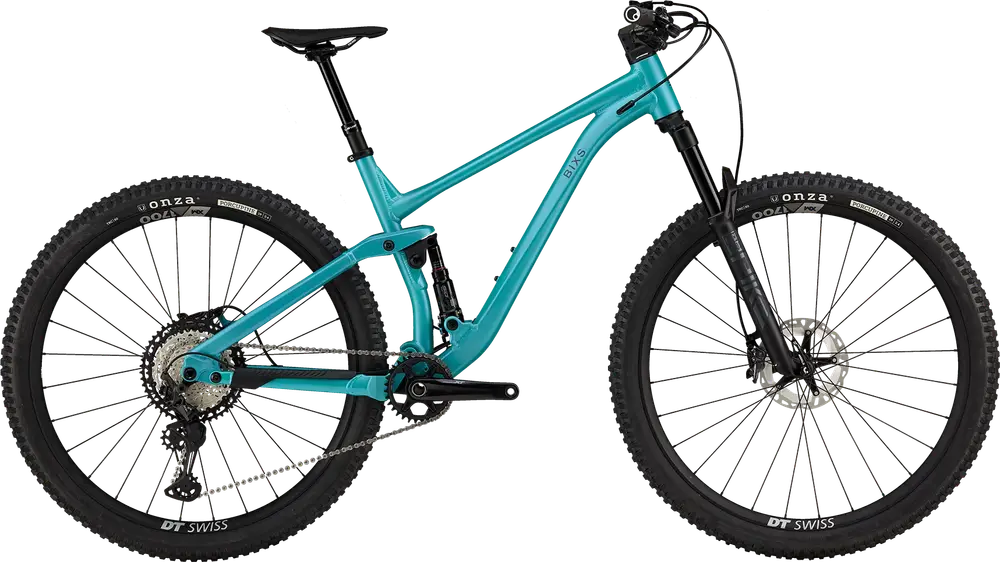

2024 BiXS

Sign 320

A 29″ aluminum frame full suspension trail bike with high-end components.

Manufacturer Price

CHF 4,490($5,695)
Weight32.4 lbs
FrameAluminum
SuspensionFull, 120 / 130mm
ForkRockShox Pike Select
ShockRockShox
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT
BrakesShimano XT Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Sign 320
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

Sign 320

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

TRAIL GEOMETRY, ALLOY 6061, 120mm TRAVEL, DROPOUT FOR 148x12mm BOOST, 29"

BB Standard: BSA, 73mm, Threaded

Color: Turquise

Fork

ROCK SHOX PIKE SELECT CHARGER, 15x110mm AXLE, TAPERED, 130mm TRAVEL, REBOUND, COMPRESSION

Travel: 130mm

Spring Type: Air

Shock

ROCK SHOX SID LUXE SELECT, 2 POS REMOTE, 165x45, TRUNNION MOUNT, HARDWARE: 22.2x8mm

Travel: 120mm

Bottom Bracket

BSA, 73mm, threaded

Headset

FSA NO.55R 1.5" / ICR / STD

Stem

FSA NS ICR STEM, 10° ANGLE, 31.8mm CLAMP

Handlebar

RACE FACE TURBINE, 760mm, 0.5" RSIER WIDE, 31.8mm

Saddle

BIXS VL-1A47

Seatpost

KIND SHOCK LEV SI, S: 100mm, M & L: 125mm, XL: 150mm TRAVEL, SHIMANO REMOTE LEVER, 31.6mm

Type: Dropper

Groupset
Rear Derailleur

SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED

Crank

SHIMANO XT FC-M8100-1, HOLLOWTECH II, 32 TEETH

Shifters

SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV

Cassette

SHIMANO CS-M8100, 10-51 THEETH, 12-SPEED

Chain

SHIMANO CN-M8100 12-Speed

Brakes

SHIMANO XT BR-M8120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:180mm, R:180mm ROTORS, ICE TECH

Type: Shimano XT Hydraulic Disc

Brake Levers

SHIMANO XT BL-M8100, ISPEC EV

Wheels
Rims

DT SWISS WHEELSET SPLINE XM-1700, 28 HOLES, 30MM INNER WIDTH 29"

Front Hub

DT SWISS WHEELSET SPLINE XM-1700, 28 HOLES, 15x110mmTHRU AXLE

Rear Hub

DT SWISS WHEELSET SPLINE XM-1700, 28 HOLES, 12x148mm BOOST, THRU AXLE

Tires

ONZA PORCUPINE, KEVLAR FOLDABLE, TUBELESS READY, 29x2.40"
