2024 BiXS

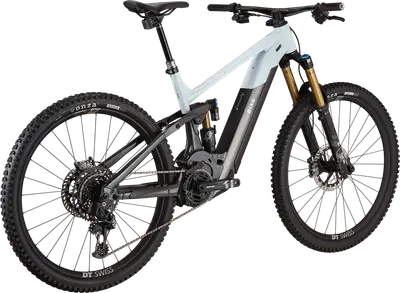

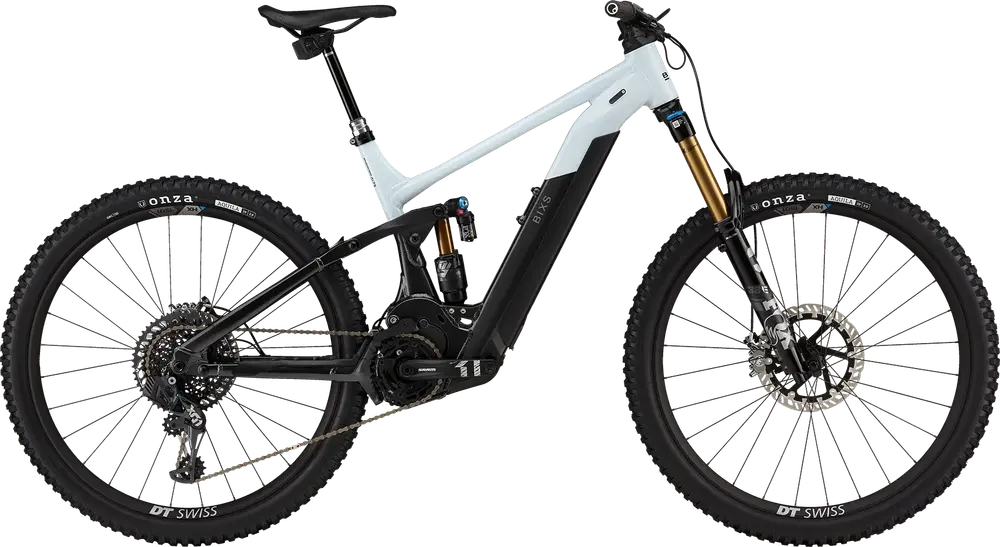

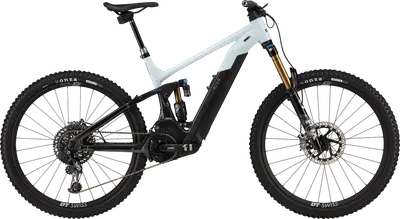

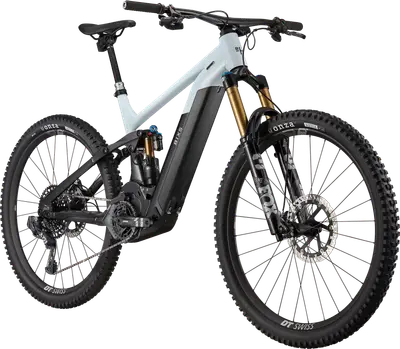

Lane-EX

A 29″ aluminum frame full suspension enduro e-bike with high-end components.
Compare the full range

Manufacturer Price

CHF 7,990($10,134)
Weight57.1 lbs
FrameAluminum
SuspensionFull, 160 / 170mm
ForkFox Factory Float 38
ShockFox Float X2 Factory
Wheels29″
Drivetrain1 × 12 Electronic
GroupsetX01 Eagle AXS, EX1
MotorYamaha 250W mid-drive
Battery630Wh
BrakesMagura MT7 Pro Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

Lane-EX

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Specs
Build
Frame

E-ENDURO GEOMETRY, ALLOY 6061, 160mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"

Color: White - Black

Fork

FOX 38 FLOAT FACTORY, KASHIMA, 15x110mm AXLE, TAPERED, GRIP2, TRAVEL: 170mm, 4-WAY ADJUSTABILITY

Travel: 170mm

Spring Type: Air

Shock

FOX FLOAT X2 FACTORY KASHIMA, 2 POSITION LEVER, 205x65, TRUNNION MOUNT, HARDWARE: 20mmx8mm

Travel: 160mm

Headset

ACROS CUSTOMIZED FOR INTEGRATED CABLE ROUTING, 1.5" BLOCK LOCK

Stem

FASERWERK FULL CARBON COCKPIT

Handlebar

FASERWERK FULL CARBON COCKPIT, 800MM, 9° ANGLE, 15MM RISE

Saddle

ERGON SM10 E-MOUNTAIN

Seatpost

ROCK SHOX REVERB AXS, S: 100MM, M: 125mm, L: 150mm, XL: 170mm TRAVEL, WIRELESS REMOTE, 31.6mm

Type: Dropper

Groupset
Rear Derailleur

SRAM X01 EAGLE AXS, 12-SPEED

Crank

SRAM EX1 EAGLE X-Sync, 34 TEETH

Shifters

SRAM EC AXS CONTROLLER RIGHT HAND ROCKER, 2 BUTTON, 12-SPEED

Cassette

SRAM XG-1275 EAGLE, 10-52 TEETH, 12-SPEED

Chain

SRAM CN-SX EAGLE

Brakes

MAGURA MT7, 4-PISTON HYDRAULIC DISC BRAKE, F:220mm, R:203mm ROTORS

Type: Magura MT7 Pro Hydraulic Disc

Brake Levers

MAGURA MT7, 1-FINGER HC ALUMINUM LEVER BLADE

Wheels
Front Hub

DT SWISS WHEELSET SPLINE HX-1501, 15x110mm THRU AXLE

Rear Hub

DT SWISS WHEELSET SPLINE HX-1501, 12x148mm BOOST, THRU AXLE

Tires

ONZA AQUILA, KEVLAR FOLDABLE, TUBELESS READY, 29x2.5",GRC

Electric Components
Motor

YAMAHA PW-X 3 SERIES, 250 WATT

Battery

SIMPLO, 36V, 630Wh

Display

YAMAHA Display X
