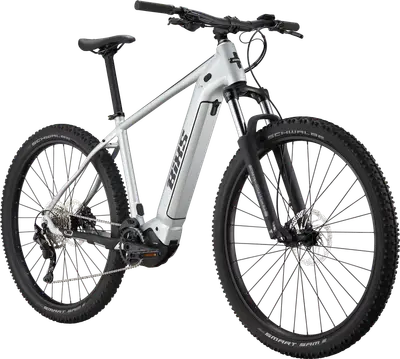

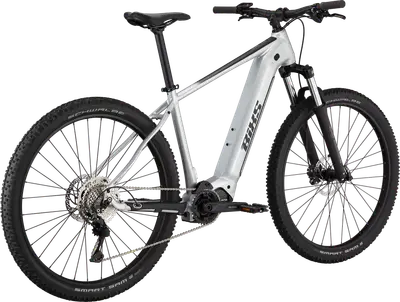

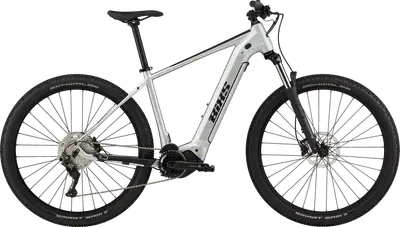

2024 BiXS

Core-E32

A 29″ aluminum frame hardtail trail e-bike with upper mid-range components.

Manufacturer Price

CHF 3,490($4,450)
Weight50.9 lbs
FrameAluminum
SuspensionHardtail, 120mm
ForkSuntour XCM
Wheels29″
Drivetrain1 × 10
GroupsetDeore
MotorShimano 250W 85Nm mid-drive
Battery500Wh
BrakesShimano Hydraulic Disc
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

Core-E32

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

E-SPORT GEOMETRY, ALLOY 6061 HYDROFORMED D.B. TUBES, HARDTAIL, DROPOUT 148x12mm BOOST, 29"

BB Standard: STEPS, Press Fit

Color: Silver

Fork

SUNTOUR XCM34 DS 29", COIL SPRING, BOOST, TAPERED, 15mm AXLE, 120mm TRAVEL

Travel: 120mm

Spring Type: Coil

Bottom Bracket

STEPS, press-fit

Headset

FSA NO.57E, 1-1/8" UPPER AND 1.5" LOWER BEARING WITH 12.3mm TOP COVER

Stem

BIXS 0°ANGLE, 35mm CLAMP

Handlebar

BIXS RIZER BAR, 760mm, 9° BACKSWEEP, 15mm RISE, 35mm

Saddle

BIXS VL-3533

Seatpost

BIXS, S & M: 350mm, OTHERS: 400mm, 31.6mm

Type: Rigid

Groupset
Rear Derailleur

SHIMANO DEORE RD-M5120 SGS SHADOW PLUS DESIGN, 10-SPEED

Crank

SHIMANO STEPS FC-EM600, 34 TEETH

Shifters

SHIMANO DEORE SL-M4100, WITH OPTICAL GEAR DISPLAY

Cassette

SHIMANO CS-M4100, 11-46 THEETH, 10-SPEED

Chain

SHIMANO CN-E6090-10 e-bike

Brakes

SHIMANO BR-MT200, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180mm, R:180mm ROTORS

Type: Shimano Hydraulic Disc

Brake Levers

SHIMANO BL-MT201

Wheels
Front Hub

SHIMANO HB-MT400-B, 32 HOLES, 15x110mm BOOST THRU AXLE

Rear Hub

SHIMANO FH-MT400-B, 32 HOLES, 12x148mm BOOST THRU AXLE

Tires

SCHWALBE SMART SAM K-GUARD, 29x2.6"

Electric Components
Motor

SHIMANO STEPS EP8, 250 WATT

Battery

DARFON, 36V, 500Wh

Display

SHIMANO SC-E5003
