2023 BiXS

SIGN-E33

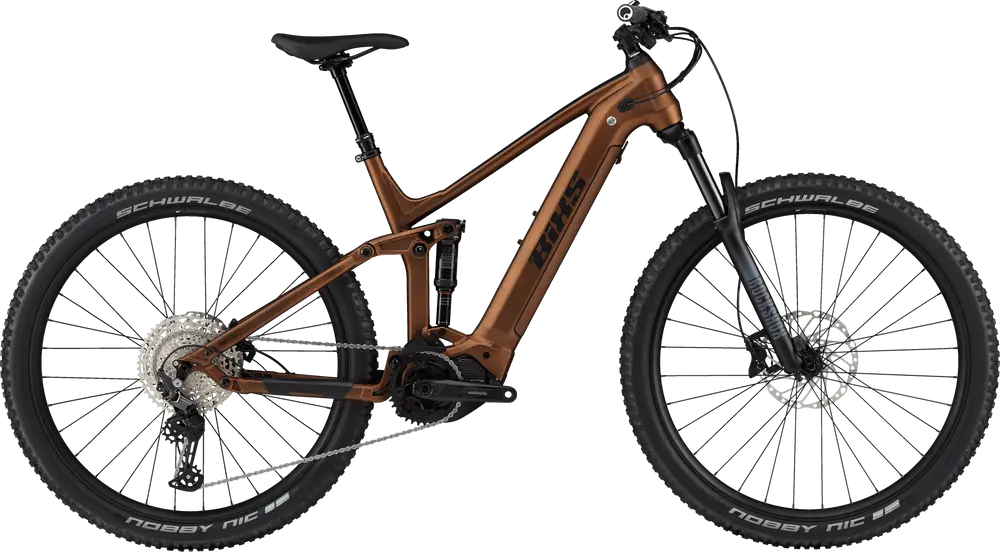

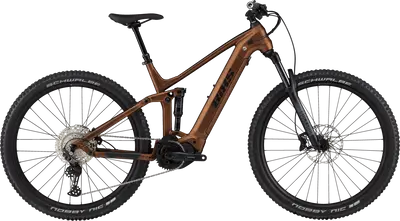

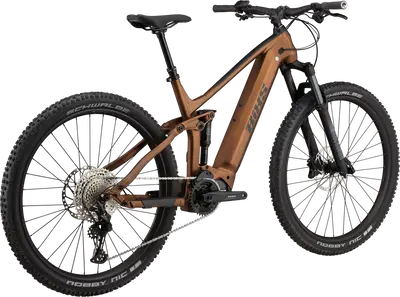

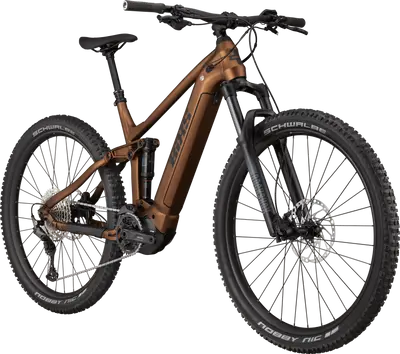

A 29″ aluminum frame full suspension trail e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

CHF 5,090($6,490)
FrameAluminum
SuspensionFull, 130 / 130mm
ForkRockShox 35 Silver
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetDeore
MotorShimano 250W 85Nm mid-drive
Battery500Wh
BrakesShimano Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

31 mph

SIGN-E33

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
MD

5'4" – 5'10"

LG

5'8" – 6'3"

XL

6'0" – 6'6"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eTRAIL GEOMETRY, ALLOY 6061, D.R.T. 130mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"

BB Standard: STEPS, Press Fit

Fork

ROCK SHOX 35 SILVER TK SOLO AIR 29", 15x110mm AXLE, TAPERED, 130mm TRAVEL, REBOUND, COMP. TO LOCK

Travel: 130mm

Spring Type: Air

Shock

130mm

Travel: 130mm

Bottom Bracket

STEPS, press-fit

Stem

BIXS 0°ANGLE, 35mm CLAMP

Handlebar

BIXS RIZER BAR, 780mm, 9° BACKSWEEP, 15mm RISE, 35mm

Saddle

BIXS VL-3533

Seatpost

KIND SHOCK RAGEi, 17": 100mm, 19": 125mm, 21": 150m TRAVEL, SHIMANO REMOTE LEVER, 30.9mm

Type: Dropper

Groupset
Rear Derailleur

SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED

Crank

SHIMANO STEPS FC-EM600, 36 TEETH

Shifters

SHIMANO DEORE SL-M6100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV

Cassette

SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED

Chain

SHIMANO CN-M6100 12-SPEED

Brakes

SHIMANO BR-MT420, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS

Type: Shimano Hydraulic Disc

Brake Levers

SHIMANO BL-M4100, ISPEC EV

Wheels
Rims

ALEXRIMS EM-35, 32 HOLES, INNER WIDTH 35mm, 29"

Front Hub

SHIMANO HB-MT410-B, 32 HOLES, 15x110mm BOOST THRU AXLE

Rear Hub

SHIMANO FH-MT410-B, 32 HOLES, 12x148mm BOOST THRU AXLE

Tires

SCHWALBE NOBBY NIC PERFORMANCE, ADDDIX SPEEDGRIP, 29x2.6"

Electric Components
Motor

SHIMANO STEPS EP8, 250 WATT

Battery

DARFON, 36V, 500Wh

Display

SHIMANO SC-E5003
