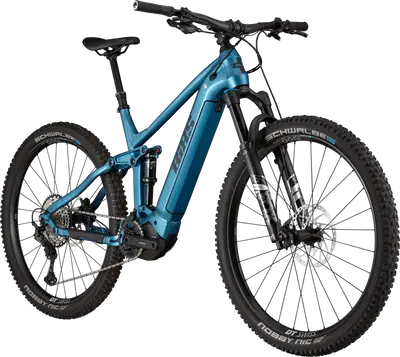

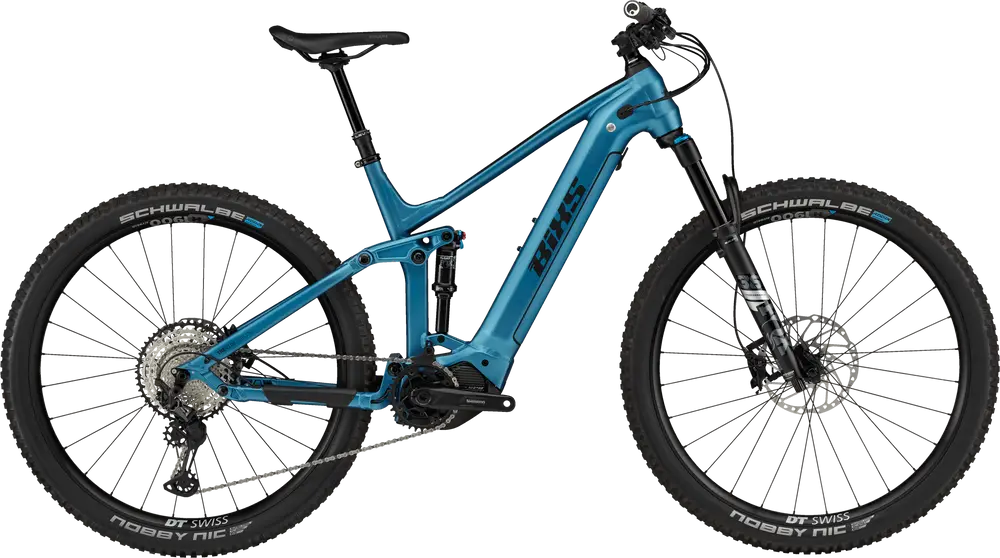

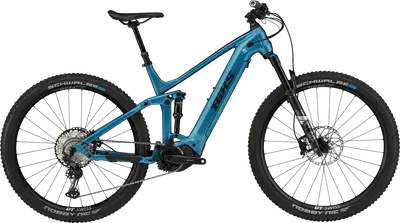

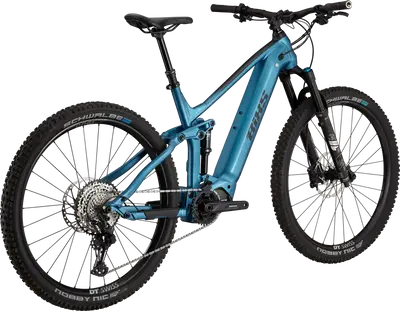

2023 BiXS

SIGN-E13

A 29″ aluminum frame full suspension trail e-bike with high-end components.

Manufacturer Price

CHF 6,790($8,658)
FrameAluminum
SuspensionFull, 130 / 130mm
ForkFox Performance Float 34
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT
MotorShimano 250W 85Nm mid-drive
Battery630Wh
BrakesShimano SLX Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

29 mph

SIGN-E13

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

eTRAIL GEOMETRY, ALLOY 6061, D.R.T. 130mm TRAVEL, ALLOY ROCKER, DROPOUT 148x12mm BOOST, 29"

BB Standard: STEPS, Press Fit

Fork

FOX 34 FLOAT PERFORMANCE 29", 15x110mm AXLE, TAPERED, GRIP, TRAVEL: 130mm, 3-POSITION LEVER

Travel: 130mm

Spring Type: Air

Shock

130mm

Travel: 130mm

Bottom Bracket

STEPS, press-fit

Stem

RACE FACE AFFECT R, 0°ANGLE, 35mm CLAMP

Handlebar

RACE FACE AFFECT R, 780mm, 20mm RISE, 8° BACKSWEEP, 35mm

Saddle

ERGON SM10 E-MOUNTAIN SPORT MEN

Seatpost

KIND SHOCK LEV SI, 15": 75mm, 17": 100mm, 19": 125mm, 21": 150m TRAVEL, SHIMANO REMOTE LEVER, 30.9mm

Type: Dropper

Groupset
Rear Derailleur

SHIMANO XT RD-M8100 SGS SHADOW PLUS DESIGN, 12-SPEED

Crank

SHIMANO STEPS FC-EM600, 34 TEETH

Shifters

SHIMANO XT SL-M8100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV

Cassette

SHIMANO CS-M7100, 10-51 THEETH, 12-SPEED

Chain

SHIMANO CN-M8100 12-SPEED

Brakes

SHIMANO SLX BR-M7120, 4-PISTON HYDRAULIC DISC BRAKE, RESIN PADS, F:203mm, R:203mm ROTORS

Type: Shimano SLX Hydraulic Disc

Brake Levers

SHIMANO SLX BL-M7100, ISPEC EV

Wheels
Rims

DT SWISS WHEELSET SPLINE H-1900 TLR, 28 HOLES, INNER WIDTH 30mm, 29"

Front Hub

DT SWISS WHEELSET SPLINE H-1900, 28 HOLES, 15x110mm THRU AXLE

Rear Hub

DT SWISS WHEELSET SPLINE H-1900, 28 HOLES, 12x148mm BOOST, THRU AXLE

Tires

SCHWALBE F: NOBBY NIC, R: HANS DAMPF, SUPER TRAIL, ADDIX SPEEDGRIP, TL EASY, 29x2.6"

Electric Components
Motor

SHIMANO STEPS EP8, 250 WATT

Battery

DARFON, 36V, 630Wh

Display

SHIMANO SC-EM800
