2023 BiXS

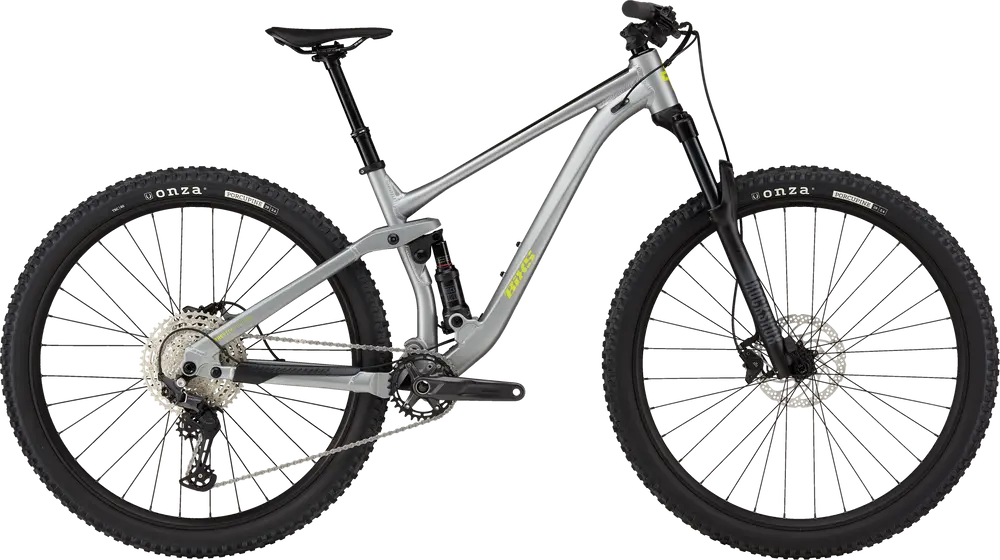

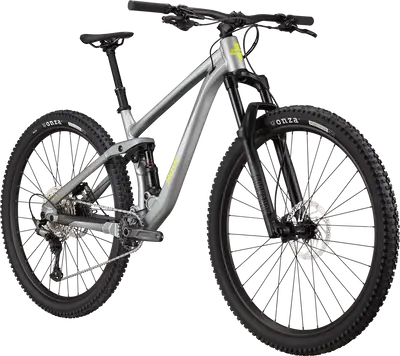

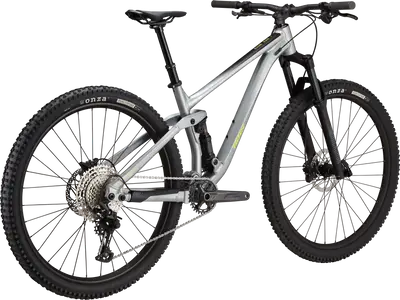

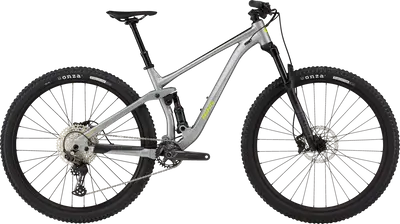

SIGN 520

A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range

Manufacturer Price

CHF 2,790($3,539)
FrameAluminum
SuspensionFull, 120 / 130mm
ForkRockShox Recon Silver RL
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetDeore
BrakesShimano Deore Hydraulic Disc
SeatpostDropper
View on bixs.comLearn about BiXS
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

SIGN 520

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full Sign model range

View Comparison
Sizing
SM

5'2" – 5'8"

MD

5'6" – 5'11"

LG

5'10" – 6'3"

XL

6'1" – 6'7"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

TRAIL GEOMETRY, ALLOY 6061, 120MM TRAVEL, DROPOUT FOR 148X12MM BOOST, 29"

Fork

ROCK SHOX RECON SILVER RL 29", 15X110MM AXLE, TAPERED, 130MM TRAVEL, REBOUND, COMP. TO LOCK

Travel: 130mm

Spring Type: Air

Shock

120mm

Travel: 120mm

Stem

BIXS S-104, 7°ANGLE, 31.8mm CLAMP

Handlebar

BIXS RIZER BAR, 760mm, 9° BACKSWEEP, 15mm RISE, 31.8mm

Saddle

BIXS VL-1A47

Seatpost

KIND SHOCK RAGEI, S: 100MM, M & L: 125MM, XL: 150MM TRAVEL, SOUTHPAW REMOTE LEVER, 31.6MM

Type: Dropper

Groupset
Rear Derailleur

SHIMANO DEORE RD-M6100 SGS SHADOW PLUS DESIGN, 12-SPEED

Crank

SHIMANO FC-MT511, 2-PIECE CRANKSET, 32 TEETH

Shifters

SHIMANO DEORE SL-M6100, DIRECT ATTACH TO BRAKE LEVER, ISPEC EV

Cassette

SHIMANO CS-M6100, 10-51 THEETH, 12-SPEED

Chain

SHIMANO CN-M6100 12-SPEED

Brakes

SHIMANO DEORE BR-M6120/BR-M6100, HYDRAULIC DISC BRAKE WITH RESIN PADS, 180mm ROTORS

Type: Shimano Deore Hydraulic Disc

Brake Levers

SHIMANO BR-MT410, HYDRAULIC DISC BRAKE WITH RESIN PADS, F:180MM, R:180MM ROTORS

Wheels
Rims

ALEXRIMS MD-30, 32 HOLES, INNER WIDTH 30mm, 29"

Front Hub

SHIMANO HB-MT410-B, 32 HOLES, 15x110mm BOOST THRU AXLE

Rear Hub

SHIMANO FH-MT410-B, 32 HOLES, 12x148mm BOOST THRU AXLE

Tires

ONZA PORCUPINE, KEVLAR FOLDABLE, TUBELESS READY, 29X2.40"
